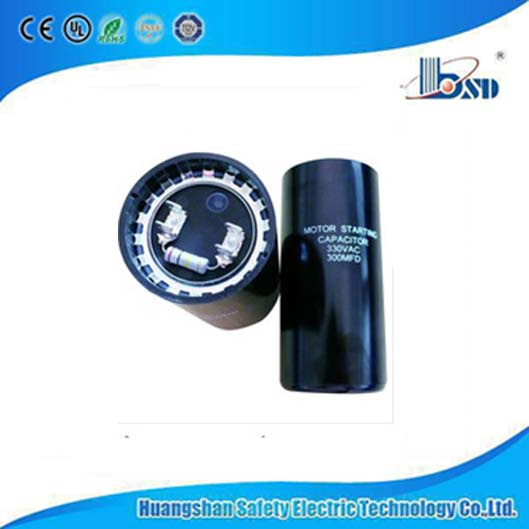

Alluminum Electrolytic Capacitor with ANSI/Eia-463 -a Standard

Name: Alluminum Electrolytic Capacitor with ANSI/Eia-463 -a Standard
Brand: all-electronics-online.com
SKU: 814416915
Availability: InStock
Rating: 4.3 (106 reviews)

Price:	US $ 0.35-4.25/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CD60B
Rated Volatage:	110-330VAC
Capacitance Range:	21-1536UF
Service:	OEM and ODM
Delivery Time:	2 Weeks
Standard:	According to ANSI/Eia-463 -a
Temperature:	-40-65
Type:	Aluminum Electrolytic Capacitor
Application:	Air Conditioner
Package Type:	Surface Mount
Capacitance:	21-1536UF

Product Description

1.CBB60B TYPE product is a kind of replacement developed according to standard and dimension of American ANSI/EIA-463.

2.The case of capacitor is formed and pressed by phenolic resin therefore good insulation and can bear outer force from all directions.For adopting quick terminals,more convenience for installing.

3.The parameter of this kind of products are the same with CBB60A;The dimension of this kind of products are the same with CD60B;

4.It used of double value capacitors of Motors.It can be used with CD60B type starting capacitor,improve motor grade greatly and good frame.

Environment Temperature	-40~+65ºC
Rated Voltage(UR)	110~330VAC
Capacitance Range(CR)	21~1536μF
Capacitance Tolerance	0~+20%
Dissipation Factor(tg δ)	Tg δ< 0.10 tg δ< 0.15 (20ºC,100Hz)
Load Life	According to the difference working voltage and capacitance,alternation 0.5 - 4 minute turn on 1 time for second, 12500 ~ 50000 times. According to the ANSI/ EIA-463-A standard.
Surge Voltage between lugs	Applying 1.25 times rated voltage for 2 seconds
Surge Voltage between lugs and case	2000VAC 10 seconds non-broken down

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
