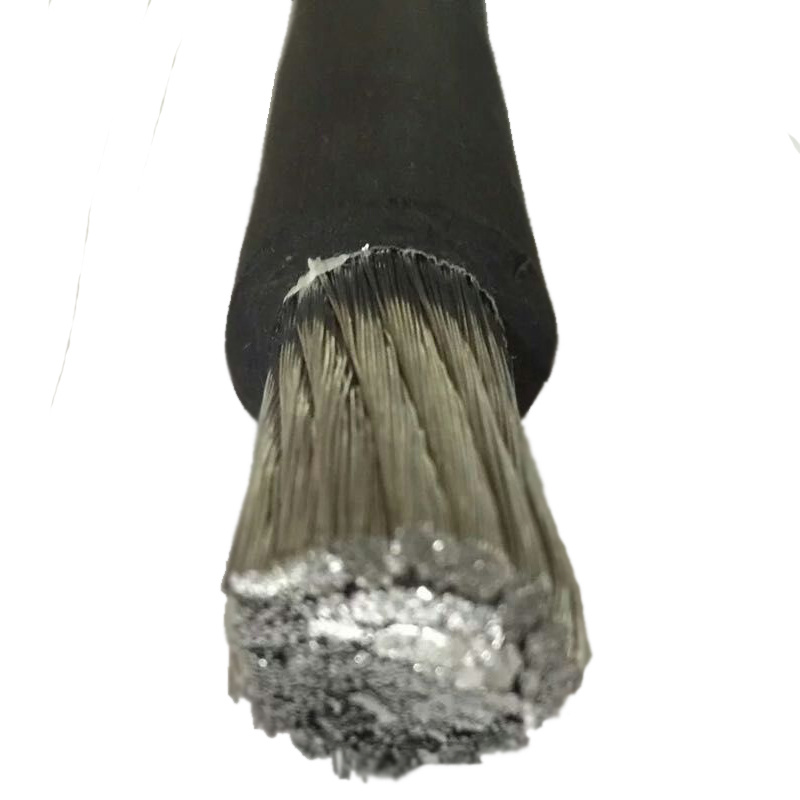

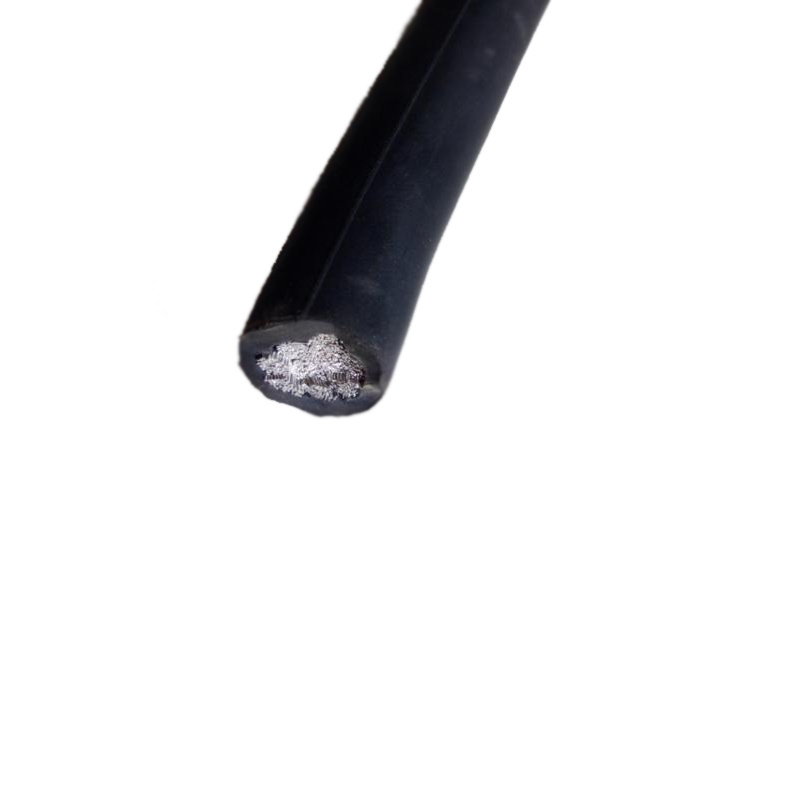

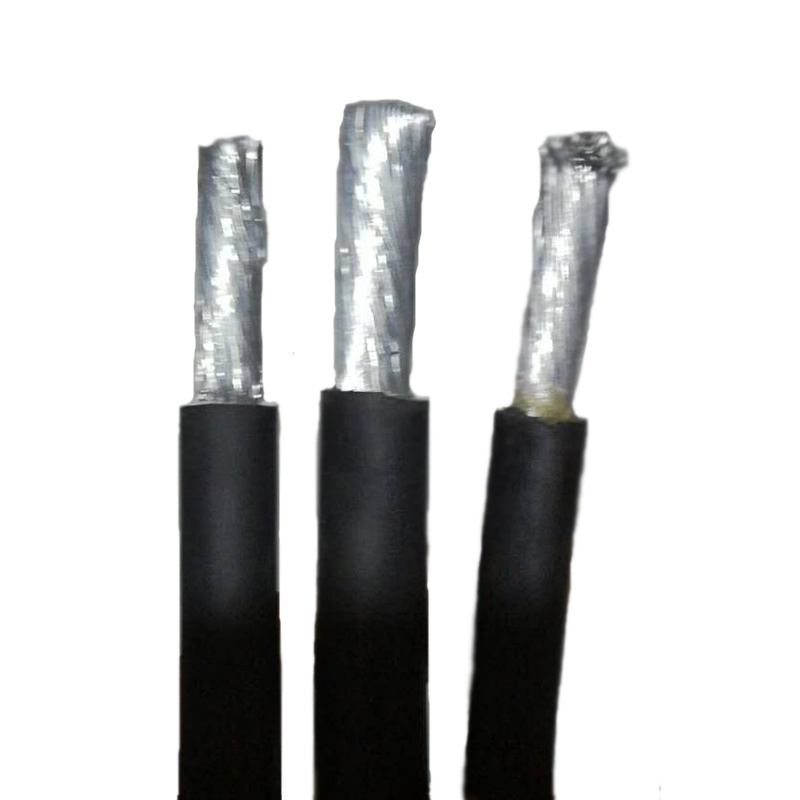

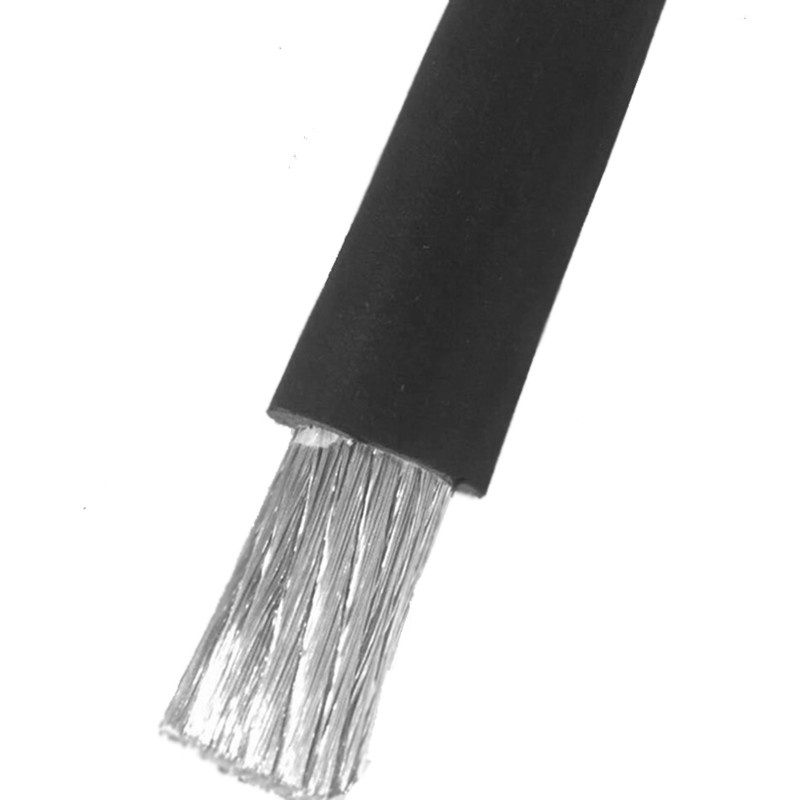

Aluminium Alloy Yh Type High Strength Rubber Cable

Name: Aluminium Alloy Yh Type High Strength Rubber Cable
Brand: all-electronics-online.com
SKU: 828240535
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 0.21/Meter
Min Order:	200/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	YH YHF
Delivery Time:	15 Days After Confirm The Order
Material:	Aluminium Core
Standard:	ISO9001:2008
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper Clad Aluminum
Insulation Material:	Rubber
Certification:	RoHS
Range Of Application:	No
Brand:	No

Product Description

Product description:

Specifications

Flexible rubber welding cable wire
1.Conductor material:copper
2.Type:low voltage
3.Insulation material:rubber

Flexible rubber welding cable wire introduction

The cable can be used in he connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200 V and the pulsand DC peak value is 400V.The long-time permissible working temperature of cable is not more than 65C.

Model, Names Main applications and Work In the Temperature

Model	Name	Main applications	Working temperature of core ≤⁰C
YH	Natural Rubber Sheath for Welding Cable	Always used indoor	65
YHF	Neoprene Rubber Sheath Welding Cable	Always used outdoor	65
YHF	Synthetic elastomer Sheath Welding Cable	Always used outdoor	65

Standards: IEC60245

Specifications, Size, Weight and Technical Data

Conductor Nominal Section (mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)		20oC Conductor Resistance≤(Ω/km)	Reference Weight(kg/km)
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Min	Max	20oC Conductor Resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.129	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74
