| Prod Model: |
ABC Cable |
| Insulation: |
PVC/PE/XLPE |
| Factory Area: |
40000m2 |
| Function: |
Ground Buried |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PE |
| Certification: |
UL |
| Sheath Material: |
None |
| Wire Core Material: |
Aluminium |
| Model: |
Jklv |
| Brand: |
Huatong |
Product Description

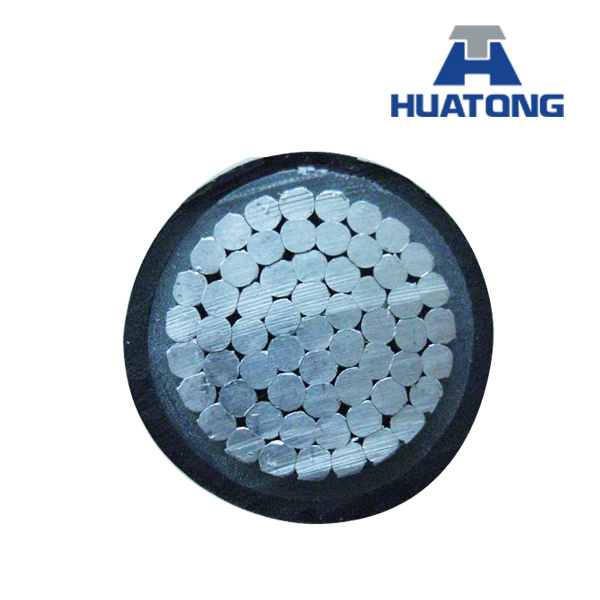

Overhead stranded conductor ABC cable with AAC ACSR AAAC Neutral Message
1. Application of Service Drop Cable
Service Drop Cable(ABC CABLE) are mainly used for electric power tranmission, rebuilding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
2.Types of Service Drop Cable:
Service Drop Cable(ABC CABLE) covers mainly three types:
Duplex Service Drop Triplex Service Drop Quadruplex Service Drop
2.1 Duplex Service Drop
Applications
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 maximum.
2.2 Triplex Service Drop
Applications
To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation.
2.3 Quadruplex Service Drop
Standards:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
Item
|
Phase Conductor
Size AWG
|
Phase
Conductor
Stranding
|
Phase Conductor
Insulation Thickness
|
Bare Neutral
Messenger
Size AWG
|
Bare
Neutral Strand
|
Bare Neutral messenger Breaking Strength
|
Weight Per 1000ft - XLP
|
Weight Per 1000ft - Poly
|
Rating - XLP
|
Rating-Poly
|
Pekingese
|
6
|
Solid
|
45 mls
|
6
|
7/w
|
563 Lbs
|
63.5 Lbs
|
61.7 Lbs
|
70 Amps
|
70 Amps
|
Collie
|
6
|
7/w
|
45 mls
|
6
|
7/w
|
563 Lbs
|
66.8 Lbs
|
63.1 Lbs
|
70 Amps
|
70 Amps
|
Dachshund
|
4
|
Solid
|
45 mls
|
4
|
7/w
|
881 Lbs
|
95.5 Lbs
|
93.4 Lbs
|
90 Amps
|
90 Amps
|
Spaniel
|
4
|
7/w
|
45 mls
|
4
|
7/w
|
881 Lbs
|
100.5 Lbs
|
95.4 Lbs
|
90 Amps
|
90 Amps
|
Doberman
|
2
|
7/w
|
45 mls
|
2
|
7/w
|
1350 Lbs
|
152.7 Lbs
|
145.7 Lbs
|
120 Amps
|
120 Amps
|
Malemute
|
1/0
|
19/w
|
60 mls
|
1/0
|
7/w
|
1990 Lbs
|
242.6 Lbs
|
234.2 Lbs
|
160 Amps
|
160 Amps |
Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.
Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.
In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
