Aluminium Conductor Steel Reinforced ACSR Cable

Aluminium Conductor Steel Reinforced ACSR Cable
Price: US $ 0.1-1/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Aluminium Conductor Steel Reinforced ACSR Cable
Product Name: ACSR Bare Overhead Conductors
Rated Voltage: 0.6/1 Kv
Conductor: Steel + Aluminum
Origine: Sahndong, China
Type: Bare Conductor
Usage: Overhead Conductors
Certificates: ISO CCC Ce RoHS GB/T
Packaging: Wooden Drum
Shipping: 7-10 Working Days
MOQ: 2000
Application: Overhead
Current: DC & AC
Insulation Material: Bare
Certification: GB/T
Voltage: 1kv 10kv
Sheath Material: Bare
Wire Core Material: Steel +Aluminum
Model: ACSR
Brand: Chang Qing Teng

Product Description

ITEM NAME : Aluminium Conductor Steel Reinforced ACSR Cable

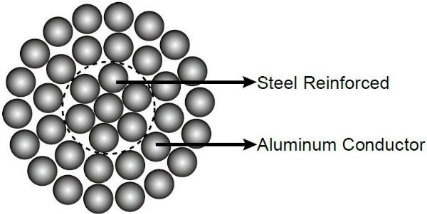

Construction

1. Applications

ACSR conductors have been widely used in power transmission lines with various voltage levels,because
they have such good characteristics as simple structure,convenient installation and maintenance,low cost
large transmission capacity.And they are also suitable for laying across rivers valleys and the places where
special geographical features exist.



2. Service Performance
2.1.The permissible long-time operating temperature for aerial conductor is 70oC.
2.2.Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the
biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
2.3.When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the
force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should
be painted by moisture-proof varnish in order to protect it from corrosion.
2.4.Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible
distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.


3. Product Performance
3.1.The electrical performance of ACSR is indicated in DCΩ/km (20oC).The resistivity of the hard
aluminum wire for stranded wires is not greater than 28.264 nΩ. m of international standard value.
3.2.The rated tensile strengh of ACSR is denoted with sum of all aluminum conductorstensile strength and
steels tensile strength.
a.The tensile strength of all aluminum conductors is denoted with the result of all cross sections of aluminum
conductors multiplied by min.tensile strength of corresponding size specified in the standard for aluminum wire.
b.The tensile strength of all steel wire is denoted with the result of all cross sections of steel wires multiplied
by the stress at 1% elongation of corresponding size specified in the standard for steel wire.


4. Material Standard
4.1.The hard aluminum conductor used for ACSR conforms to the standard GB/T 1179-2008(equivalent to
IEC 61089).
4.2.The zinc coated steel wire used for ACSR conforms to IEC 61089.
4.3.Production can be arranged according to customers requirements for material standard,etc.

Product NameAluminium Conductor Steel Reinforced (ACSR)
MaterialAluminium
ColorSilver
StandardGB/T 1179-2008(equivalent to IEC 61089),ASTM,CSA,DIN
ApplicationOverhead,construction,power station
JacketBare
ModelACSR
OriginDezhou ,China

ASTM B549     ACSR/AW
SizeStranding & Wire
Diameter
Approximate
Overall
Diameter
Approximate
weight
DC
Resistance
at 20ºC
Code
name
AluminiumAW
Cmils or
AWG
mm2No.mmNo.mmmmkg/kmΩ/km
666600337.27244.2372.8225.381221.90.08576Flamingo
666600338.26264.0773.1625.761298.60.08576Gannet
715500363.27244.3972.9226.321314.60.07989Stilt
715500361.93264.2173.2826.681392.10.07992Starling
715500362.06303.92192.3527.431548.30.08009Redwing
795000402.33244.6273.0827.721457.50.0719Cuckoo
795000402.56264.4473.4528.111546.10.07192Drake
795000401.86363.7713.7726.391184.50.07156Coot
795000403.77453.3872.2527.031300.50.07192Tern
795000402.33543.0873.0827.721457.50.07192Condor
795000403.84304.14192.4828.961726.10.07208Mallard
900000455.50453.5972.428.741468.90.06356Ruddy
900000456.28543.2873.2829.521653.00.06352Canary
954000484.61364.1414.1428.981428.50.0593
954000483.84453.772.4729.611559.70.05994Rail
954000484.53543.3873.3830.421755.30.05994Cardinal
1033500522.79364.314.330.101541.00.055
1033500523.87453.8572.5730.811688.70.05531Ortolan
1033500522.51543.5173.5131.591892.90.05531Curlew
1113000565.4945472.6631.981820.90.05161Bluejay
1113000565.03543.65192.1932.852037.40.05161Finch
1192500605.76454.1472.7633.121951.90.0482Bunting
1192500602.79543.77192.2733.972177.20.0482Grackle
1272000646.02364.7814.7833.461904.20.0445
1272000644.40454.2772.8534.172077.10.04518Bittern
1272000645.08543.9192.3435.102326.10.04518Pheasant
1351500684.24454.472.9335.192204.10.04259Dipper
1351500685.39544.02192.4136.172470.50.04259Martin
1431000725.27454.5373.0236.242337.00.04016Bobolink
1431000726.92544.14192.4837.242619.20.04016Plover
1510500764.20454.6573.137.202462.50.03802Nuthatch
1510500766.06544.25192.5538.252762.30.03802Parrot
1590000807.53454.7873.1838.222600.50.03612Lapwing
1590000806.23544.36192.6239.262909.20.03612Falcon
1780000903.18843.7192.2240.702985.40.03228Chukar
21560001092.84844.07192.4444.763611.30.02645Bluebird
21670001099.76724.4172.9444.103355.00.02629Kiwi
23120001171.42764.43192.0745.793663.20.02468Thrasher
25150001274.05764.62192.1647.763984.60.02269Joree
