| Prod Model: |
TKM-MS-010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
as Per Request |
| Quality: |
Top Quality |
| Environmental Friendly: |
Raw Material Pass RoHS, SGS Test |
| Touch Feeling: |
Excellent Touch Feeling |
| Exterior: |
Good Looking |
| Type: |
Rigid |
| Application: |
Machines |
| Brand: |
Tkm |
| Certification: |
RoHS |
| Material: |
Aluminium Plate |
| Contact Type: |
Directly |
Product Description

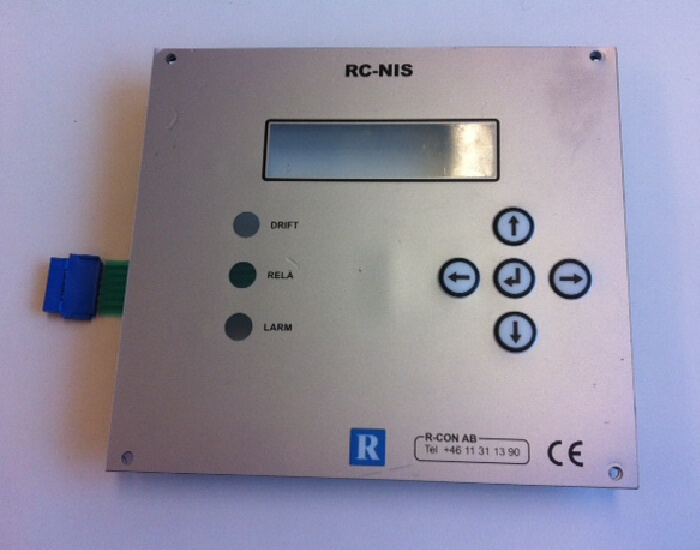

Aluminium Plate High Reliability LED Circuit Board Overlay Membran SwitchFlexible circuits:1.100% quality tested
2. Long life expectancy
3. LED inside( bi-color)
4. High reliability aluminium plate
Detailes:Thickness: 0.5, 0.7, 0.8 and 1.0mm
LED windows: Clear or translucent with all colors
Embossed keys: Polydome and rim
Metal dome: Brand of nicomatic and innovan, nickel and gold plated

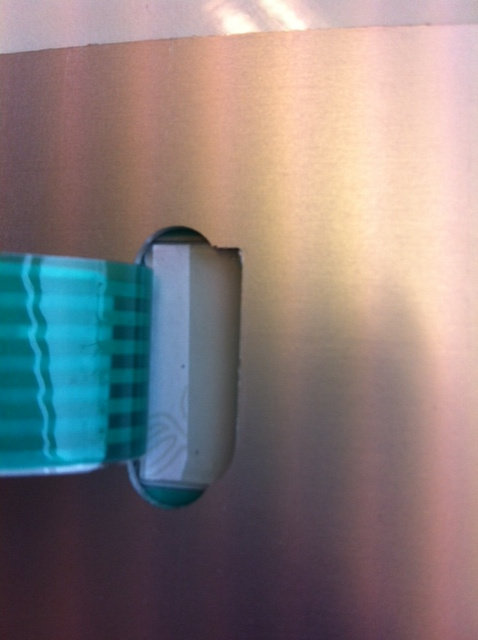

Tail: With mylar and UV

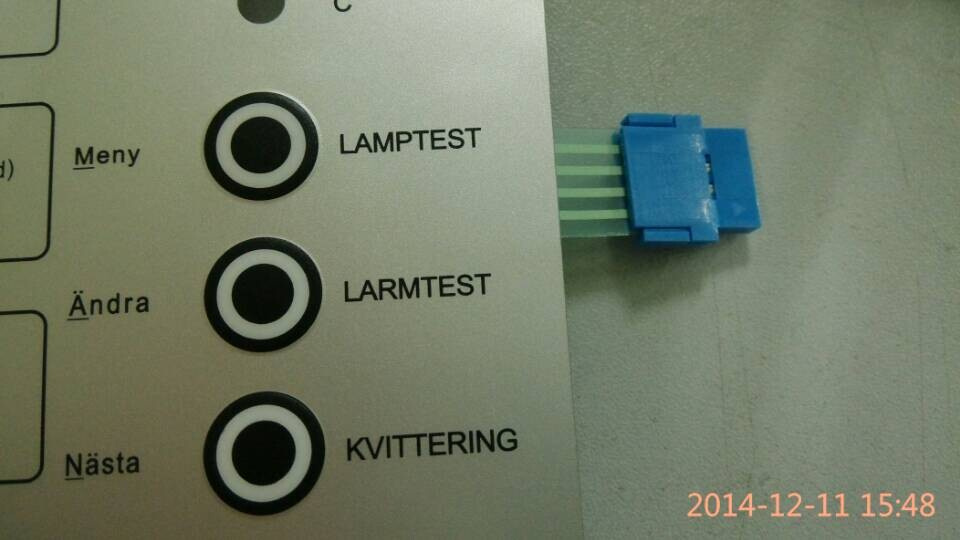

Connector: Nicomatic, fci, molex and zif
Adhesive: 3m 467, 468, 3m9495, 3m7945 and 3m7959
Competitive Advantage: 1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
Customized specification is available and keys can make different shapesDescription: We have more than ten years experience of design and manufacturing in Membrane Switche and Silicone Rubber Keypads.
Mask surface label, nameplate label, silk-screen label, panel labels, touch membrane switches, membrane switch has been widely used in the intelligent electronic measuring instruments, medical equipment, computer control, numerical control machine tools, electronic weighing apparatus, post and telecommunications, copy machine, refrigerator, microwave oven, electric fans, washing machines, induction cooker, rice cooker, electronic game machines, all kinds of industrial and household appliances remote control lamp products
We are very proud that we have been providing our best service to more than 100 stable customers all over the world.

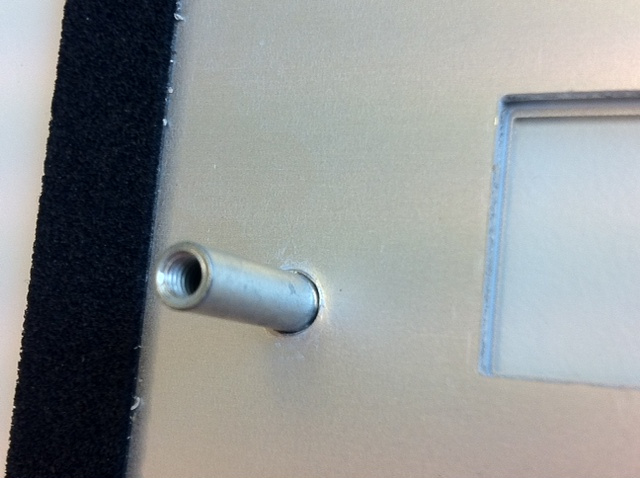

High reliability rivet
Control Feel Smooth metal dome
|
|
Technical Specification Of Membrane Swithc |
|
|
wire lead resistance: |
<1Ω/CM |
|
Life time: |
>1 Million times |
|
rated current: |
25-100mA,0~30V DC |
|
Operation Temperature: |
-104°F~158°F |
|
Rated Voltage: |
<50V, DC |
|
Operation Humidity: |
at104°F,<98%RH |
|
Insulation resistance: |
<100MΩ,250V DC |
|
Dome springback time: |
<5 msec |
|
Switch travel: |
Flat Type 0.05-0.3mm |
|
Base Material voltage withstand: |
1500 V DC |
|
tactile type:0.3-1.5mm |
|
Tail flexiblility: |
any angle within 180 degree |
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
