| Prod Model: |
XJY-PCB 076 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Thickness: |
1oz |
| PCB Solder Mask: |
White |
| PCB Silkscreen: |
Black |
| PCB Board Thickness: |
1.6mm |
| PCB Surface Finishing: |
HASL |
| Min Hole Size: |
0.2mm |
| Min Line Width: |
0.15mm |
| Size: |
10-1000mm |
| Delivery Time: |
1-7days |
| Pack: |
Vacuum Packing |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V2 |
| Dielectric: |
AIN |
| Material: |
Aluminum |
Product Description

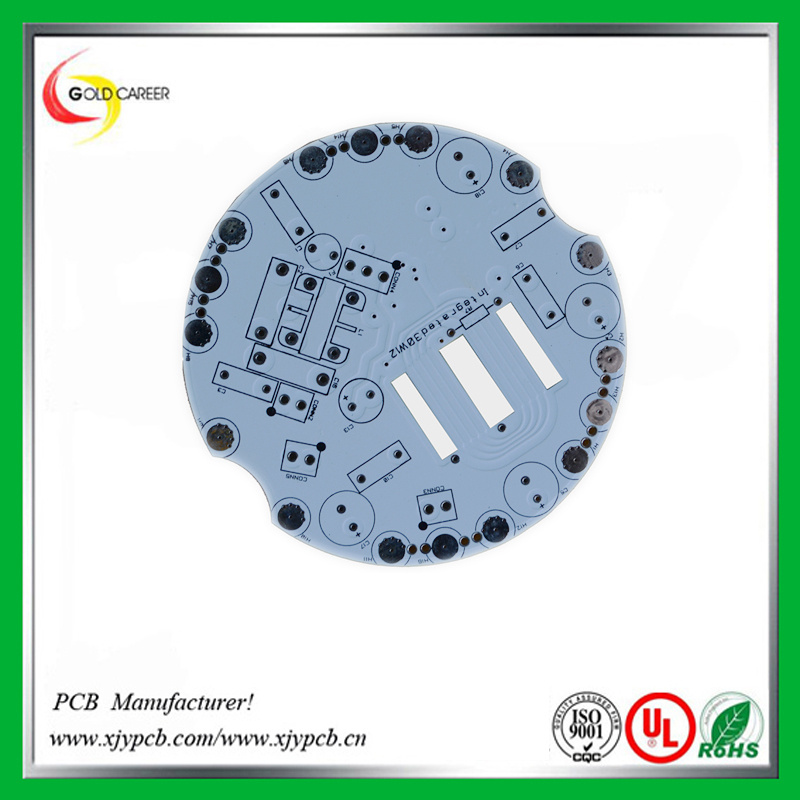

Aluminum base electronic kits assembly PCB
WELCOME TO XJY------------------
Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields.
++++++
+++++++
Quick Details
Place of Origin: |
Guangdong China (Mainland) |
Brand Name: |
XJY |
Model Number: |
xjy-pcb 076 |
Base Material: |
FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum |
Copper Thickness: |
1OZ |
Board Thickness: |
1.6mm |
Min. Hole Size: |
0.2mm |
Min. Line Width: |
0.15mm |
Min. Line Spacing: |
0.15mm |
Surface Finishing: |
HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG |
Certificate:: |
ROSH. ISO9001.SGS. UL |
Solder mask: |
Green. Red. Blue. White. Black.Yellow |
Testing: |
Flying Probe test XRAY Inspection AOI Test |
Standard:: |
IPC6012B |
PTH copper thickness: |
0.25-2mil(10-50um) |
Tolerance of Etching: |
±1mil(±25um) |
V-cut angle: |
25°30°45°60° |
Twist&Wrap:: |
≤ 0.5% |
Tolerance of finished panel: |
±10% |
Service: |
LED PCB |
Features
* Low water absorption rate
* Hard to be deformed
* High mechanical strength
* Good electric performance wether under the moist or dry environment, Flame retardant grade could reach 94-V0
* High temperature resistant,high dielectric performance and mechanical processing performance.
PCB manufacture and PCB assembly
* PCB board file with parts list provided by customer
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCB
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
Testing procedures
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
*AOI (Automated Optical Inspection)
++++++++++
++++++++++Technology capability
Items | Single/Double-sided Board/Multilayer Board/FPC(1-24Layer) |
| Base Materials | FR-4(High TG 150°-170°),FR1,Aluminum,CEM-3,BT,94vo |
| Finish copper thickness | Outer 6 OZ,Inner 4 OZ |
| Surface finish | ENIG, ImAg, ImSn, OSP, HASL,Plating gold |
| Finished Board Size | Max Double-sided Board | 640mm χ 1100mm |
| Max Multilayer Board | 640mm χ 1100mm |
| Finished Board Hole Size (PTH Hole) | Min Finished Board Hole Size | 0.15mm |
| Conductor Width and Spacing | Min Conductor Width | 0.01mm |
| Min Conductor Spacing | 0.01mm |
| Thickness of Plating and Coating Layer | PTH Wall Copper Thickness | >0.02mm |
| Tin Solder Thickness ( Hot Air Leveling ) | >0.02mm |
| Nickl/Gold Thickness | For customer special need |
| Nickl Plating Layer | >2um |
| Gold Plating Layer | >0.3um |
| Bare Board Test | Single Side Test | Max Test Point | 20480 |
| Max Board Test Size | 400mm χ 300mm |
| Double Side Test | Max Test Point | 40960(General Use) |
| 4096(Special Use) |
| Max Board Test Size | 406mm χ 325mm |
| 320mm χ 400mm |
| Min Test pitch of SMT | 0.5mm |
| Test Voltage | 10-250V |
| Mechanical Process | Chamfer | 20°, 30°, 45°, 60° |
| Angle Tolerance | ± 5° |
| Deepness Tolerance | ± 0.20mm |
| V-Cut Angle | 20°, 30°, 45° |
| Board Thickness | 0.1-3.2mm |
| Residues Thickness | ± 0.025mm |
| Cell Paraposition Precision | ± 0.025mm |
| Tolerance of Out-shape Process | ± 0.1mm |
| Board Warp | Max Value | 0.7% |
| Optical Plotting | Max Plotting Area | 66mm χ 558.8mm |
| Precision | ± 0.01mm |
| Repetitive Precision | ± 0.005mm
|
Why Us ?
Quality
XJY will provide good quality pcb, components search and pcb assembly services for you. We provide good quality custom printed circuit board manufacturing in China.
Capable
XJY offers professional electronic pcb design, pcb manufacture, pcb assembly services.
Experience
XJY have full experiences in pcb producing, pcb making, pcb assembling.
Protecting your interests
Protecting your Intellectual Property is one of the most importants to us!
Flexibility
Base on your special requirements, XJY provide our best solution to you fastest.
Warranty and Return
1. All the goods are inspected before shipment, Pls must confirm if everything
of the productions is ok within one week after you received the productions.
And we can discuss and get a good solution.
2. All productions must be in its original conditions if they need to be returned. |
PCB or PCB Assembly files requests
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly,To short the lead time, please kindly advise us if there is any acceptable
components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
Our Advantage
1.Our professional engineer can provide PCB design, BOM.
2.Quick and econimic delivery term.
3.Provide PCB & PCBA prototype, and medium&low volumn quick board services.
4.Component purcharsing, SMT&PCBA one-stop source.
5.Two-hours quote response, 24 hours quick-turn produce.
6.FR4 Double-sided and Alum single-sided sample in 24 hours.
Payment and shipping term---------
By L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Shipping with DHL,Fedex,UPS,ect
Please feel free to ask any question that you have, we would be more than happy to help you!
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
