Name: Aluminum Base PCB Board 2mm Board Thickness Metal Core PCB
Brand: all-electronics-online.com
SKU: 762865445
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 0.27-0.46/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fl0900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Aluminum
Board Layer:	1
Board Thickness:	0.8 Mm
Copper Thickness:	1 Oz
Min. Hole Size:	0.20 Mm
Min Line Width&Space:	0.15 Mm
Solder Mask:	White/Black
Silksreen:	Black/ White
Surface Fnishing:	HASL-Lf
Lead Time:	5-6 Working Days
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Dielectric:	Aluminium Base PCB

Product Description

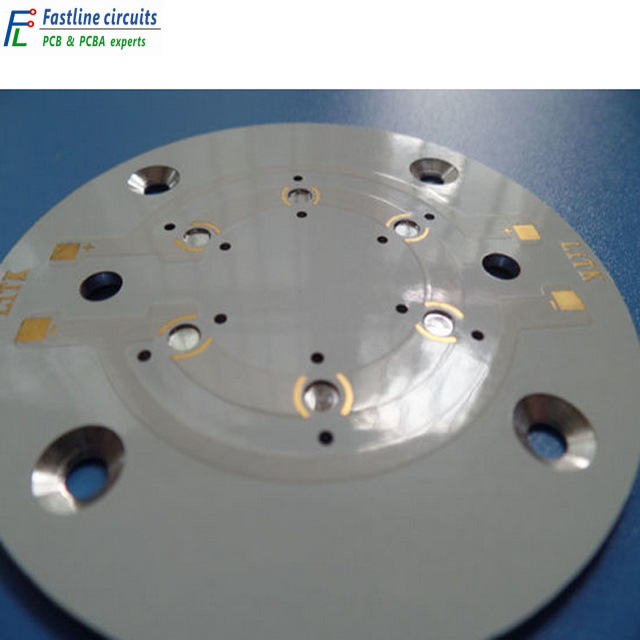

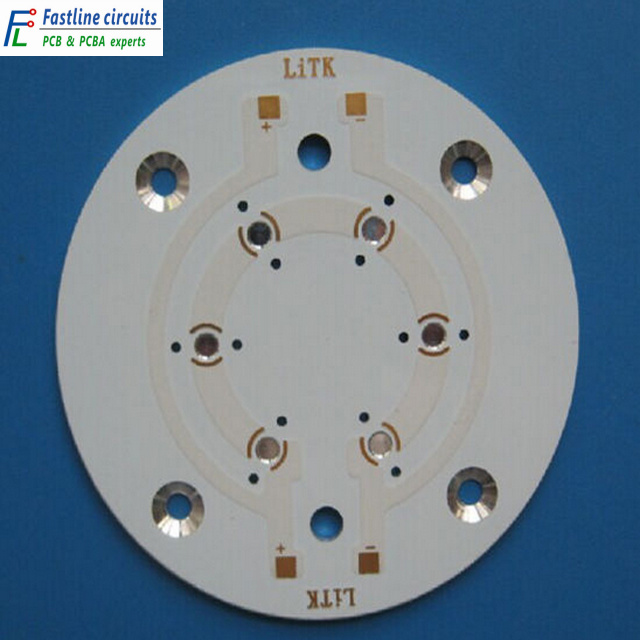

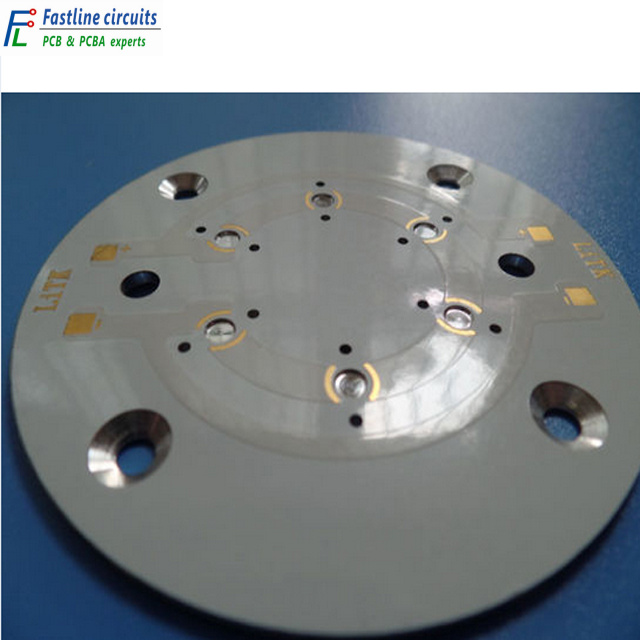

Aluminum base PCB board 2mm board thickness metal core pcb

Commodity Introduction
This is a type of Aluminum PCB for the application of Power Supply It's a single sided layer board
at 1.6mm thick. The base laminate is from ITEQ Board Solder mask and silkscreen from Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

PCB SIZE	65 x 65mm=1PCS
BOARD TYPE
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(1oz)
	1W/MK dielectric material
	Aluminum 5052
TECHNOLOGY
Minimum Trace and Space:	14mil/15mil
Minimum / Maximum Holes:	2.5/8.5mm
Number of Different Holes:	4
Number of Drill Holes:	18
Thermal resistance(°C/W)	≤0.45
Breakdown Voltage(VDC)	4000
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	1W/MK dielectric material, MCPCB
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To:	Top. 12µm Minimum.
Solder Mask Color:	White,PSR400 WT02
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	no silkscreen required
Colour of Component Legend	no silkscreen required
Manufacturer Name or Logo:	no silkscreen required
VIA	no via
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
APPLICATION:	LED light, Indoor Lighting 5V Power Supply 12V Dc Power Supply 24V Power Supply Power Supply Unit
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Our workshop

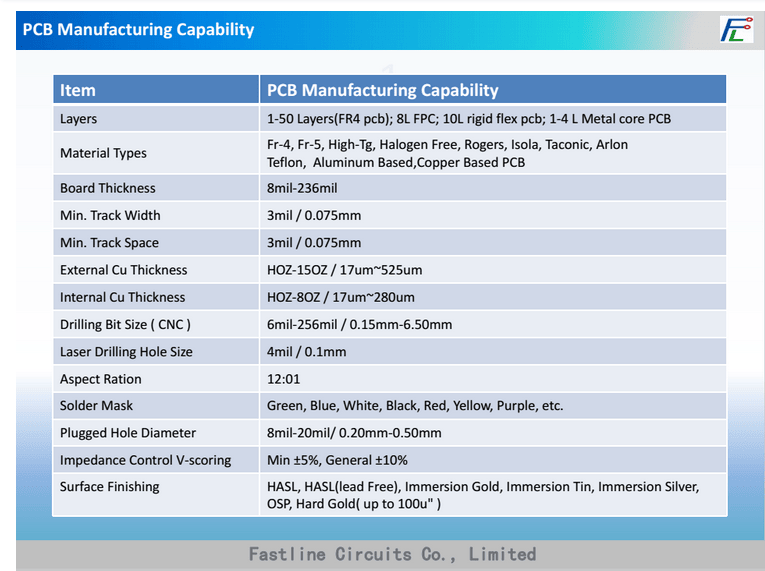

Our Capability

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
