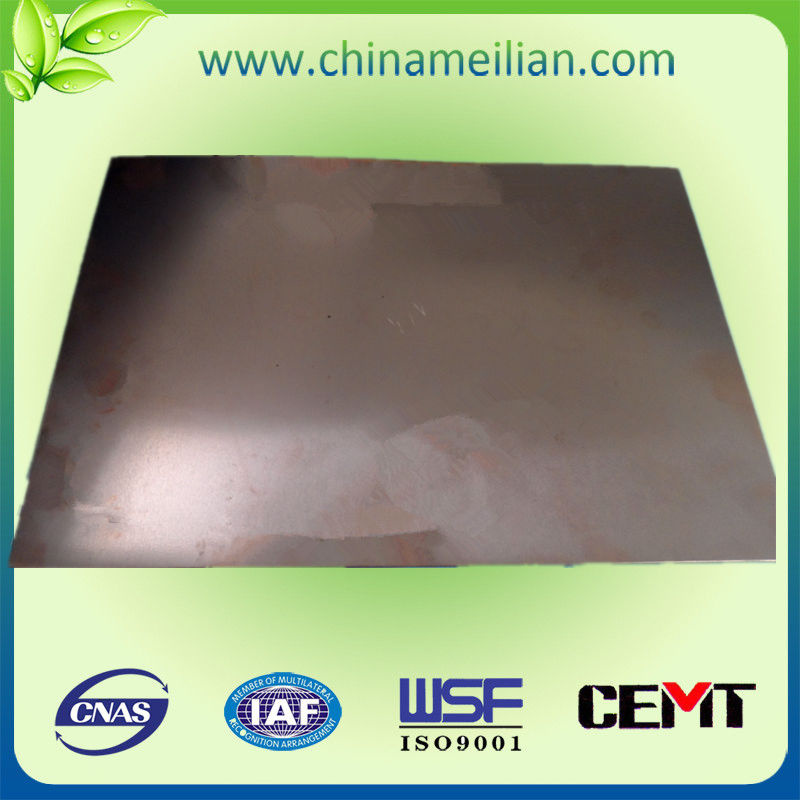

Aluminum Based Copper Clad Laminate Sheet

Name: Aluminum Based Copper Clad Laminate Sheet
Brand: all-electronics-online.com
SKU: 748415695
Availability: InStock
Rating: 4.8 (118 reviews)

Price:	US $ 17.9-35pc
Trade Terms:	FOB,CFR,CIF
Min Order:	100pc
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-9335
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Golden
Density:	2.2g/cm3
Delievery Time:	Within 7-10 Working Days
Sample:	Free
Structure:	Double-Sided Rigid PCB
Production Process:	Subtractive Process
Dielectric:	Mj
Material:	Copper Clad
Brand:	Mj

Product Description

Technical Datasheet

Technical Spectification
Al:99.70 Cu:99.90%
Tensile strength of Al-Cu bonded surface at ambient temperature :≥100 Mpa
Shear strength of Al-Cu bonded surface at ambient temperature: ≥60 Mpa
Tensile strength of Al-Cu bonded surface at 315ºC: ≥20 Mpa
Maximum working temperature :350 ºC
Specific resistance : ≤3×10(-)8Ωm

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
