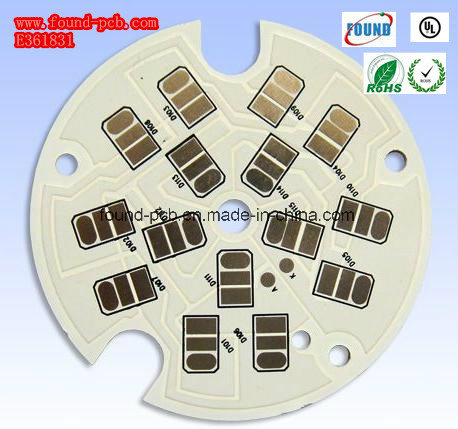

Aluminum Based High Power LED PCB Board

Prod Model:	FD-BOARD
Dielectric:	FR-4
Material:	Complex
Flame Retardant Properties:	V0
Type:	LED

Product Description

Material: Aluminum Based
Brand:  Polytronics  Ventec  TOTKING  Boyu  Bergquist
Thickness: 0.2-5.0 mm
Copper: 1oz-5oz
Thermal conductivity: 1-8 W
Solder resist: TAIYO ink
Max PCB size: 600mm*1200mm
Surface treatment: HASL,immersion gold,OSP
Minimum Hole Size: 0.2mm (+/-0.1mm)

Used for high power led, electronics, machinery, industrial lighting and so on.
Good price and best price.


Factory  Manufacture  Capability
NO	ITEM	Techinical    capabilities
1	Materials	FR-4, CEM-3,  Al Base, Cooper Base.
2	Material Type	TOTKING T111,  EASTPOWER EPA-M0
3	Layers	1 Layer
4	Min. core  material	PP
5	Max. board  size	600mm *1200mm
6	Copper  Thickness	1-5 OZ
7	Min. board  thickness	0.5 mm
8	Max. board  thickness	5.0 mm
9	Min. line  width/space	0.1mm
10	Min. Letter line width	0.15mm
11	Min. Letter height	0.8mm
12	Min. hole  size	0.75mm(NPTH)
13	Hole  dia. tolerance	±0.05mm
14	solder  Mask	White,  Black, Green
15	Outline  Tolerance	±0.15mm
16	Modeling	Punching,  Routing, V-cutting
17	Special Hole	Blind hole, Blind slot, T-hole, T-slot, Counter sink hole, Cup hole
18	Peel  Strength	>=1.3N/mm
19	Thermal  Stress	288ºC, 2min
20	Thermal  Conductivity	>=2.0 W/m-k
21	Thermal  Resistance	≤0.55 ºC/W
22	Test  Voltage	5 V
23	Surface  Finish	HAL , OSP , Immersion Gold
24	File Format	Gerber , DPF, HPGL,CAM,DXP,CADM,PADS
25	Dielectric Breakdown	>=2.5 KV
26	Max. Package Size	1200mm*600 mm
