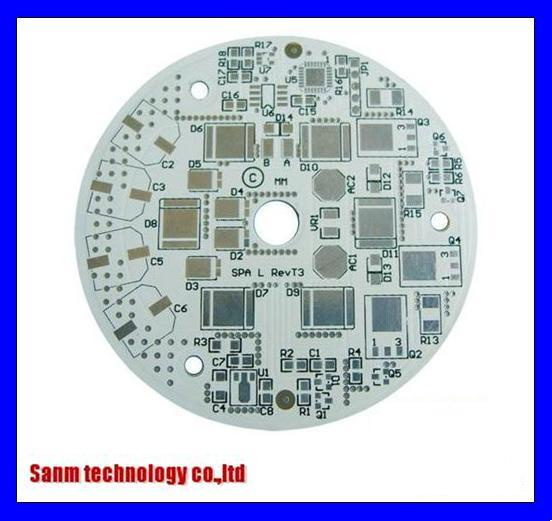

Aluminum Based PCB Multilayer Circuit Board (MP-205)

Name: Aluminum Based PCB Multilayer Circuit Board (MP-205)
Brand: all-electronics-online.com
SKU: 642328095
Availability: InStock
Rating: 4.9 (34 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MP-205
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS:	Yes
ODM:	Yes
Type:	Combining Rigid Circuit Board
Flame Retardant Properties:	V1
Dielectric:	AIN
Material:	Aluminum

Product Description

Aluminum based PCB board
Layer: 2 layers
Material: Aluminum
RoHS compliant

Min. Line width/space: 0.05mm/0.05mm(2mil/2mil)
Min. Drill hole diameter: 0.25mm/10mil
Etch tolerance: +/-0.0125mm(0.5mil)
Exposal contraposition tolerance: +/-0.05mm(2mil)
Projective drill tolerance: +/-0.025mm(1mil)
Max. Panel size: Single and double side 60cm*80cm; Multilayer 50cm*70cm

Surface dispose method:
Plating gold: 1-5u"
Immersion gold: 1-3u"
Plating pure tin: 4-20u"
Immersion tin: 1-5u"

We offer quotation for clients within 3 working days, and reply E-mail within 6 hours.

Founded in 2006, Sanm Technology is a newly established high-tech company. We are one of the leading providers of innovative products for EMS, including PCB, PCBA, imaging products. Our other products include camera modules, membrane switches/panels and enclosures, all of which have large global market shares.

Our primary objective for all our product lines is to be number one in South China and within the top three in the global market. Since then, our distinguished reputation has its beginning in the PCBA industry, where we have ranked number one for the past years. Today, we employ over 200 staff and we have two domestic OEM factories, with global headquarters located in Shenzhen.

We are a fully electronic contract manufacturer which delivers complete turn-key services including BOM, material procurement, quality assurance, assembly and logistics services. We are sure that we can provide you complete product support to make your outsourcing projects successful. Our capabilities and services include but are not limited to material sourcing services, sample and prototype building, PCB assembly and box building.

We are dedicated to offering superior-quality products at competitive prices. Send us an inquiry today.
