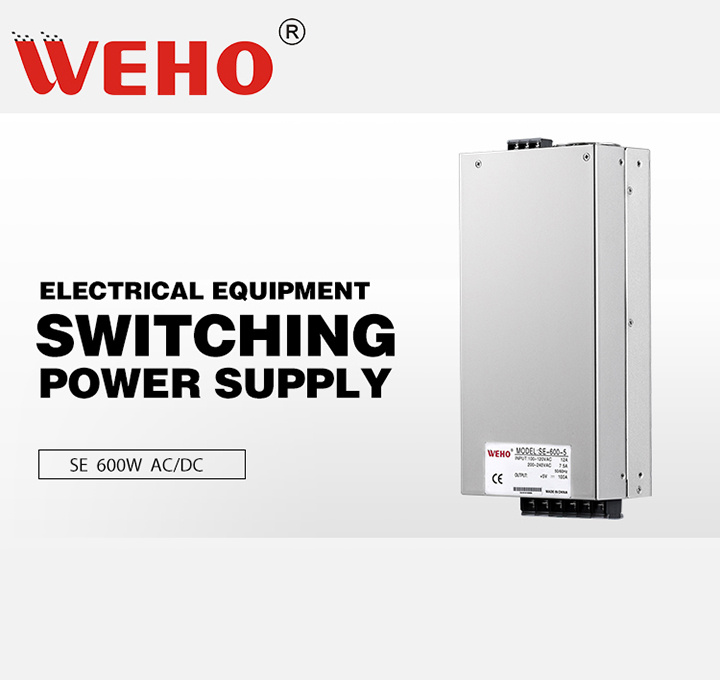

Aluminum Case AC / DC Se-600W 5V Power Supply

Name: Aluminum Case AC / DC Se-600W 5V Power Supply
Brand: all-electronics-online.com
SKU: 832289325
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 64-80/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SE-600-5
Output Current:	100A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	2.1kg
MOQ:	1-5PCS
Efficiency:	88%
Output Type:	Single
Warranty:	2 Years
Output Power:	>500W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

600W 5V Power Supply Input and Output on Two Sides

Features:

1. PF>0.96@115VAC: PF>0.93@230VAC

2. AC input 85~264VAC 120~370VDC

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

MODEL	SE-600-5	SE-600-12	SE-600-15	SE-600-24	SE-600-27	SE-600-48
DC VOLTAGE	5V	12V	15V	24V	27V	48V
RATED CURRENT	100A	50A	40A	25A	22.2A	12.5A
CURRENT RANGE	0 ~ 100A	0 ~ 50A	0 ~ 40A	0 ~ 25A	0 ~ 22.2A	0 ~ 12.5A
RATED POWER	500W	600W	600W	600W	599.4W	600W
RIPPLE & NOISE (max.)	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p
VOLTAGE ADJ. RANGE	4.75 ~ 5.5V	10 ~ 13.5V	13.5 ~ 16.5V	22 ~ 26.4V	24 ~ 30V	43 ~ 56V
VOLTAGE TOLERANCE	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
LOAD REGULATION	±2.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
SETUP, RISE, HOLD TIME	1000ms, 50ms, 20ms/230VAC, 1000ms, 50ms, 50ms/115VACat full load
VOLTAGE RANGE	90 ~ 130VAC / 180~260VAC selected by switch, 254~370VDC
FREQUENCY RANGE	47 ~ 63Hz
EFFICIENCY (Typ.)	78%	83%	84%	87%	87%	88%
AC CURRENT	12A / 115VAC, 7.5A / 230VAC
INRUSH CURRENT (max.)	25A / 230VAC, 50A / 230VAC
OVERLOAD	110~135% rated output power
OVERLOAD	Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE	5.75 ~ 6.3V	13.8 ~ 16.2V	18 ~ 21V	27.6 ~ 32.4V	31 ~ 36.5V	57.6 ~ 67.2V
OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover.
OVER TEMPERATURE	85ºC± 5ºC (TSW1) Detect on heatsink of power transistor
OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
WORKING TEMP.,HUMIDITY	-20 ~ +60ºC (Refer to output load derating curve), 20 ~ 90% RH
STORAGE TEMP., HUMIDITY	-40 ~ +85ºC, 10 ~ 95% RH
TEMP. COEFFICIENT	±0.05%/ºC (0 ~ 50ºC)
VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY STANDARDS	Design refer to UL60950-1
WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
MTBF	197khrs min. MIL-HDBK-217F (25ºC)
DIMENSION	24712763.5mm (LWH)
PACKING	2.1Kg; 6pcs/13.4Kg/0.98CUFT

Our Workshop:

Packaging:

Certificate:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
