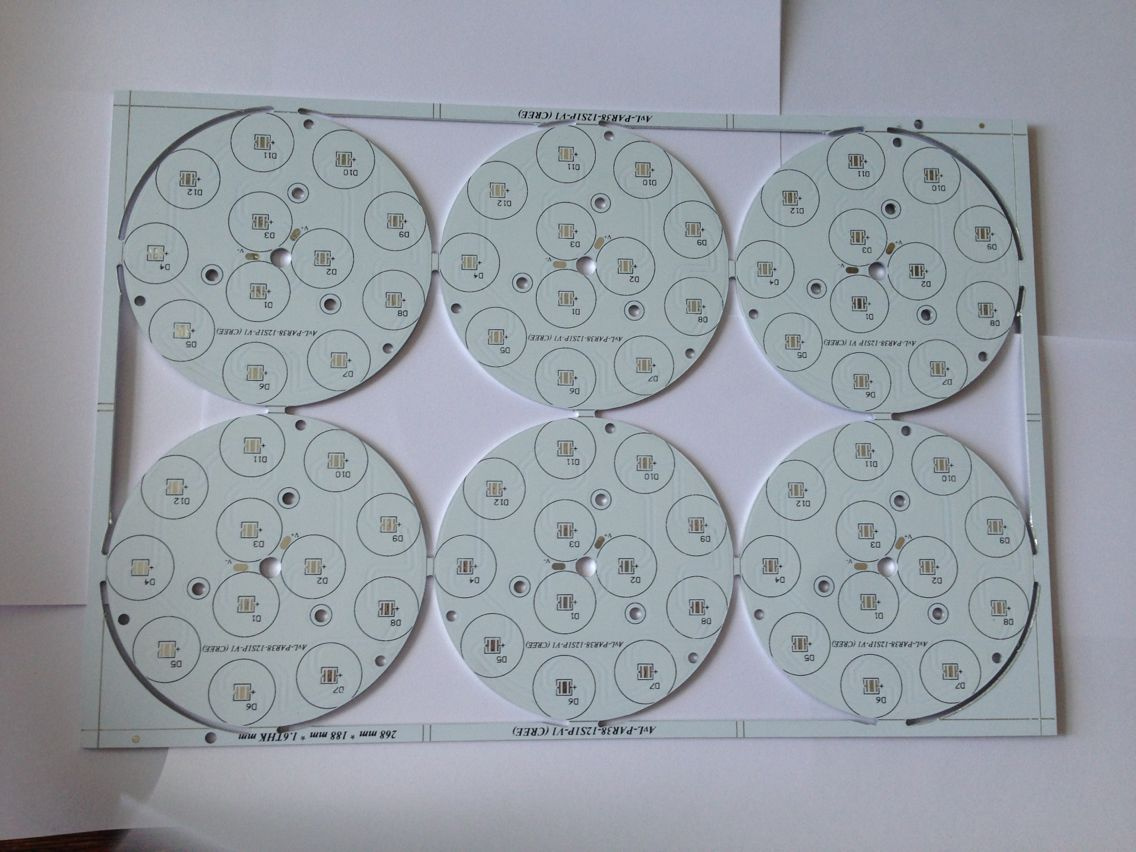

Aluminum Circuit Board for LED Bulb PCB

Prod Model:	Fl356
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Aluminum
Board Thickness:	1.6 Mm
Copper Thickness:	1 Oz (35um)
Board Layer:	Single
Minitrace:	0.15mm
Min Hole:	0.15mm
Solder Mask:	Any Color
Slicksreen:	Any Color
Surface Treatment:	HASL Lead Free
Lead Time:	4-5 Working Days
Structure:	Single-Sided Rigid PCB
Production Process:	Semi-Additive Process
Dielectric:	Aluminium
Material:	Aluminium

Product Description

DIY Aluminum Based PCB Board with Fast PCB Prototype


Product Description
PCB advantages:
1 R&D team support
2 UL, RoHS,ISO9001
3.IPC class2
4.Advanced production line and promtly delivery.
5,Honest Credibility in China.
6.Professional and abundant experience in PCB.
7.Competitive price and good quality.
8. Excellent after-sales service.


PCB product showcase:





PCB application:





PCB production line:






Our Services
Fastline is  a leading PCB manufacturer in China. providing PCB design, PCB fabrication,PCB clone and PCB assembly services. and we have got the UL, ISO, SGS certifications.

Pls see the Metal Core PCB Capability below,

TECHNICAL DETAILS OF Fastline Aluminum PCB
MATERIALS
Aluminum
MAXIMUM LAYER COUNT
4 Layers
MAXIMUM PANEL SIZE
17" x 23" (432 x 584 mm2)
MIN. BOARD THICKNESS
1.0mm Al, 4 mils (0.1 mm) FR4
COPPER CLAD (inner)
1/2 oz, 1 oz, 2 oz, 3 oz, 4oz
COPPER CLAD (outer)
1/2 oz, 1 oz, 2 oz, 3 oz, 4 oz
SURFACE FINISHES
ENTEK 106A, Immersion Gold, HAL, immersion silver
SOLDER MASK
LPI: Taiyo PSR 4000, Tamura DS2200, Probimer 77MA
MINIMUM TRACE (width)
12.0 mils (0.30 mm)
MINIMUM TRACE (spacing)
12.0 mils (0.30 mm)
MINIMUM PAD-TO-PAD TOL.
± 3 mils (± 0.76 mm)
HOLE SIZE TOLERANCE (NPTH)
± 2 mils (± 0.05 mm)
HOLE SIZE TOLERANCE (PTH)
± 3 mils (± 0.076 mm)
MINIMUM HOLE SIZE
20 mils (0.50 mm)
OUTLINE DIMENSIONAL TOL.
< ± 10 mils (0.25 mm)
IONIC CLEANLINESS
< 5 mg/in2 of NaCl (0.775 mg/cm2)
IMPEDANCE CONTROL
± 10% (Differential)
WARPAGE
< 1%
