Aluminum Conductor Overhead Cables, ABC Cable

Name: Aluminum Conductor Overhead Cables, ABC Cable
Brand: all-electronics-online.com
SKU: 822433715
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 0.2-2Meter
Min Order:	1000Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JKLYJ ABC CABLE
Size:	16,35,50,..70,95........800.......1000
Produceing Experience:	More Than 15 Years
OEM:	Yes
Export Experience:	Indonesia,South Africa,Africa,South Amer
Customized:	Yes
Application:	Overhead Transmission Line,Power Plant
Insulation Material:	Bare
Certification:	RoHS
Voltage:	LV Mv
Sheath Material:	XLPE , PVC
Wire Core Material:	Aluminum ,AAC, AAAC
Model:	Gj

Product Description

Aluminum Conductor XLPE Or PVC Insulation Overhead Cable (ABC Cable)
for Power Transmission Line , Connection to Household, for Street Line

Standard: IEC, BS,ASTM,DIN,NF,JIS.

We can also customize the special size according to the customer's special request.

Voltage: 0.6/1KV
Type: Twisted Cables
Core number: 1, 2 core, 3core, 4core
Structure: Phase core + 1Netural core

Hot sale to many countries of Africa,USA,Southeast Asia,South America

Number of Wires/Dia.	Approx. Strand Dia.	Minimum Breaking Load of Strand							Approx Weight
Number of Wires/Dia.	Approx. Strand Dia.	Grade 700	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx Weight
	mm	kN	kN	kN	kN	kN	kN	kN	Kg/km
7/2.00	6.0	7.70	10.55	15.40	-	22.00	25.30	28.60	170
7/2.36	7.1	10.70	14.70	21.40	-	30.60	35.20	39.80	240
7/2.65	8.0	13.50	18.50	27.00	-	38.60	44.40	50.20	300
7/3.00	9.0	17.30	23.75	34.65	-	49.50	56.90	64.30	392
7/3.15	9.5	19.10	26.20	38.20	-	54.55	62.75	70.90	430
7/3.25	9.8	20.30	27.85	40.65	-	58.05	66.80	75.50	460
7/3.65	11.0	25.60	35.15	51.25	-	73.25	84.20	95.20	570
7/4.00	12.0	30.90	42.20	61.60	-	88.00	101.0	114.00	690
7/4.25	12.8	34.75	47.65	69.50	-	99.30	114.0	129.00	780
7/4.75	14.0	43.40	59.45	86.80	-	124.0	142.7	161.3	970
19/1.00	5.0	5.22	7.16	10.45	-	14.92	17.16	19.40	120
19/1.25	6.3	8.16	11.19	16.32	-	23.32	26.81	30.31	180
19/1.40	7.0	10.24	14.04	20.47	-	29.25	33.64	38.02	230
19/1.60	8.0	13.37	18.35	26.75	-	38.20	43.93	49.66	300
19/2.00	10.0	20.90	28.65	41.78	50.74	59.69	68.64	77.60	470
19/2.50	12.5	32.65	44.80	65.29	79.28	93.27	107.3	121.3	730
19/3.00	15.0	47.00	64.50	94.00	114.1	134.3	154.5	174.6	1050
19/3.55	17.8	65.80	90.27	131.6	159.9	188.0	216.3	244.5	1470
19/4.00	20.0	83.55	114.6	167.1	203.0	238.7	274.6	310.4	1870
19/4.75	23.8	117.85	161.6	235.7	286.0	336.7	387.2	437.7	2630

If you want to know more techincal information,pls contact us.
sending email or telephon us:

Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126

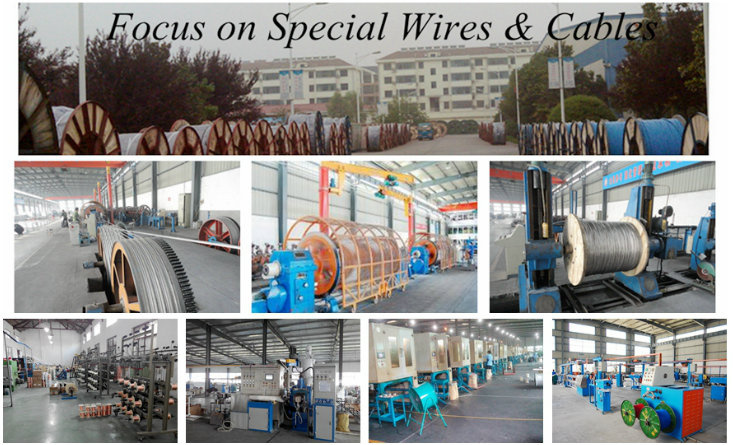

Focus on Cables and Wires
Be Your Most Reliable Supplier

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:

Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.

Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.

We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.

New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.

We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.

Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.

Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
