Aluminum Heating Element Cast in Heater

Name: Aluminum Heating Element Cast in Heater
Brand: all-electronics-online.com
SKU: 727532962
Availability: InStock
Rating: 4.3 (143 reviews)

Price:	US $ 5-20/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-Cih004
Input Voltage:	100V-400V
Wattage Tolerance:	+5%, -10%

Product Description

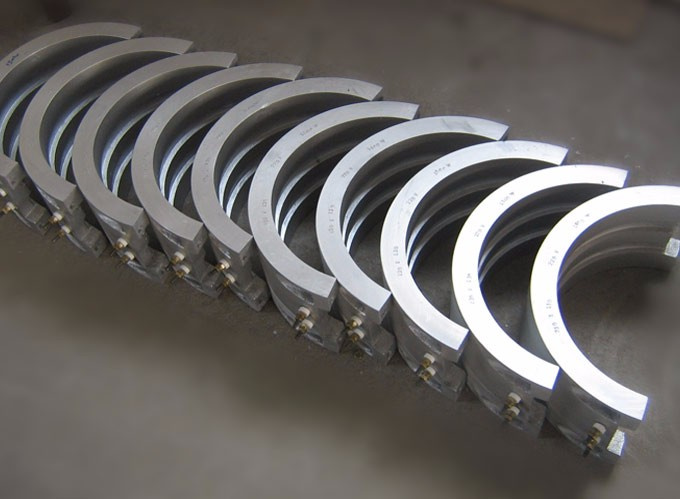

Aluminum Die Cast In Heater With Screw Terminal

Cast in heater offers a high quality and efficient method of heating and controlling extruders, compression molding platens, heat sealers, vacuum forming platens. They are contamination and corrosion resistant and can with stand high temperature and pressures in harsh environments with years of trouble free service. Cast-in heaters can be casted into any shape and size needed, thus fully covering the part to be heated and virtually becoming the part itself. Most cast in heat cool bands are made to customer specifications.

Features:
High operating temperatures
Liquid cooling or air-cooling fins
Any size or shape available
Pressure casted ensure porosity free high density casting
Extremely ruled and resistant to damage
Precise and accurate control of temperature due to heat cool action
High watt density available

Size	As required any size possible
Voltage	120, 240, 380, 415 volts
Max. Wattage	Aluminum 5w/cm²
Max. Wattage	Bronze 7w/cm²
Terminations	Leads, Terminal boxes, Screw
Max. Temperature	Aluminum 371
	Bronze 760
	Iron 482
Options	Holes, Grooves, Notches, Cutouts

Applications:

1	Injection and Blow Moulding
2	Extruders
3	Moulds & Dies
4	Packaging machinery
5	Medical equipments
6	Thermoforming equipment

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
