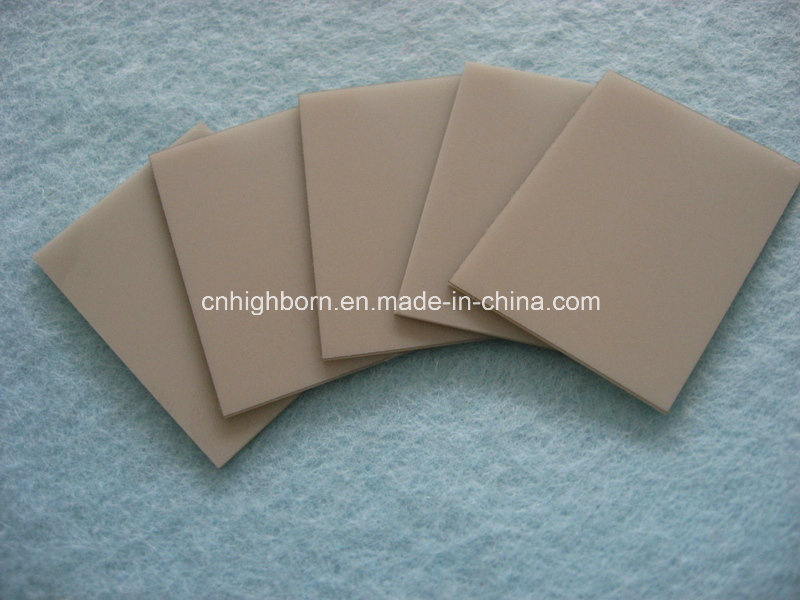

Aluminum Nitride Ceramic Sheet for Semiconductor

Prod Model:	HBK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Customized
Thermal Conductivity:	170W/Mk
Keyword1:	Aluminum Nitride Ceramic Sheet
Keyword2:	Aln Ceramic
Keyword3:	Ceramic Substrate Used for Semiconductor
Application:	Insulators
Type:	Insulation Film
Chemistry:	Inorganic Insulation
Material:	Ceramic
Thermal Rating:	220 220
Maximum Voltage:	20KV~100KV
Color:	Gray
Brand:	Hb;OEM

Product Description

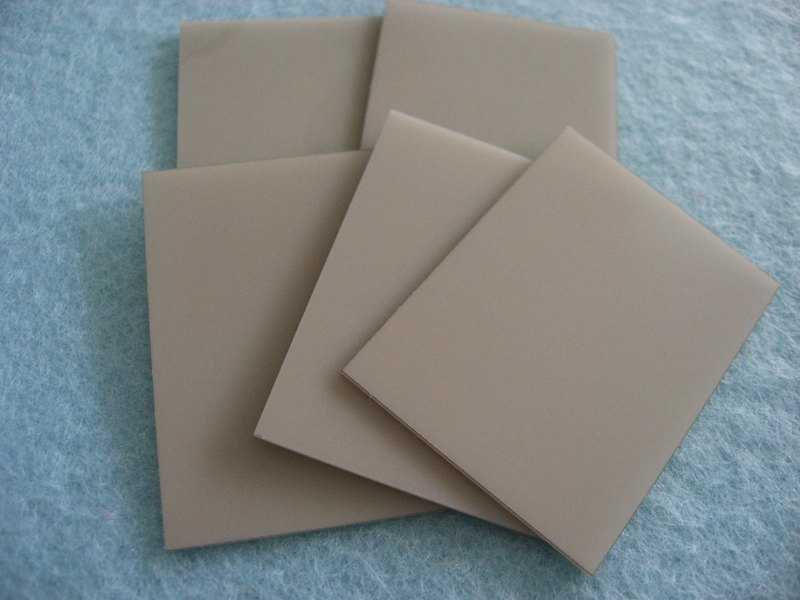

Aluminium Nitride Electrical Ceramic Plate

1. The range of thickness could be 0.3 ~ 1, 1~2mm.
2. Different width and length is available.

The advantages
High thermal conductivity
Excellent insulation
High hardness
High compressive strength
High accuracy
Good wear-resistance
Well resistant to high temperature
Non-absorbent
Offer different specification and dimensions according to your request


Property content	Property Index
Thermal conductivity (W/m·k)	≥170
Volume resistivity(Ω·cm)	>1013
Dielectric constant [1MHz, 25°C]	9
Dielectric loss [1MHz,25°C]	3.8*10-4
Dielectric strength(KV/mm)	17
Density(g/cm3)	≥3.30
Surface roughness Ra(µm)	0.3~0.5
Thermal expansivity [20°C to 300°C](10-6/°C)	4.6
Flexural strength (MPa)	320~330
Modulus of elasticity (GPa)	310~320
Moh's hardness	8
Water absorption(%)	0
Camber(~/25(length))	0.03~0.05
Melting point(°C)	2500
Appearance/color	Dark Gray

Packaging & Shipping
professional export packaging(cartoon&wooden box)

Our Services

 We can design upon the customers' detailed requirements.OEM production.package or logo can be make according to customers' need. professional fragile packaging services.
Company Information

HIGHBORN is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.
Not only have we mastered the fabrication technology, our strength has always been based around listening to and understanding our customer's requirements and expectations.
Continuous improvement in all areas of our business is key to our grouth. What is equally important to us is maintaining in business, our inherent family values of trust, faimess and respect to our employees, suppliers and customers.
