| Prod Model: |
XJY-PCB 264 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Side: |
Double |
| Copper Thickness: |
1oz |
| Board Thickness: |
1.6mm |
| Min. Hole Size: |
0.25mm |
| Min. Line Width: |
6mil |
| Min. Line Spacing: |
6mil |
| Surface Finishing: |
Hal |
| Soldermask: |
White |
| Legend: |
Black |
| Shipping: |
UPS, FedEx, DHL, Ect |
| Type: |
Flexible Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
| Material: |
Aluminum |
Product Description
WELCOME TO XJY-----------------
Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields.
++++=====++++++
Quick Details
Place of Origin: |
Shenzhen China (Mainland) |
Brand Name: | XJY |
Model Number: |
xjy-pcb 264 |
Base Material: |
aluminum |
Copper Thickness: |
1oz |
Board Thickness: |
1.6mm |
Min. Hole Size: |
0.25mm |
Min. Line Width: |
6mil |
Min. Line Spacing: |
6mil |
Surface Finishing: |
HAL |
soldermask: |
white |
legend: |
black |
Outline: |
CNC |
Testing way: |
E-testing |
Packaging & Delivery
Packaging Detail: | Standard:carton Size:40*30*25,40*35*50 Weight:1L,3kgs/sqm;2L,3.5kgs/sqm |
| Delivery Detail: | 7-10 days |
Specifications

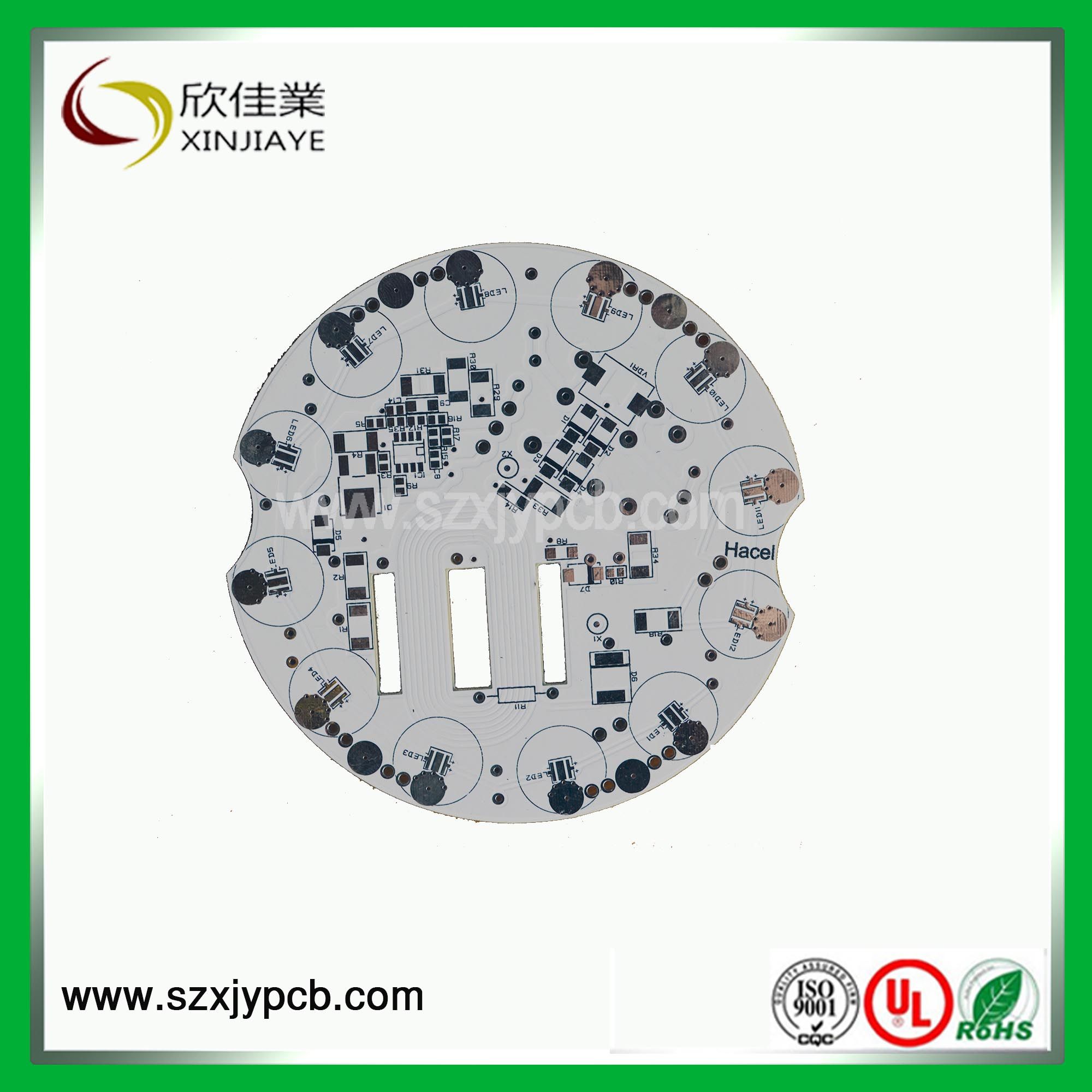

1.2L aluminum PCB;
2.good quality,reasonable price;
3.quicker delivery;
4.better logistic service;
5.UL,SGS,ROHS,ISO9000
Specification
This form is of my company's process capacity for your reference, for more messages, pls contact with us freely!
Item | Specification |
| Material | FR-4 / Hi-Tg FR-4 / Lead free Materials(RoHS Compliant)/CEM-3/CEM-1/Aluminium |
| Layer | single layer,double layer,multi-layer(4-10) |
| Board Thickness | 0.3mm-3.0mm,+/-0.1mm(tolerance) |
| Copper Thickness | 1/2OZ-3OZ (35um to 105um),+/-8um(tolerance),purity 99.5% |
| Impedance Control | ±10% |
| Bow and Twist MAX. | 0.75%(SMT) |
| Anti-strip | 0.88N/mm |
| Resistance | ≤20Ω |
| Reactance | 500V |
|
| Min. Value |
|
| Min. Trace/Space Width | 6 mil,+/-0.15mm(tolerance) |
| SMD Pitch | 10 mil |
| BGA Pitch | 20 mil |
| Min Pad Space | 4mil(SMT) |
| Plating Copper Thickness | 15um |
|
| Hole |
|
| Hole Size | 0.25mm--6.2mm |
| Hole Position Tolerance | ±0.1mm |
| PTH/NPTH Tolerance | ±0.15mm(dia.=0.4-1.4mm) |
| Pad Tolerance | ±0.1mm(dia.≥0.6mm) |
| Pad to hole/to pad Tolerance | ±0.05mm/±0.2mm |
|
| Solder Mask |
|
| Pad no Open | soldermask must cover all on both side, reject tin on pad |
| Pad Open | reject soldermask inside the hole on both side |
| Solder Mask Thickness | 0.7mil,raised H≤0.05 |
| Colour | green,blue,red,yellow,black,white(LPI/MATT.,UL 94 V0 approved) |
|
| Surface Finish |
|
| HAL | tin height≤0.05mm |
| ENIG | Nickel 3-7um,gold:0.5-0.7um |
| OSP/flash gold | 0.2-0.5um |
| Pealable mask | cover all on pad,thickness≥0.20mm |
| Carbon Ink | cover all on trace,Value≤30Ω |
|
| Outline |
|
| Outline Tolerance | ±0.2mm |
| Beveling | 30°,45° |
| V-cut position/depth | ±0.2mm(length≤100mm)/±0.2mm |
| Punch | ±0.1mm |
|
| E-testing pass percent | 97% pass for the first time,+/-2%(tolerance) |
|
| Certificate | SGS,ISO,ROHS,UL, |
Features
* Low water absorption rate
* Hard to be deformed
* High mechanical strength
* Good electric performance wether under the moist or dry environment, Flame retardant grade could reach 94-V0
* High temperature resistant,high dielectric performance and mechanical processing performance.
PCB manufacture and PCB assembly
* PCB board file with parts list provided by customer
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCB
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
Testing procedures
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
*AOI (Automated Optical Inspection)
FAQ:
A. For PCB order, please provide Gerber file or *.pcb file. Any details are also welcomed if no Gerber file.
B. Large PCB quantity order, quotation will be based on SQM.
C. For PCBA order, please provide the Gerber file, *.pcb file and BOM List.
D. Reverse engineering and PCB clone service can be supplied with your printed circuit board supplied.
E. Any questions, welcome to contact our sales person Lucy by sending inquiry. Your satisfaction is our pleasure.
Payment and Shippin term:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
DHL,Fedex,UPS,EMS,ect
If you have any question for our products,just contact me!
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
