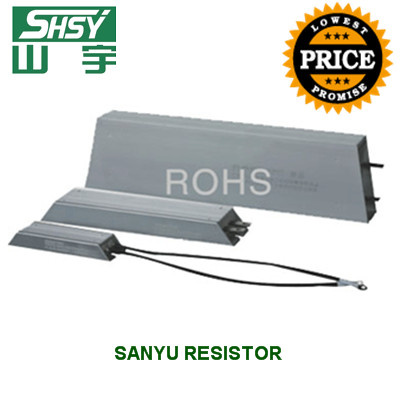

Aluminum Shell Fixed Resistor (RXLG Series 60W-2000W, 1R-10KR)

Name: Aluminum Shell Fixed Resistor (RXLG Series 60W-2000W, 1R-10KR)
Brand: all-electronics-online.com
SKU: 689004985
Availability: InStock
Rating: 4.6 (95 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RXLG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Rxlg
Resistance Value:	1r-10kr
Resistance Tolerance:	5%-10%
Rated Power:	60W-2000W
Rated Voltage Range:	0.5kv- 2kv
IP:	33, 54
Resistance:	Fixed Resistor
Function For Resistance:	Load Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount
Type:	Thermal Resistor
Brand:	Sanyu

Product Description

Rated Power Range: 60W~2000W
Rated Voltage Range: 0.5KV-2KV

Product Introduction
RXLG series resistor is superior to conventional ceramic-skeleton resistor in terms of weatherproof, oscillation-resistant and safety, and is widely applied to electrical circuits that has high adaptability to bad ambient, such as power supply, inverter and servo system, and has high adaptability to bad ambient operating conditions. It can be easily fitted in an airtight manner and additional heat radiator can be fixed to it in an easy way. With elegant appearance, it is an ideal component that is perfectly compatible with power and electronic equipment

Technical Data
Rated Power Range: 60W~2000W
Rated Voltage Range: 0.5KV-2KV
Resistance Voltage: AC2.5KV-4KV/1min 50Hz optional
IP class: IP33-IP544
Vibration: 1.5g
Rated Temperature Rise: 375° C
Temperature Drift: 40~400ppm
Resistance optional
Advantage: Ambient operating condition
Packing: Paper box packing
Material: 0Cr25AL5/Ni80Cr20
