Aluminum Substrate Copper Clad Laminate Sheet

Name: Aluminum Substrate Copper Clad Laminate Sheet
Brand: all-electronics-online.com
SKU: 785798545
Availability: InStock
Rating: 5 (93 reviews)

Price:	US $ 18.9-25.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	200kg
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-9335
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Golden
Structure:	Double-Sided Rigid PCB
Production Process:	Subtractive Process
Dielectric:	Mj
Brand:	Mj
Material:	Copper Clad

Product Description

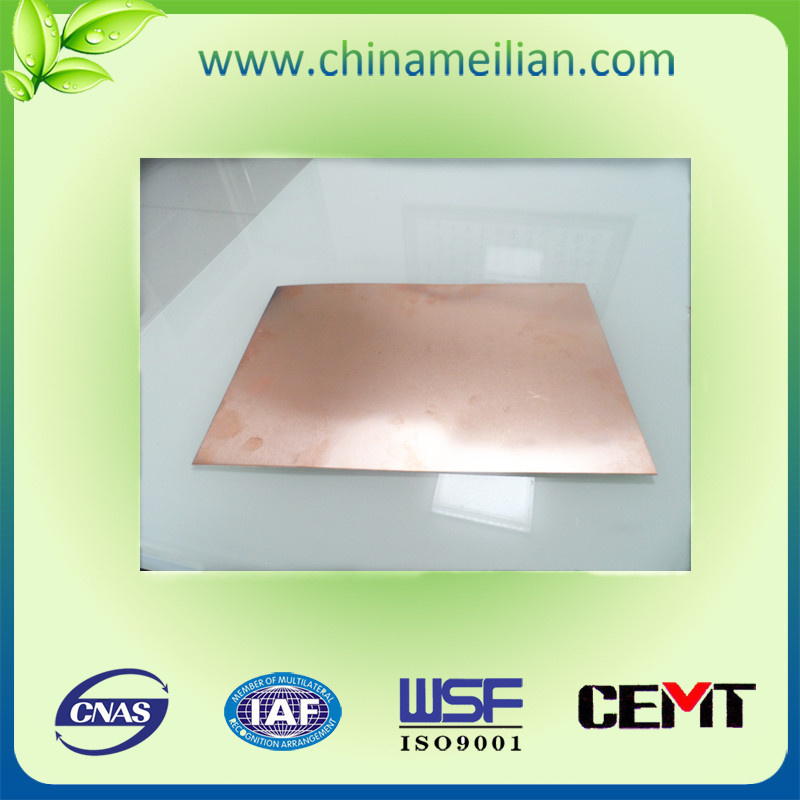

Aluminum Copper Sheet/Aluminum base copper clad laminated sheet
It is widely used in computer, VCR, electric exchange machine, instrumentation, mobile phone, periphery products of computer, office automatic equipment, automatic equipment & instrument, electric products for aviation, and some senior household electric machine.

Technical Datasheet

Technical Spectification:
Al:99.70 Cu:99.90%
Tensile strength of Al-Cu bonded surface at ambient temperature :≥100 Mpa
Shear strength of Al-Cu bonded surface at ambient temperature: ≥60 Mpa
Tensile strength of Al-Cu bonded surface at 315ºC: ≥20 Mpa
Maximum working temperature :350 ºC
Specific resistance : ≤3×10(-)8Ωm

Basic information
Product name	BMI Electrical Insulation Laminted Sheet/Prepreg
Item No.	MJ-9334
Brand	MJ
Material	BMI resin and Alkali free fiberglass cloth
Grade	Grade H
Feature
Excellent mechanical & electric property Good heat & moisture resistance Easy for processing & machining
Application
Can be processed into high temperatue insulating structural parts installed in a variety of motors and electrical equipmenst, or processed into motor slot wedges, standard and non-standard shaped parts
Technical Performance
Density	≥1.7g/cm3
Appearance	Natural color Dark brown, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation
Sheets Thickness	0.1-50mm
Size	≥1220x980mm
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥220ºC
Water absorption	≤1.0%
Impact strength parallel to layer (Charpy method)	≥147 KJ/m2
Tensile strength	≥120 Mpa
Flexural strength perpendicular to layer at room temperature at high temperature 180±2ºC	≥400 MPa ≥200 MPa
Electric strength,perpendicular to the layer(at 90ºC±2ºC oil.) 0.5-1.0mm 1.1-2.0mm 2.1-3.0mm	≥22 MV/m ≥20 MV/m ≥18 MV/m
Dissipation factor Under 48Hz~62 Hz Under 1MHz.	≤0.08
Voltage resistance parallel to layer (at 90ºC±2ºC oil for 1min)	≥30 kV
Insulation resistance parallel to the layer . At room temperature Immersing in water for 24h	≥1.0×104 MW ≥1.0×102 MW
Volume resistivity At room temperature Immersing in water for 24h 180ºC±2ºC	≥1.0×105 MW/m ≥1.0×103 MW/m ≥1.0×103 MW/m
Surface resistivity At room temperature Immersing in water for 24h 180ºC±2ºC	≥1.0×106 MW ≥1.0×104 MW ≥1.0×104 MW
Reference Standard	GB/T1303.1-1998
