| Prod Model: |
AM8-3001LB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Output: |
Analog Sensor |
| Usage: |
Position Sensor |
| Theory: |
Namur Sensor |
| Antistop: |
Numur Sensor |
| Protection Degree: |
IP67 |
| Test: |
100% Full Load in Test |
| Dimension: |
M8*25mm |
| Sensing Range: |
1mm |
| Flush Type: |
Yes |
| Manufacturer: |
Yueqing Winston Electric Co.,Ltd |
| Type: |
Namur Sensor |

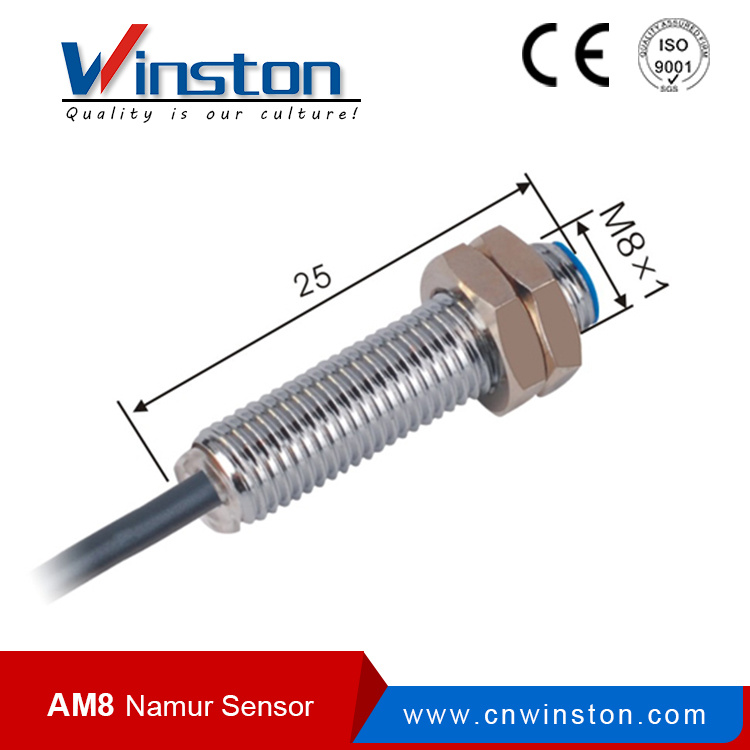

Product Description
Professional supplier, not only can OEM, also can ODM, Already got CE.
Diameter: M8, M12, M18, M30, Detection object: Q235 Steel. Rated voltage: 8.2VDC. IP67. Two wire, flush type and non-flush type; Detection distance: 1mm, 2mm, 4mm, 5mm, 8mm, 10mm, 15mm
Technical Parameters:
| Model | Two-wire normally close | AM8-3001LB |
| Specification | Rated Vollage | 8.2V |
| Sensing Range | 1mm |
| Standard Object Q235 steel(mm) | 12*12*1t |
| Oscillating /Stop Pscillating Current | ≥2.2mA/≤1mA |
| load resistance | 1KΩ |
| Switch frequency, Flush | 1.5Hz |
| Shell material | Nickel-plated brass |
| Protection Level | IP67 |
| working environment temperature | -20ºC~70ºC |
| External wiring diagram | |
Namur sensor, also called safety explosion proof proximity switch, is made according to NAMUR and DIN 1923, measured and designed as per chemical industry standard.
