American Standard Double USB Wall Socket, Wall Switch, Outlet

Name: American Standard Double USB Wall Socket, Wall Switch, Outlet
Brand: all-electronics-online.com
SKU: 819626855
Availability: InStock
Rating: 4.3 (142 reviews)

Price:	US $ 4.5-6/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LK-OM017
Color:	White/ Black/ Gold/Silver
Sample:	Avaliable
Grounding:	Standard Grounding
Type:	With Switch
Application:	Residential/General-Purpose
IP Rating:	IP22
Brand:	OEM

Product Description

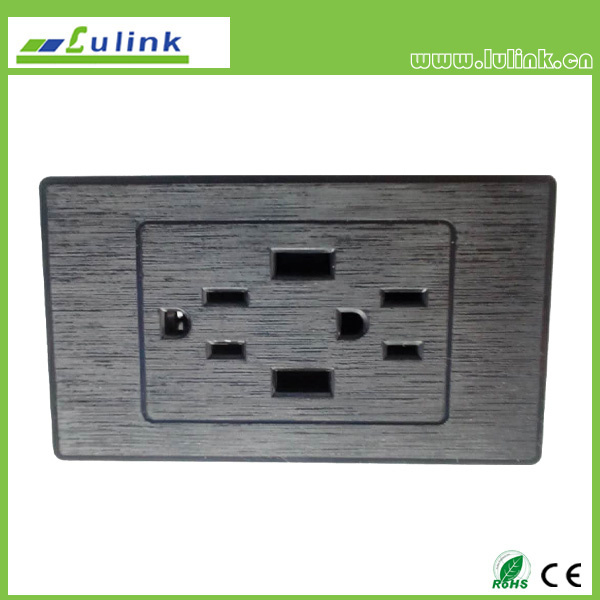

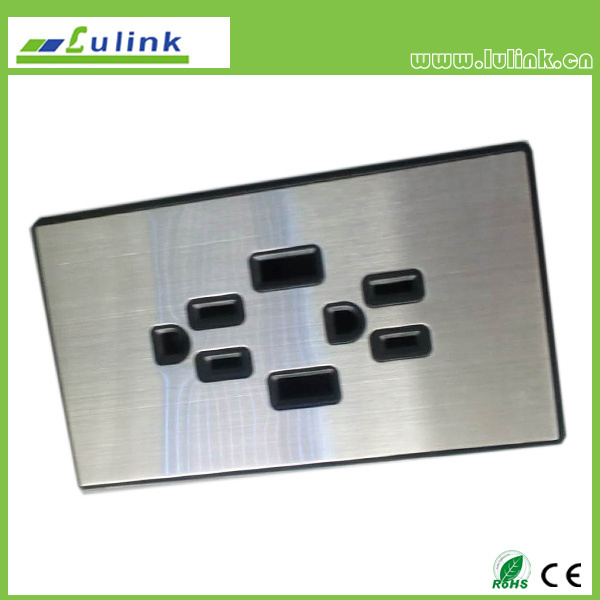

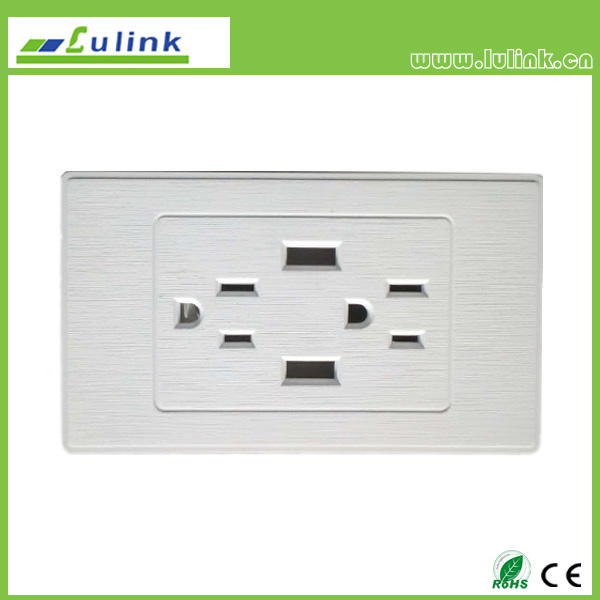

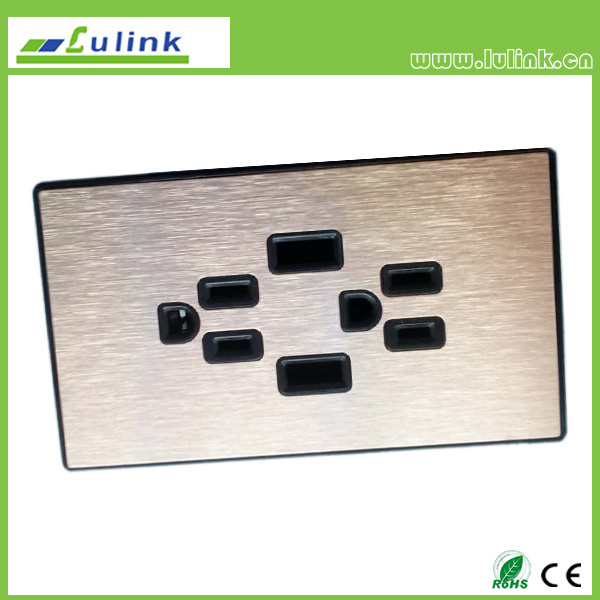

American Standard Double USB Wall Socket, Wall Switch, Outlet

Specification:
AC:150V/15A 50/60HZ
Max Power:5000W
Socket: 2 way US Standard Socket
Material: tin phosphor bronze; flame retardant PC plastic.
USB Output:2 port
USB output: DC 5V/2A
USB Charge Protect: Overload protect
USB Charge Object: Phone
Color: White/Black/Gold/Silver

Package and Transportation

Packing quantity: 100 pcs / 10 boxes / carton

Carton size: 525 mm (L) * 340 mm (W) * 210 mm (H)
NW/GW: 8.5KG/10.0KG
Accessories: non woven bag, screw, warranty card
OEM / ODM Services: Custom Packaging, Trademarks or Other Requirements
Installation Procedure and Attention:
Step 1, Cut off AC power, open the USB socket outlet faceplate, take down 2 screws with screw driver.
Step 2, According the connection diagram to wiring well:Plug the Red, Blue and Green wires into L,N, E
Holes separately and then lock it tightly with screw driver.
Step 3, Flat place onto 86 type base socket, and screw tight two screws with screw driver, Close the faceplate of USB socket.
Step 4, AC power on, to check the function of USB ports, connect mobile phone via USB cable into USB
Port, the phone will detect the USB connection.
Step 5, Connect USB charger to smart products, the indicated LED onto smart products will be
Illuminated, the battery show charging logo is normal, if no charging logo show out, please double check the connection or change another USB cable to try.After battery is charged fully, the indicated,LED will be off.
