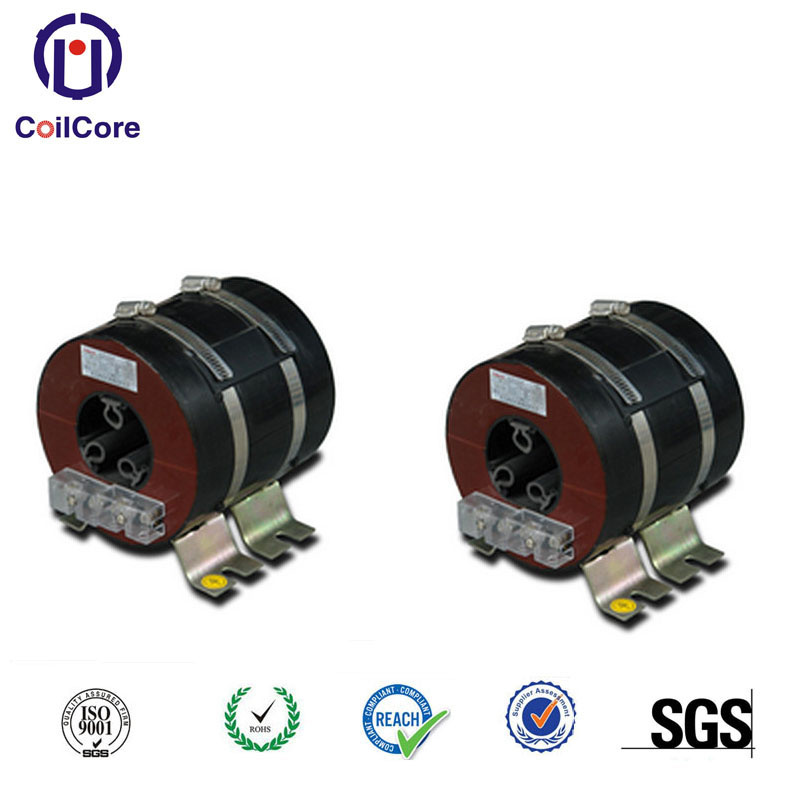

Amk (1) 8 Open Core Current Transformer

Name: Amk (1) 8 Open Core Current Transformer
Brand: all-electronics-online.com
SKU: 785403695
Availability: InStock
Rating: 4.3 (56 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AMK(1)8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Lighting
Type:	Current Transformer
Phase:	Single and Three

Product Description

TECHNICAL DATA

It is suitable for 35kV power system, the primary main insulation is ensured by cables.

The products accord with the standards of GB1208-2006,IEC60044-1:2003 and some special demands

Rated Voltage 0.5kV

Rated frequency 50Hz

Rated secondary current 5or1A

Ambient temperature -5ºC~+40ºC

Rated transformation ratio	Accuracy classes - Rated output
Rated transformation ratio	0.2	0.5	1	10P5	10p10
30/1~100/1		1~3	1.5~3.75	1~2
150/1~200/1	1~2	3.75	5	3	2
300/1~400/1	2.5	5~7.5	7.5	1~2	2~2.5
50/5~100/5		2.5~5	3.75~5	2.5~3.75
200/5~300/5	2~3.75	10~15	15~20	10	7.5
400/5~500/5	5~7.5	15~20	15~20	15	10
600/5	10	25	30	20	15

Note:If user's data go beyond the above mentioned scopes,they may be subject to an agreement
between manufacturer and purchaser.

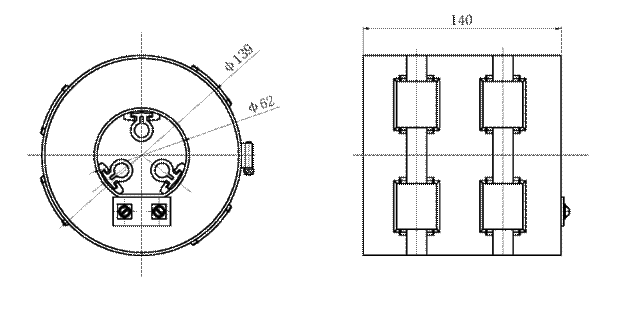

Overall dimensions
