| Prod Model: |
XP-TT-49 |
| Application: |
Electronic |
| Phase: |
Single |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Certification: |
RoHS |
| Brand: |
XP Power |

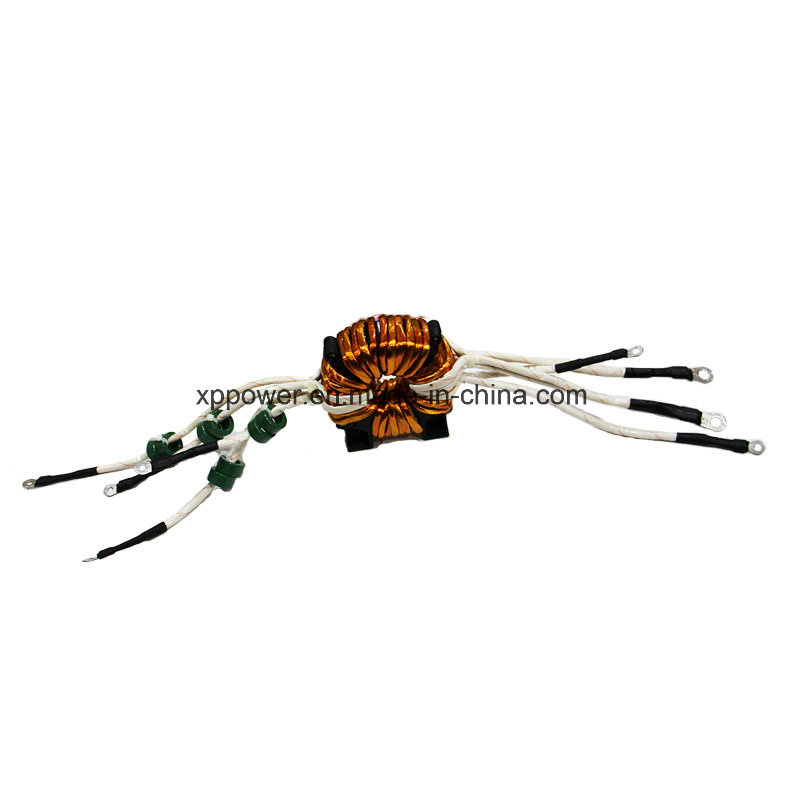

Product Description
Product Features:·Core
:Amorphous
,Nanocrystalline
·Small volume
,low loss
(between 2~20μΗ
)·Reasonable design
,compact structure
,close coupling
,easy installation
·Good heat dissipation
,low temperature rise
,high efficiency
(>=99%
),energy saving
·Load sustainability rate 100%
,pressure resistance
>=10000V
·Good insulation between primary and secondary
Applications:Power Supply
, Inverter Welding Machine
, High Power Charger Power Supply
, Electric Vehicle Charging Equipment
, High Frequency Power Supply
, Switching Power Supply
, UPS Power Supply.
Specifications:| Model | Core Size
(mm) | Case Size
(mm) | Section
Area
S(cm²) | Length of
Magnetic Circuit
L(cm) | Recommended
Power
P(f=20kHz)
(kw) | Current Applicable |
| OD | ID | H | OD | ID | H |
| XP -64-40-20 | 64 | 40 | 20 | 66 | 37 | 23 | 1.68 | 16.3 | 2-4 | |
| XP -68-43-20 | 68 | 43 | 20 | 72 | 40 | 24 | 1.75 | 17.4 | | |
| XP -80-50-25 | 80 | 50 | 25 | 85 | 44 | 30 | 2.63 | 20.4 | 4.5 | 100/120A |
| XP -100-60-20 | 100 | 60 | 20 | 105 | 56 | 23 | 2.80 | 25.1 | 4-5 | 160/200A |
| XP -104-60-30 | 104 | 60 | 30 | 110 | 57 | 35 | 4.38 | 25.9 | | 315A |
| XP -104-60-35 | 104 | 60 | 35 | 110 | 57 | 40 | 5.25 | 25.9 | | 400A |
| XP -105-60-40 | 105 | 60 | 40 | 110 | 57 | 45 | 6.3 | 25.9 | | 400/500A |
| XP -120-60-30 | 120 | 60 | 30 | 125 | 57 | 35 | 6.30 | 29.8 | 8-15 | 400/500A |
| XP -120-70-30 | 120 | 70 | 30 | 125 | 67 | 35 | 5.25 | 29.8 | 6-10 | 315-400A |
| XP -120-70-40 | 120 | 70 | 40 | 125 | 68 | 45 | 7.0 | 29.8 | | 500A |
| XP -130-80-40 | 130 | 80 | 40 | 136 | 76 | 45 | 7.00 | 33.0 | 15-20 | 400/500A |
| XP -130-80-50 | 130 | 80 | 50 | 136 | 76 | 55 | 8.75 | 33.0 | 23-25 | 500/630A |
| XP -130-90-50 | 130 | 90 | 50 | 136 | 85 | 56 | 7.00 | 34.5 | 15-20 | 630A |
| These are the standard models of our power transformer cores. We can design and manufacture customized transformer with specific requirements. |
How to make a sample:·Provide output and input of transformer
·Required pressure resistance
·Dimensions (outside diameter
,height
,lead)
·Copper wire or aluminum wire
·The cost of samples will be deducted after ordered.
·Our company will recover unqualified samples and pay for the freight.
