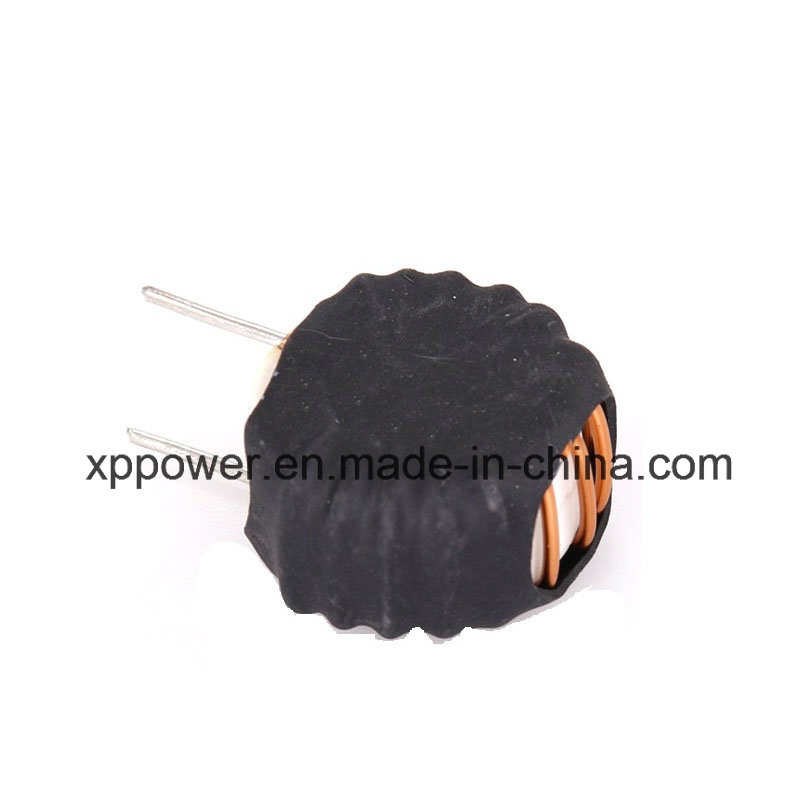

Amorphous Choke Coil with Heat Shrink Tube

Name: Amorphous Choke Coil with Heat Shrink Tube
Brand: all-electronics-online.com
SKU: 819870705
Availability: InStock
Rating: 4.8 (136 reviews)

Price:	US $ 0.1-0.2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XP-ACL-112
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	XP Power

Product Description

Basic Info

Model NO.:XP-ACL-112 Brand: XP Power
Magnetic liquid: Copper Coil Working Frequency: High Frequency

Features

1. Used in power conversion and line filter widely.
2. Copper wire wound around the coil.
3. Cost design.
4. Hand around the small size, machine around the large size.
5. High saturation current.
6. Can be coated with varnish (clear plastic).
7. Lead-free.

Application

Power line filtering, Normal mode choke, EMI / FRI for switch mode power supplies, Saturable reactors, Oscillating transformer, Solar inverters, Mag-AMP, Power supplies for network products (HUBS, etc)

Electrical Specifications

Part NO.	Inductance (μH) @1 KHz	I rated (A) (Max)	DCR(Ω) (Max)	Dimension (mm)
Part NO.	Inductance (μH) @1 KHz	I rated (A) (Max)	DCR(Ω) (Max)	A(Max)	B(Max)	C(Max)	D(Max)	E(Nom)	F(Max)
2026-5R0M	5.0	0.5	0.007	8.0	4.5	4.3	7.8	0.30	15
2026-9R0M	9.0	0.3	0.011	8.0	4.5	4.3	7.8	0.25	15
2026-150M	15.0	0.5	0.070	8.0	4.5	4.3	7.8	0.30	15
2026-200M	20.0	0.2	0.198	8.0	4.5	4.3	7.8	0.20	15
2026-270M	27.0	0.3	0.031	8.0	4.5	4.3	7.8	0.25	15
3026-100M	10.0	2.0	0.017	12.0	7.0	6.7	11.7	0.60	15
3026-120M	12.0	1.0	0.040	12.0	7.0	6.7	11.7	0.45	15
3026-320M	32.0	1.0	0.065	12.0	7.0	6.7	11.7	0.45	15
3026-370M	37.0	0.5	0.134	12.0	7.0	6.7	11.7	0.30	15
3026-141M	140.0	0.5	0.265	12.0	7.0	6.7	11.7	0.30	15
3726-8R2M	8.20	2.0	0.017	14.5	8.0	7.5	14.0	0.60	15
3726-220M	22.0	2.0	0.030	14.5	8.0	7.5	14.0	0.60	15
3726-240M	24.0	1.0	0.055	14.5	8.0	7.5	14.0	0.45	15
3726-560M	56.0	0.5	0.181	14.5	8.0	7.5	14.0	0.30	15
3726-680M	68.0	1.0	0.095	14.5	8.0	7.5	14.0	0.45	15
3726-241M	240.0	0.5	0.360	14.5	8.0	7.5	14.0	0.30	15
4426-150M	15.0	2.0	0.023	16.0	9.0	8.5	15.0	0.60	15
4426-430M	43.0	1.0	0.074	16.0	9.0	8.5	15.0	0.45	15
4426-680M	68.0	2.0	0.056	16.0	9.0	8.5	15.0	0.60	15
4426-111M	110.0	0.5	0.250	16.0	9.0	8.5	15.0	0.33	15
4426-141M	140.0	1.0	0.140	16.0	9.0	8.5	15.0	0.45	15
4426-361M	360.0	0.5	0.460	16.0	9.0	8.5	15.0	0.33	15
5026-200M	20.0	3.0	0.021	18.0	11.5	11.0	17.5	0.70	15

We can design and manufacture customized part with specific requirement.

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
