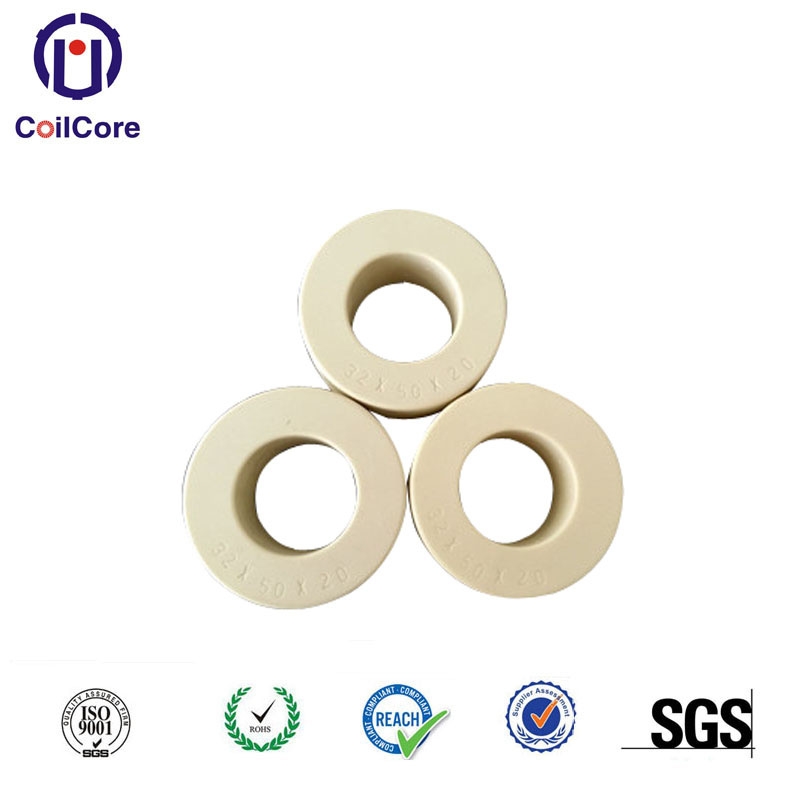

Amorphous Core with High Temperature Resistant Magnetic Core

Name: Amorphous Core with High Temperature Resistant Magnetic Core
Brand: all-electronics-online.com
SKU: 819024845
Availability: InStock
Rating: 4.8 (49 reviews)

Price:	US $ 0.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

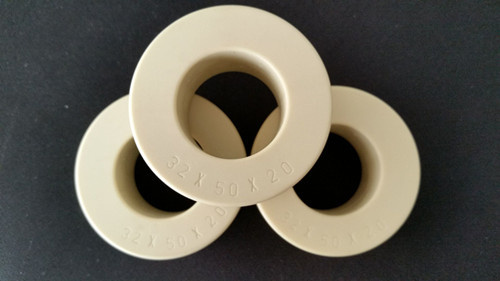

Prod Model:	CORE AM 32x50x20
High Saturation Magnetic Induction:	Low Core Loss
Good Temperature Stability:	High Permeability
Application:	Audio
Type:	Voltage Transformer
Phase:	Single and Three

Product Description

Special plastic case immune more than 150 degree centigrade , permeability is 5000
1. Brief introduction:
Current transformer of power system plays an important role in providing a current in its
secondary winding proportional to the alternating current flowing in its primary. They are commonly
used in metering and protective relaying in the power plants and substations where they facilitate
the safe measurement of large currents, often in the presence of high voltages.
The current transformer safely isolates measurement and control circuitry from the high voltages
typically present on the circuit being measured.
Comparing with the traditional core material, such as silicon steel and permalloy,Iron based
nanocrystalline alloy takes the advantage of high permeability and low cost, and is thus more
competitive in the application of precise current transformer with 0.2, 0.2s, and 0.1 accuracy class,
Bushing current transformer fr Epoxy resin cast, Gas insulated or oil-immersed switchgears,
LV, MV and HV switchgear, and other apparatus in electric power transmission and distribution system.

2. Characteristics

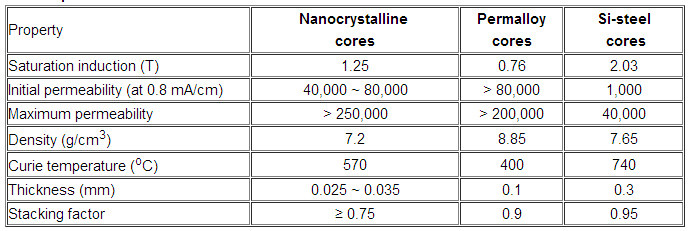

2.1 Comparison of different core materials

- Excellent thermal stability―Can work at -55~130^oC for a long time2.2 Advantages of nanocrystalline alloy core
- High permeability―smaller error in the measurement of current
- High saturation Induction ― smaller size and lighter weight when compared to Permalloy

- Low cost―Ideal for replacing commercial permalloy cores

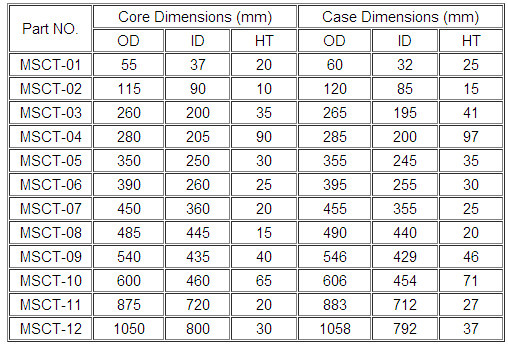

3. Specification: (Case material: stainless steel)

Note: Cores of other specifications are available upon request

.
