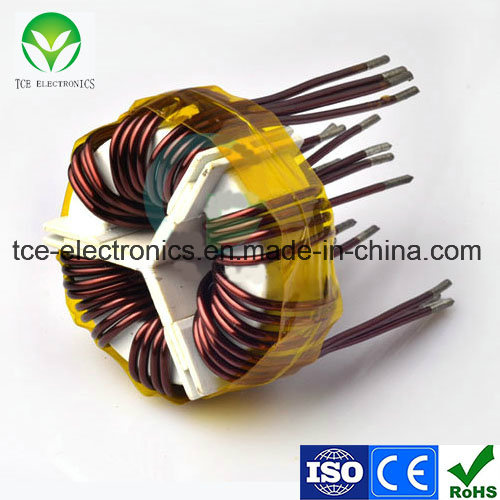

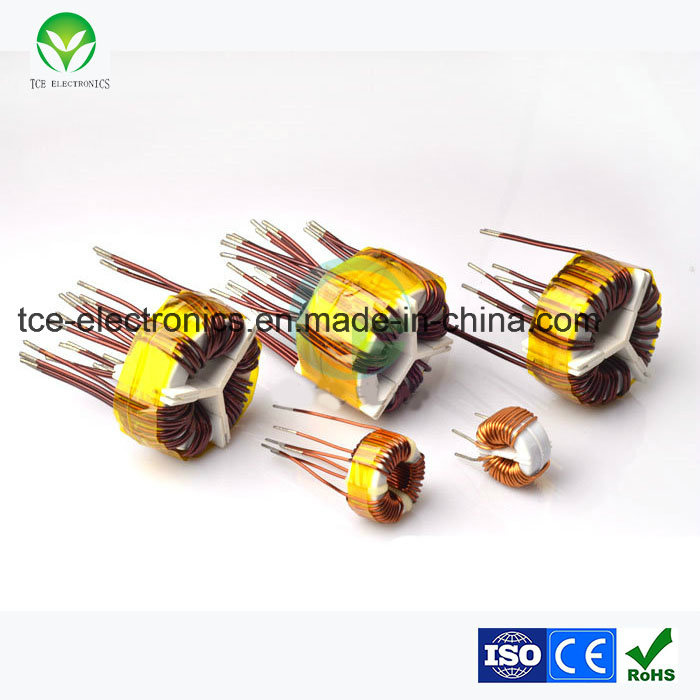

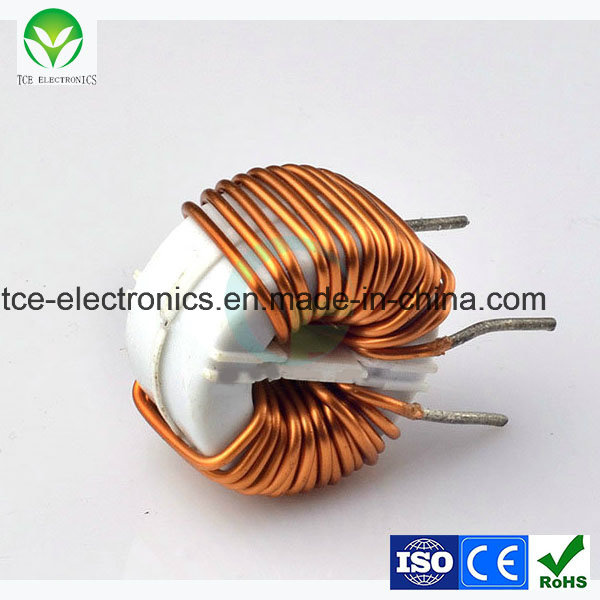

Amorphous Magnetic Ring Coil Inductor for Power Supply

Product Description

1. working frequency:60Hz-500KHz
   2. output power:1 to 30000 W
   3.working temperature:-40ºC to +200ºC
   4. storage temperature:-25ºC to +85ºC
   5. Storage humidity:30 to 95% Application of amorphous magnetic ring coil
   Widely used in high power inverter, high frequency transformer, power transformer, switching power supply transformer, switch power supply, data exchange interface unit, pulse transformer, UPS power filter and storage power supply, power factor correction, standard choke choke, AC power, SCR, EMI, differential mode and common mode inductor the output filter inductance, magnetic saturation reactor, magnetic amplifier, peak suppressor, choke coil, current and voltage transformer, zero sequence current transformer, leakage switch transformer, induction anti-theft tags etc.
    Characteristics of amorphous magnetic ring coil
   Fe based amorphous alloy: the main elements are iron, silicon, boron, carbon, phosphorus and so on. They are characterized by strong magnetism (saturated magnetic induction intensity up to 1.4-1.7T), price of permeability, exciting current and loss is better than that of the soft magnetic properties of silicon steel sheet, cheap, the most suitable alternative to silicon steel, especially low iron loss (for 1/3 oriented silicon steel sheet 1/5), instead of silicon steel do distribution transformer can reduce the loss of 60-70%. The iron based amorphous alloy has a strip thickness of about 0.03 mm and is widely used for cores of medium and low frequency transformers (typically below 10 thousand Hz).
   The iron nickel based amorphous alloy is mainly composed of iron, nickel, silicon, boron, phosphorus, etc., they are relatively weak (magnetic saturation magnetic induction intensity is about 1T or less), the price is more expensive, but the relatively high permeability, can replace the silicon steel sheet or permalloy, used in the low frequency transformer high requirements. For example, leakage switch transformer.
   The cobalt based amorphous alloys by cobalt and silicon, boron and other components, sometimes in order to obtain some special properties of other elements added, due to containing cobalt, they are expensive, (weak magnetic saturation magnetic induction intensity generally below 1T), but high permeability, generally used in military power in strict transformer, inductor, substitute permalloy and ferrite.
   Nano soft magnetic alloys: Fe based nanocrystalline alloys consist of iron, silicon, boron and a small amount of copper, molybdenum and niobium, among which copper and niobium are essential elements for obtaining nanocrystalline structures. They are first made into amorphous ribbons and then annealed to form microcrystalline and amorphous mixed structures. This material is cheap, but the excellent magnetic properties of cobalt based amorphous alloys, comparable to the best and almost amorphous alloy, but does not contain expensive Co, is an ideal material for industrial and civil use in high frequency transformer, transformer, inductance, and replacement of permalloy and ferrite
