Product Description

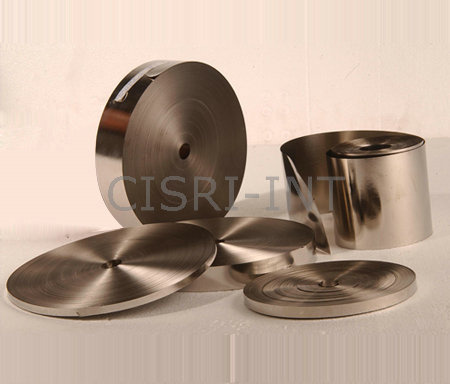

Amorphous & Nano-crystalline Ribbons
We produce iron-based amorphous ribbons for distribution transformer cores.
Amorphous ribbons for distribution transformers are superior to silicon steel in energy conservation. The no-load loss of SH15 amorphous distribution transformers is 60%-80% lower than SH11 silicon steel transformers.
We also produce iron-based amorphous, cobaltbased amorphous and nanocrystalline ribbons for a
Variety of electromagnetic components in electric and electronic fields.
Application Field:
Medium frequency transformer cores in heating equipment
Toroidal gapless cores as SMPS output inductors, differential input inductors
Toroidal gapless cores as noise preventive chokes in car audio, car navigation system
Toroidal gap cores for PFC use in air conditioner, plasma TV set
High frequency rectangular cut cores as output inductors and transformers in SMPS, UPS etc.
Toroidal gapless cores as pulse transformer for driving IGBTs, MOSFETs and GTOs
Amorphous stators and rotors in high power density variable speed electric motors and generators
Characteristics:
Highest saturate induction among amorphous alloys- Reduce component volume
Low coercivity- Promote component efficiency
Low core loss- Reduce device temperature rise
Variable permeability - Satisfy the various application requirements depending on different core heat treatment
Excellent stability- Having highest serving temperature of 130° C
Characteristics:
Physical properties
| Saturate induction | 1.56T | Hardness Hv | 960kg/mm 2 | | Curie Temperature | 410°C | Density | 7.18g/cm 3 | | Crystallization Temperature | 535°C | Resistivity | 130μΩ-cm | | Saturate magnetostriction | 27x10 -6 | | |
|
Magnetic properties:
| Product type | Transverse field annealed | No field annealed | Longitudinal field annealed | | Maximum permeability | >2x104 | >20x104 | >25x104 | | Saturate induction | 1.5 T | 1.5 T | 1.5 T | | Remanance | <0.5 T | 1.0 T | 1.2 T | | Coercivity | <4A/m | <2.4 A/m | <4A/m | | Core loss (50Hz, 1.4T) | <0.2W/kg | <0.13W/kg | <0.3W/kg | | Core loss (400Hz, 1.2T) | <1.8W/kg | <1.25W/kg | <2W/kg | | Core loss (8kHz, 1.0T) | <80W/kg | <60W/kg | <100W/kg | | (-55_125 degrees ) | <15% | <15% | <15% | | DP/P(120°C´200Hours) | <15% | <15% | <15% |
|
Comparison of Fe-based amorphous ribbons and silicon steel
| Material | Fe-based amorphous | Silicon steel | | Saturate induction(T) | 1.56 | 2.03 | | Coercivity(A/m) | <4 | <30 | | Maximum permeability | >25x10 4 | 4x10 4 | | Core loss (W/kg) | 50Hz, 1.3T,P<0.2 | 50Hz, 1.7T,P=1.2 | | Exciting power(VA/kg) | 50Hz, 1.3T,P<0.5 | 50Hz, 1.7T,P<0.83 | | Stacking factor | 0.84 | 0.95 | | Magnetostriction (´10-6) | 27 | - | | Resistivity (Wm-cm) | 130 | 45 | | Density (g/cm3) | 7.18 | 7.65 | | Crystallization temperature(degrees ) | 535 | - | | Curie temperature (degrees) | 415 | 746 | | Strength (Mpa) | 1500 | 343 | | Hardness (HV) | 900 | 181 | | Thickness (μm) | 30 | 300 |
|
Specifications:
| Part No. | Width, mm | Thickness, mm | Processing status | | RF1-0050 | 5±0.05 | 29±3 | Slit ribbon | | RF1-0065 | 6.5±0.05 | 29±3 | Slit ribbon | | RF1-0080 | 8±0.05 | 29±3 | Slit ribbon | | RF1-0100 | 10±0.05 | 29±3 | Slit ribbon | | RF1-0150 | 15±0.05 | 29±3 | Slit ribbon | | RF1-0200 | 20±0.1 | 29±3 | Slit ribbon | | RF1-0250 | 25±0.1 | 29±3 | Slit ribbon | | RF1-0300 | 30±0.1 | 29±3 | Slit ribbon | | RF1-0400 | 40±0.1 | 29±3 | Slit ribbon | | RF1-0500 | 50±0.1 | 29±3 | Slit ribbon | | RF1-0640 | 64±1 | 29±3 | Cast ribbon | | RF1-1000 | 100±1 | 29±3 | Cast ribbon |
|
China Iron & Steel Research Institute Group (CISRI) is a Chinese state-owned enterprise incorporated by former Central Iron & Steel Research Institute of China and former Automation Research Institute of China.
For the last 60 years, CISRI is serving as an important R&D base and a leading provider of advanced materials and products in China. CISRI owns a broad spectrum of technical know-how and advanced products in various industrial fields such as functional materials, powder metallurgy materials, refractory metals, high temperature alloys and structural materials.
CISRI owns 8 production bases and more than twenty production lines all over China. We have China' S largest amorphous and nanocrystalline alloy production base, China' S largest flux-cored welding wire production base, China' S largest export-oriented production base of diamond blades, China' S first-class production facility for high temperature alloys and products, ect.
With 12 holding companies and 12 national centers and institutions, CISRI also serves as the innovation base for key technology in metallurgical industry, and the authoritative agency for metallurgical analysis and test.
