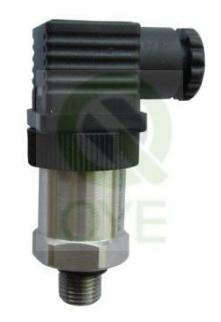

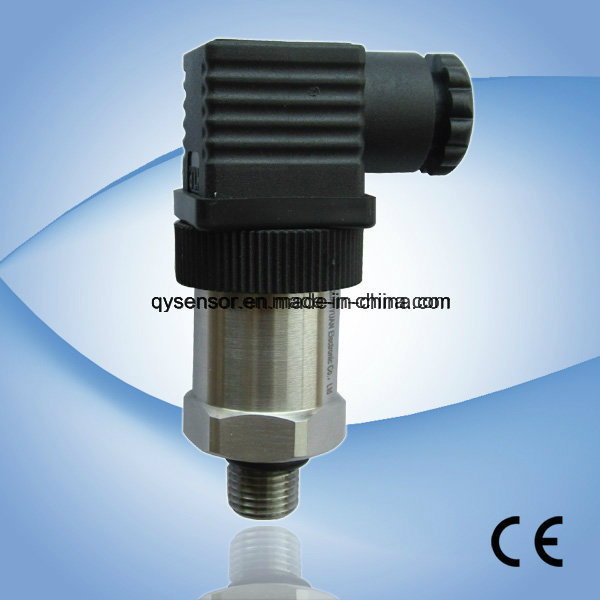

Analog Output Ceramic Core Pressure Sensor (QP-83C)

Name: Analog Output Ceramic Core Pressure Sensor (QP-83C)
Brand: all-electronics-online.com
SKU: 792235305
Availability: InStock
Rating: 4.7 (150 reviews)

Price:	US $ 28/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-83C
Material Of Diaphragm:	Stainless Steel
Power Supply:	4~20mA
Connect Type:	G 1/4,Zg1/4,M201.5,M141.5
Environment Protection:	IP65
Pressure Range:	0~35kpa....0~500kpa....0~2 MPa

Product Description

Analog Output Ceramic Core Pressure Sensor (QP-83C)

Model: QP-83C
Range: 0~0.5MPa, 0~0.6MPa, 0~1MPa, 0~1.6MPa, 0~2MPa, 0~2.5MPa, 0~3MPa, 0~4MPa, 0~5MPa, 0~10MPa, 0~16MPa, 0~20MPa

Feature:
It has a strong corrosion resistance
Good stability
Integral structure, easy installation
Be suitable for a wide range of using
The range of medium temperature: -20ºC~100ºC
The range of high temperature: -30ºC~150ºC(Customized)
Adopting high precision components, it's will to work in the harsh environment.

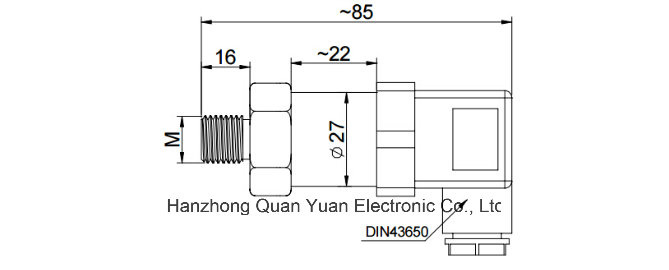

Dimensions: (unit: mm)

Ordering code: model- range&type-signal output-accuracy-pressure connection-electrical connection-defend grade-the other requests.

Example: QP-83C-0/16MPaG-4/20mA-0.5%FS-G1/4-DIN43650-IP65-***

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
