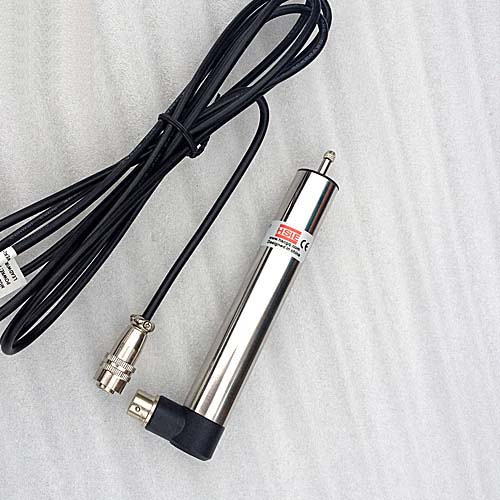

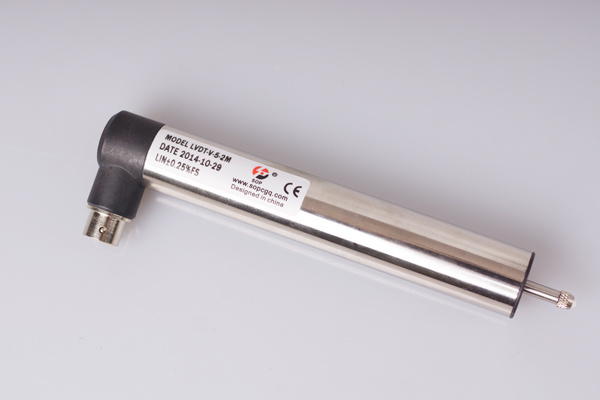

Analog Output DC Rebound Displacement Sensor for Sale

Name: Analog Output DC Rebound Displacement Sensor for Sale
Brand: all-electronics-online.com
SKU: 820837655
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 120-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Lvtd-100mm
Dymatic Characteristics:	Max 10Hz
Power Supply:	9-28V
Application:	Engineering Machinery
Output:	Digital
Material:	Aluminum Alloy

Product Description

Digital Output Dc Rebound Displacement Sensor for Sale

Aluminum alloy shell, lightweight appearance
Nti-corrosion and anti rust, usage is very long
engineering machinery, rubber machinery

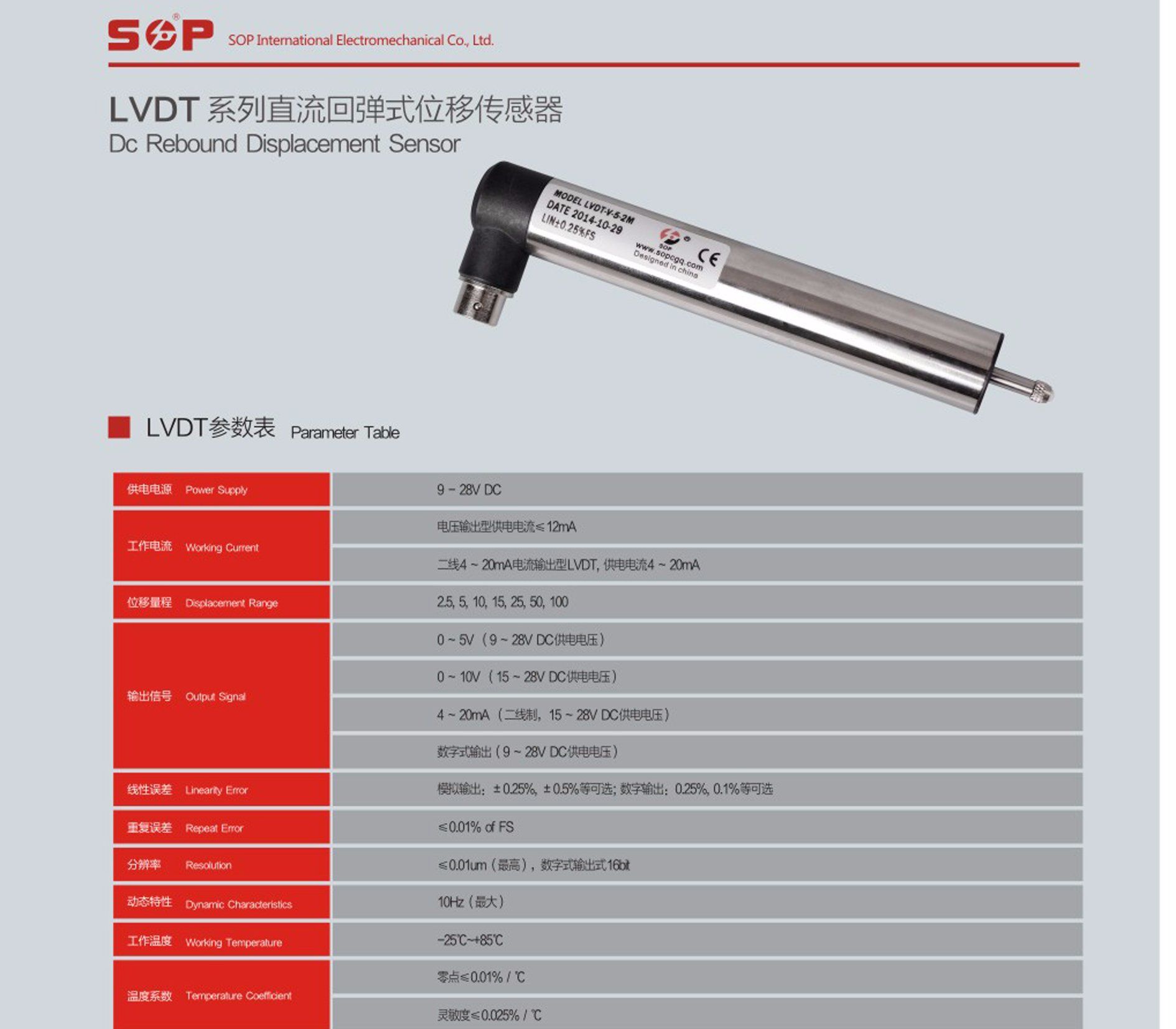

Power supply	9-28V DC
Working current	Voltage output model , supply current ≤12mA
Working current	Two wires4-20mA current output model, supply current 4-20mA
Displacement range(mm)	2.5,5,10,15,25,50,100
Output signal	0-5V( 9-28V DC supply voltage )
	0-10V(15-28V DC supply voltage )
	4-20mA(two wires , 15-28V DC supply voltage)
	Digital output (9-28V DC supply voltage)
Linearity error	Analog output:±0.25%,±0.5% or others, digital output:0.25%,0.1% or others
Repeat error	≤0.01%of FS
Resolution	≤0.01µm(most ),digital output: 16bit
Dynamic characteristics	10Hz (most )
Working temperature	-25°C~+85°C
Temperature coefficient	Zero poit ≤0.01%/°C
Temperature coefficient	sensibility≤0.025%/°C

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.

13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.

Package:

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
