Analog Output Differential Pressure Transducer Ppm-T127j

Name: Analog Output Differential Pressure Transducer Ppm-T127j
Brand: all-electronics-online.com
SKU: 820077645
Availability: InStock
Rating: 5 (42 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ppm-T127J
Pressure Range:	0~25PA~5kpa~7MPa
Certification:	CMC

Product Description

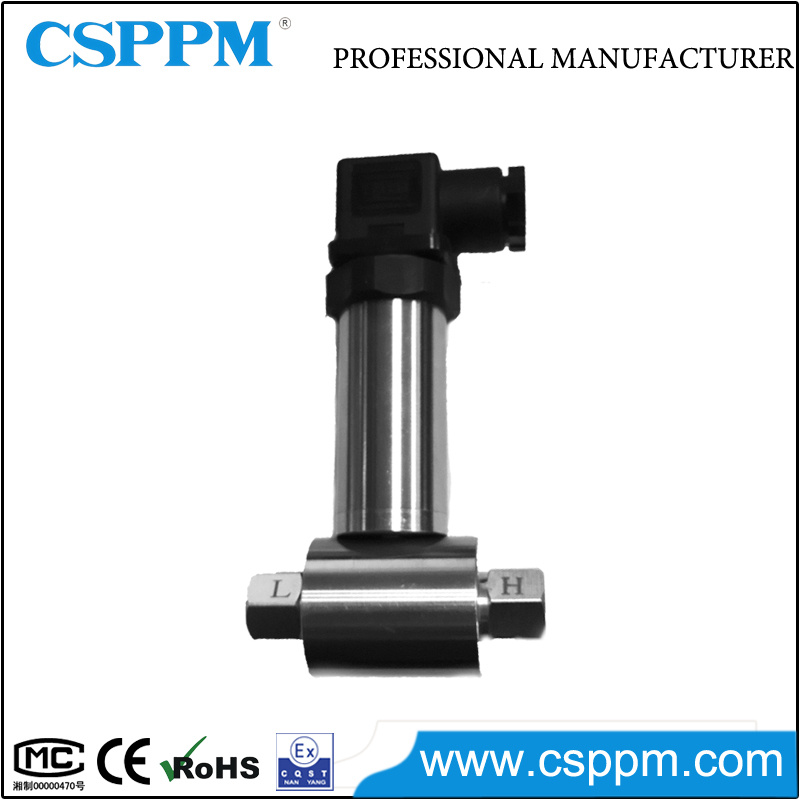

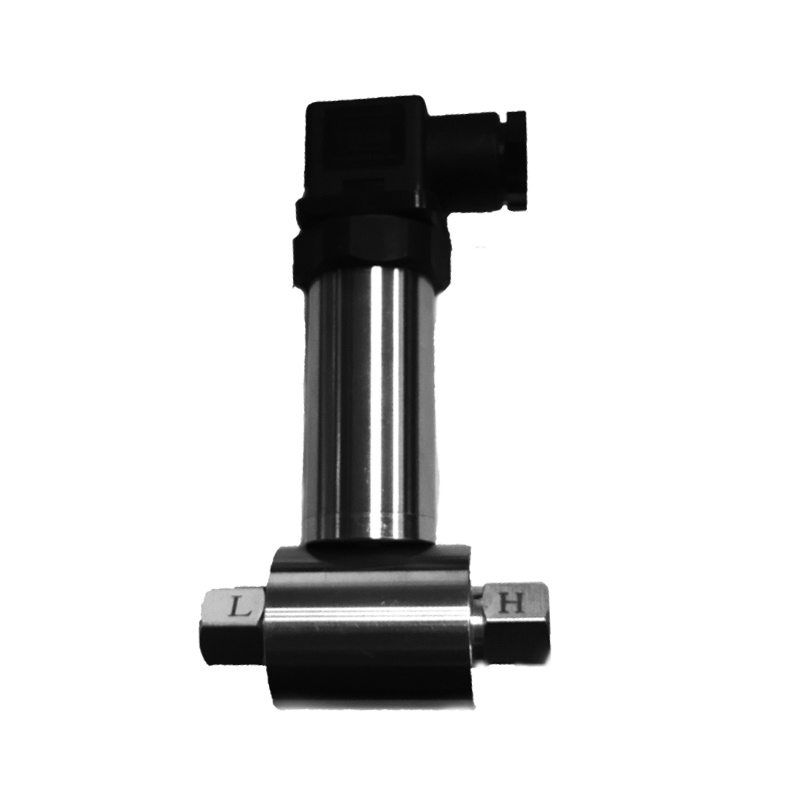

Differential Pressure Transmitter PPM-T127J

Description
PPM-T127J Differetial Pressure Transmitter adopts MEMS technology and silicon piezoresistive differential pressure sensor. All stainless steel construction and 316L isolated diaphragm make it suitable for differential pressure measurement in different conditions. Various kinds of process connection and electric connection are optional. Zero and span can be adjusted outside.

Features
1. Small size and convenient installation.
2. Good anti-vibration.
3. High stability and reliability.
4. Various output signal: 4-20 mA, 0-5 VDC, 1-5VDC, 0-10 VDC

Applications
1. Oil and chemical industry.
2. Water supply and drainage engineering, water treatment equipment.
3. Differential pressure measurement of liquid, gas, steam.

Specifications

Measuring medium	Gas, liquid, steam
Pressure type	Differential pressure(D)
Pressure range	0~25Pa~5kPa~10kPa~2MPa~4MPa~7MPa
Max. static pressure	≤20MPa
+ overpressure	200%FS
- overpressure	100%FS
Power supply	10-32VDC
Output signal	4-20 mA, 0-5 VDC, 1-5VDC, 0-10VDC optional
Nonlinearity	0.05%
Repeatability	0.05%
Accuracy	±0.1%FS, ±0.2%FS, 0.5% optional
Long-term stability	0.2%FS/year
Operation Temp.	-43~80ºC/125ºC/150ºC
Compensation Temp.	-25~70ºC/100ºC
Response time	≤1ms
Insulation resistance	≥500 MΩ/100V
Process connection	M20×1.5 ,1/4NPT , G1/4
Materail	17-4PH ,316L, 1Cr18Ni9Ti stainless steel, fluorine rubber
Vibtration effect	≤1% at 3gRMS, (30~2000)Hz
Shock effect	≤1% at 100g, 50ms
Ingress protection	IP65
Electric connection	L-connector

Dimensions

Order information

Model PPM-T127J Differential Pressure Transmitter
	Code	Pressure type
	D	Differential pessure
		Code	Pressure ranges
		M	0~ X MPa
		K	0~ X KPa
		P	0~ X Pa
			Code	Accuracy
			1	±0.5%FS
			2	±0.25%FS
			3	±0.1%FS
				Code	Output signal
				A1	4~20mA
				V1	0~5V DC
				V2	1~5V DC
				V4	0~10V DC
					Code	Operation temperature
					T1	-10~70ºC
					T2	-25~85ºC
					T3	-30~125ºC
					T4	-45~150ºC
						Code	Power supply
						D3	24VDC(9-32)VDC
							Code	Process connection
							M1	M20x1.5
							M2	M14 x1.5
							M3	M10x1
							G1	G1/4
							G2	G1/2
							N1	1/4NPT
							N2	1/2NPT
							F0	Other
								Code	Electrical connectiong
								W2	L-connector
									Code	Other
									P1	Commom
									P2	Non-cavity diaphragm

CHANGSHA TAIHE ELECTRONIC EQUIPMENT Co., Ltd is specialized in manufacturing and selling pressure sensors, transmitters, automation instrument and system.

Based on Central South University (CSU), a very famous University in China, and making full use of its unique resources, TAIHE has became a powerful economic entity with the integrated of research, production, sales and service. We have a professional and experienced team, and most of them have been engaged in sensor and control system for many years.

We can provide different kinds of pressure, level, temperature sensors, transmitters etc. And we devote to the development of sensor and transmitter products. With the excellent performance and reliable quality, our sensors and transmitters have been widely applied to mining, petroleum, smelting, chemical industries and other fields. And we are also able to satisfy the customized specification and designs according to specified requirements of clients.

Adhering to value of "Customer First, Innovation, Cooperation", we keep improving our products and service.

Looking forward to be your best sensor and transmitter supplier!
