| Prod Model: |
LE40XZSF10LUM-D |
| Material: |
Plastic |
| Rotection Degree: |
IP 67 |
| Mounting: |
Flushed/ Non-Flushed |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Wires: |
NPN/PNP |
| Application: |
Position Sensor, Speed Sensor |
Product Description

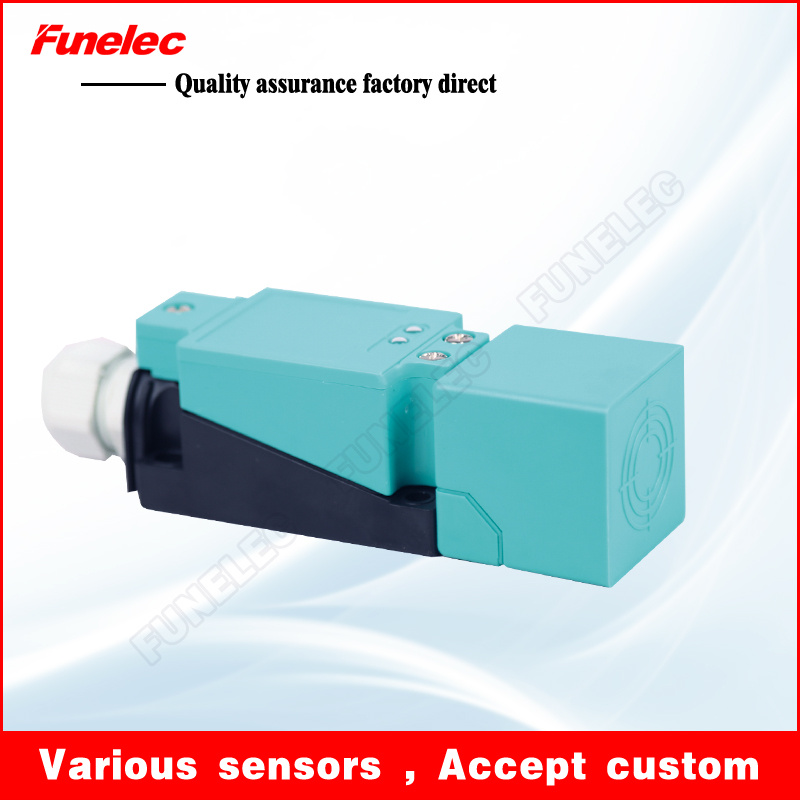

| Plastic square shape inductive sensors LE40XZ series |
Features
Providing equivalent signal output along with target position;
0-10V, 0-20mA, 4-20mA analog output;
Perfect choice for displacement and thickness measurement; |
|
|
|
|
|
| Part number |
| 0-10V LE40XZSF10LUM-D LE40XZSN15LUM-D | 4-20mA LE40XZSF10LI4M-D LE40XZSN15LI4M-D |
| 0-20mA LE40XZSF10LIM-D LE40XZSN15LIM-D | 0-10V + 0-20mA LE40XZSF10LIUM-D LE40XZSN15LIUM-D |
| Technical specifications |
| Mounting Flush Non-flush | Leakage current [lr] ≤20mA |
| Rated distance [Sn] 10mm 15mm | Circuit protection Reverse polarity protection |
| Sensing distance 2…10mm 3…15mm | Output indicator Yellow LED |
| Dimensions 40 mm *40 mm *140 mm | Ambient temperature -25ºC…70ºC |
| Output Current, voltage or current+voltage | Ambient humidity 35-95%RH |
| Supply voltage 15…30 VDC | Switching frequency [F] 100 Hz 50 Hz |
| Standard target Fe 40*40*1t Fe 45*45*1t | Voltage withstand 1000V/AC 50/60Hz 60s |
| Switch-point drifts [%/Sr] ≤±10% | Insulation resistance ≥50MΩ(500VDC) |
| Linearity ≤±5% | Vibration resistance 10…50Hz (1.5mm) |
| Repeat accuracy [R] ≤±3% | Degree of protection IP67 |
| Load current Voltage output: ≥4.7KΩ | Housing material PBT |
| Current output: ≤470Ω | Connection type Terminal |
