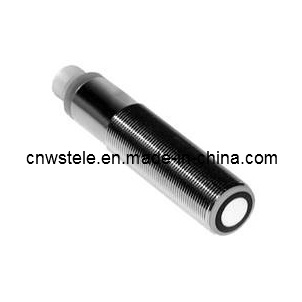

Analog Voltage Output Ultrasonic Sensor Proximity Switch (UB500-18GM75-U-V1)

Analog Voltage Output Ultrasonic Sensor Proximity Switch (UB500-18GM75-U-V1)
Price: US $ 120/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: UB500-18GM75-U-V1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 50mm
Output: Switching Sensor
Usage: Position Sensor
Theory: Ultrasonic Sensor
Material: Metal

Product Description

M18 Ultrasonic sensor proximity switch analog voltage output(UB500-18GM75-U-V1)


 Brife introduction of ultrasonic sensor
Ultrasonic sensors present the ideal solution for non-contact position and distance measurement in all industrial areas where environmental conditions such as dust, smoke or steam may affect the sensors. Objects consisting of a variety of materials can be detected to within millimeters regardless of color or shape.

The ultrasonic sensor produces a data carrier utilizing very high frequencies that are outside the human's audible range. The time it takes for that ultrasonic wave to pass between the sensor and the object is the value for the distance or the position.

Ultrasonic sensors have proven their reliability and precision in many industries and applications, including:
lumber and furniture construction materials and equipment farming equipment level control applications


Technical data

General Specifications
Sensing distance 30~500mm
Adjustment range 50~500mm
Unusable area 0~30mm
Standard target plate 100mm× 100mm
Transducer frequency About 380 kHz
Response delay About 50ms

Indicators/Operating means
LED blue Power on
LED yellow indication of the switching
State Flashing: Program
Function object detected
LED red permanently red: Error Red,
Flashing: Program function,Object not detected

Electrical specifications
Operating voltage UB 10~30VDC, ripple10%ss
No-load supply current ≤ 45mA

Output
Output type 1 analogue output 010V
Resolution 0.11mm at max. Sensing range
Deviation of the characteristic
Curve ± 1% of full-scale value
Repeat accuracy ± 0.1% of full-scale value
Load impedance >1k Ohm
Temperature influence ± 1.5% of full-scale value
Ambient conditions
Ambient temperature -25~70degrees
Storage temperature -40-85degrees

Mechanical specifications
Protection grade IP67
Connection Connector M12x1, 4-PIN
Material
Housing brass, nickel-plated
Transducer epoxy resin/hollow glass
Sphere mixture; Polyurethane foam

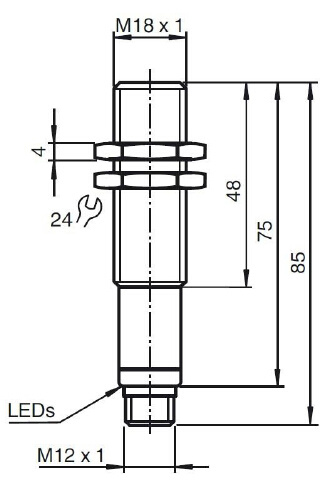

Dimension
