| Prod Model: |
Llt-Bk-Ver3.8.3 |
| Device Type: |
Video Interface |
| Suitable Model: |
Cadillac |
| Main Function: |
GPS Navigation |
| Android Version: |
4.4 |
| CPU: |
Quad Core 1.6 GHz |
| RAM: |
1GB |
| Storage: |
16 GB |
| Map: |
Google Map / Igo |
| Video Support: |
HD 1080P |
| WiFi Bluetooth: |
Yes |
Product Description
Android 4.4 System Navigation Video Interface box For 2016 new Cadillac ATS CTS XTS XT5 SRX Escalade etc with Mylink system
Optional with Touch screen Wi-Fi Bluetooth Mirror Link Cast screen HD 1080P Google MAP Play Store Voice control
Custom Properties| Way to Install | Original Car Screen Installation | Advantage | Retains All Features |
| RGB IN | Support | AV IN | AV1 or AV2 |
| DVR IN | Support | Rear View | Support |
| Front View | Support | 360 | Optional |
| CPU | 1.6GHZ | RAM | 1GB |
| Flash | 16GB | HD Video | 720P/1080P |
| Working voltage | 9-12V | OS | Android 4.4 |
| HVGA | 800X480 | MAP | GOOGLE MAP/IGO |
| Play Store | Support | Voice | Support |
| WIFI | Support | Specific Features | One-Key Reset |
| BT | Support | MirrorLink | Support |
Android's features:
1. Android 4.4 system, Quad core 1.6GHz Cortex-A9 chip, quickest running speed in market.
2. Compatible all Android apps include YouTube, Waze, Google map, iGO, Real-time & offline navigation etc, free download from Play store.
3. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
4. Connect via Wi-Fi Bluetooth USB.
5. Could be switch to origin system with just one click on dashboard or steering wheel.
6. Simple plug & play installation.
7. Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean Hebrew etc
Professional festures & hardware
1. Multi screen interactive display is supported, LVDS out put.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T TV box, DVR, mirror link, video play via USB.
3. Support 2 RGB & LVDS video signal input.
4. HD 1080P video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
7. RK3188T/PX3 main processor, Quad core Cortex-A9 structure, much quicker than Allwinner T3 A7 model.
8. WiFi module: RTL8188 / RTL8723.
9. BT module: RTL8723BU, support BT4.0, firmware support Bluetooth functions.
10. Touchscreen interface: Support 4-wire resistive touch layer
Features of Android system
Installation advantages
1) No ndestructive installation design, which does not damage to the wires of original car; Special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely (Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.
Hardware information
Master processor: RK3188T Quad-Core Processor (RK 3188T/RK 3188/PX3) basic frequency is 1.6G.
Memory capacity: 1G DDRIII,2G DDRIII optional.
Flash memory: 16G EMMC Flash, maximum 64G.
OS: Standard Android 4.4
GPS receive: support AGPS function
GPS antenna: 3V active antenna
GPS antenna protection: prevent the antenna short circuit
WiFi module: RTL8188 / RTL8723.
BT module: RTL8723BU, support Bluetooth 4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Synchronizing signal: composite synchronizing signal. Separate sync signal.
Video output format: simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output: Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output: 800×480,1024X600, Maximum 1920X1080, Support any resolution.
Audio output: Left and right channel stereo output with audio valid indication signal.
Sound Control output: IO output or UART output.
Single track MIC input: support voice navigation, support SPDIF output.
Touchscreen interface: Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types: support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port : USB OTG 2.0 .
Supported map software: APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
Product Description
1.Apply to: Cadillac ATS, XTS, SRX, CTS, XT5, Chevrolet malibu (Car CUE SYSTEM)
2.Supports external video input,full touch DVD,Android system;
3.Multiple Switching ways:long press screen,double sliding,party control,etc;
4.Full-digital circuit, LVDS signal processing, achieve high-definition images;
5.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;
6.Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;
7.It's convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;
8.Optional external RGB (800 x480) input,Andrews system connection,HD display;
9.UI of the original car UI,matching the original car style,integrated the original car system;
10.Full pull-in installation,realize nondestructive installation;
Applications
1.Vehicle:Original car with screen models;
4.Suitable for car Brand: Cadillac ATS, XTS, SRX, CTS, XT5, Chevrolet malibu (Car CUE SYSTEM)
3.Sales channels:Super auto supplies supermarket,car audio modification store,automobile service factory,standard 4S shop;
4.Suitable type:Original car with screen,support for touch control,HD display models.
Competitive advantages
1.Convenient installation,all on the plug;DO not destroy the original vehicle lines,simple operation;
2.Random installation,without secondary installation;
3.Simple functions,strong stability,more useful;
4.Convenient to upgrading map;
5.Android:Internet access,HD video playback,full audio format,voice search,comes with WIFI,Real-Time traffic Navigation,arbitrary,automotive Android phone.
6.Why not produce all-in-one machine? Because Android system heat badly.To prevent against crashes,break down,we produce split to work more better and stable.

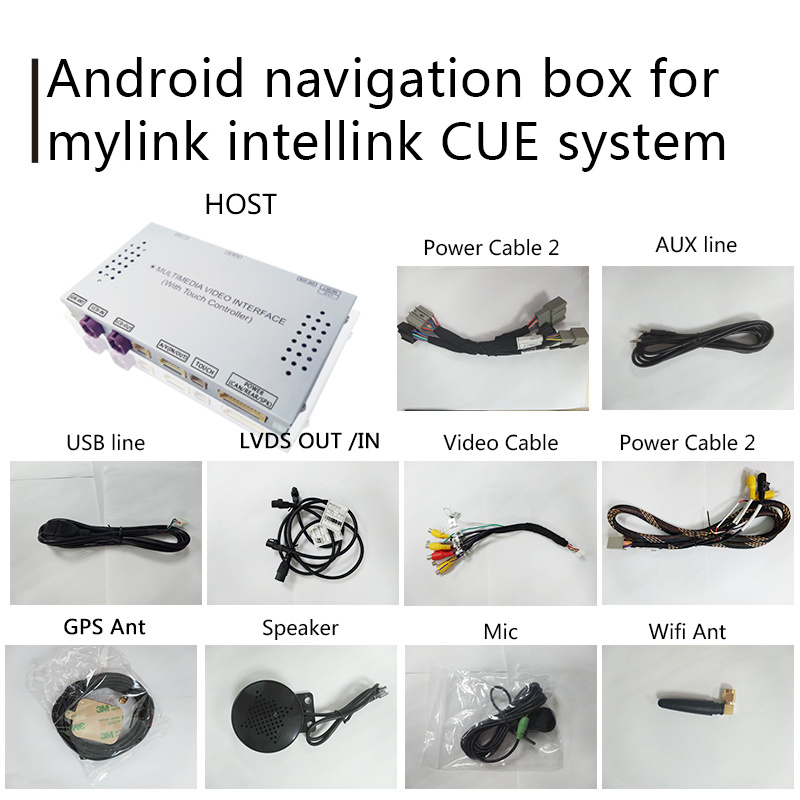

| Product Accessories |
| Interface box | 1(standard configuration) |
| Android box | 1(standard configuration) |
| LVDS IN | 1(standard configuration) |
| LVDS OUT | 1(standard configuration) |
| AV IN/OUT | 1(standard configuration) |
| POWER Line | 2(standard configuration) |
| GPS-ANT | 1(standard configuration) |
| Microphone | 1(standard configuration) |
| SPK | 1(standard configuration) |
| Map card | 1(standard configuration) |
| WIFI ANT | 1(standard configuration) |
| Specification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |
| Interface Parameter |
| Model | LLT-KDLK-VER3.8.1 |
| Brand | (Lsailt) |
| Car Screen Size | Original car screen |
| Type | Silver interface box |
| Display | LVDS/GVIF Signal transmission(The Board) |
| RGB Input | One |
| AV Input | Two |
| DVR Input | One |
| Front View | One |
| Rear View | Track Reversing and Video |
| Customization | Negotiated |
| General Parameters Andrews |
| CPU | 1.6G Hz |
| Model | Cortex A9 Four dual-core processor,car rule PX3 |
| RAM | DDR3 1GB |
| Flash | Nand standard equipped,8GB or 16GB |
| Navigation Storage | TF card |
| OS | Android 4.4 5.1 |
| HVGA | 800X480 |
| WIFI | Support |
| BT | support BT4.0 |
| MirrorLink | Android and OS The android support touch |
| Operating Voltage | DC(9-15)V |
| Operating Current | Normal 400 mA@12V |
| Operating Temperature | -20°C-+70°C |
| Storage Temperature | -30°C-+80°C |
| Audio Output | Left and right channels,stereo,distribute the signal and analog output |
| Function Parameters Andrews |
| USB Function |
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. |
| Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) |
| Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 |
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don't support background) |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. |
| Internet |
| WIFI | After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet
Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual) |
| 3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard |
| Support surf the Internet through 3G USB dongle or 3G mobile share next work |
| MAP (GPS Navigation) |
| Supportable navigation software | Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC |
| Map Upgrading | Through TF card |
| Support 3D live navigation,(Need navigation software to support) |
| Support navigation sound mixing/sound sent back |
| Support real-time traffic(Need navigation software to support,internet) |
| Support multiple navigation software |
| File Manager |
| Functions | Support to copy, move files between different storage medium and different folders |
| Support to delete files |
| Task Manager |
| Functions | Support the task list of activities |
| Support to switch the activities task |
| Support to close the activities task |
| System with Google | The browser,calculator,calendar and send E-mail,Google store |
| Software Upgrading | TF or U flash disk |
| Voice Recognition | Support |
| System Language | Multi language |
Specifications of System| CPU | BCM4752 |
| Frequency | 1575.42± 1 .023 MHz |
| Number of channels | 66 channel |
| Tracking sensitivity | -1 61dBm |
| Positioning accuracy | 3.0m CEP |
| Rate | 0.1 m/s |
| Data update rate | 1HZ |
| Re-capture time | <1S |
| Hot start time | 1S |
| Warm start time | 32S |
| Cold start time | 35S |
| Maximum positioning height | 18000m |
| Maximum rate | 515m/s |
| GPS Antenna | Active ceramic antenna |
| Antenna gain | 27dB |
| Antenna noise factor | <2dB |
| VSWR | 1 .5 |
| Antenna voltage | 3V± 5% |
| Antenna current | 1 5mA |
The maximum rated operating parameters table| Operating voltage | 9-12V |
| Operating current | 300mA |
| Maximum power consumption | 2.5W |
| Shutdown current | 1 mA |
| Off Power | 30mW |
| Operating ambient temperature | -10 ºC -- +80 ºC |
| Storage temperature | -50 ºC -- +90 ºC |
wireless specifications| Protocol standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.n |
| Frequency Range | 2.400~2.4835GHz |
| Channels | 1~11(the US,Canada),1~13(China,Europe),1~14(Japan) |
| Modulation mode | 802.11b:DSSS (CCK, DQPSK, DBPSK)
802.11g/n:OFDM (BPSK, QPSK, 16QAM, 64QAM) |
| Speed of wireless | 802.11b 11, 5.5,2, 1Mbps
802.11g 54, 48, 36, 24, 18, 12, 9, 6Mbps
802.11n |
| Transmit power | 802.11b 11Mbps:15±1.5dBm
802.11g 54Mbps:13 ±1.5dBm
802.11n 135Mbps:13 ±1.5dBm |
| Sensitivity | 270M: -74dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -73dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -95dBm@8% PER |
| Working mode | Peer to pee(Ad-Hoc)or Centralized control type(Infrastructure) |
| Operating voltage | DC 3.3V ±0.2V |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission distance | indoor 100 M,outdoor 300 M(depend on surroundings) |
| system | WINXP/VISTA/LINUX/WINCE/WIN7 |
| Operating temperature | 0°C- 40°C |
| Operating Humidity | 10% -90% RH condensing |
| Storage temperature | -40ºC-70ºC; |
| Storage humidity | 5%-90% RH Non-condensing. |
3G Dongle| NO. | Type | Network Format |
| 1 | HUAWEI E220 | WCDMA |
| 2 | HUAWEI E182E | WCDMA |
| 3 | HUAWEI E1550 | WCDMA |
| 4 | HUAWEI E1750 | WCDMA |
| 5 | HUAWEI E1756 | WCDMA |
| 6 | HUAWEI E1762 | WCDMA |
| 7 | HUAWEI E261 | WCDMA |
| 8 | ZTE MF110 | WCDMA |
| 9 | ZTE MF190 | WCDMA |
| 10 | ZTE MF180 | WCDMA |
| 11 | ZTE | WCDMA |
| 12 | ZTE | WCDMA |
| 13 | HUAWEI EC122 | CDMA |
| 14 | HUAWEI EC156 | CDMA |
| 15 | HUAWEI EC167 | CDMA |
| 16 | HUAWEI EC189 | CDMA |
| 17 | HUAWEI EC1261 | CDMA |
| 18 | HUAWEI EC1270 | CDMA |
| 19 | ZTE AC580 | CDMA |
| 20 | ZTE AC582 | CDMA |
| 21 | HUAWEI ET127 | TD-SCDMA |
| 22 | HUAWEI ET128 | TD-SCDMA |
| 23 | HUAWEI ET188 | TD-SCDMA |
| 24 | ZTE A355 | TD-SCDMA |
| 25 | ZTE A351+ | TD-SCDMA |
| 26 | ZTE | TD-SCDMA |
Quality warranty policy:
3 month free replacement and 1 year free maintenance.
Deliver 1 or 2 days after payment received.
Customer service will contact with you by whatsapp, email, skype to do all necessary works.
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd established in 2009. The
Company is located in the advanced southern metropolis --- Bao'an District, Shenzhen city. It covers 60 staffs, including 10 R&D persons. It has 5 production lines and 1 production line for old product.
Company attaches great importance to research and develop new products. We have launched many new solutions for car models such as Mercedes-Benz, BMW, Audi, Honda, GM), etc. And with the ability of producing 50000 sets of original screen entertainment production per year.
We regard quality as life. The company equipped with many test equipment at the world's advanced level such as experiment box, vibration tester, high and low temperature boxes, ESD static tester, power supply fluctuation test instrument, Sound and video automatic detector. And we have made a strict quality inspect system and process. Operating comply with international quality system certification such as ISO9001: 2000, ISO/TS16949: 2009 etc. Strictly.
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd sticks to the Traditional spirits "Create Classic attentively" and Enterprise culture "Creative, Flexible, Team, and Mutual Benefits" which consistently Challenge Himself, The Best of the Best as Conducts to Create more wonderful products to satisfy Driver for Car audio system entertainment
Our products are not only providing Inland 4S Shop, but only the supplier of South America, Middle East, Europe, and America at abroad. Company owed Sales network through the country and Contact the strategy Cooperation relationships with more than 10 Car sales CO.
Develop and Grow is common goal of members. Bellwether of Supplier of OEM Car audio upgrading kit is our Grand mission to the world.
Company Culture
Mutual respect
Honest
Aggressive
Realization of Mutual Benefits
Custom First
Efficiency and Original
Improve competition of market
The Value of Industry
1. Brain value is higher than the material value
2. Mutual value is higher than the personnel value
3. User value is higher than the production value
Enterprise Tenet
Value for customer; Development for staff; Opportunity for society; Benefits for industry.
Enterprise Spirit
Honest
Aggressive
Dedicated
Original
Cooperation
Enterprise Relation
Love country
Love company
Love staff
Love family
Enterprise Brand
Lsailt: Involved in the original car upgrade decode navigation screen, change the screen machine, Internet communications, and Android navigator box, the original car screen upgrade scheme.
