| Prod Model: |
Llt-Mzd-Ver6.5.1 |
| Device Type: |
Android Navigation Box |
| Suitable Model: |
Mazda Cx-3 |
| Main Function: |
Android Navigation |
| Android Version: |
4.4 / 5.1 |
| CPU: |
Quad Core 1.6 GHz |
| RAM: |
1 / 2 GB |
| Storage: |
16 GB |
| Map: |
Google Map / Igo |
| WiFi Bluetooth: |
Yes |
| Video Support: |
HD 1080P |
Product Description

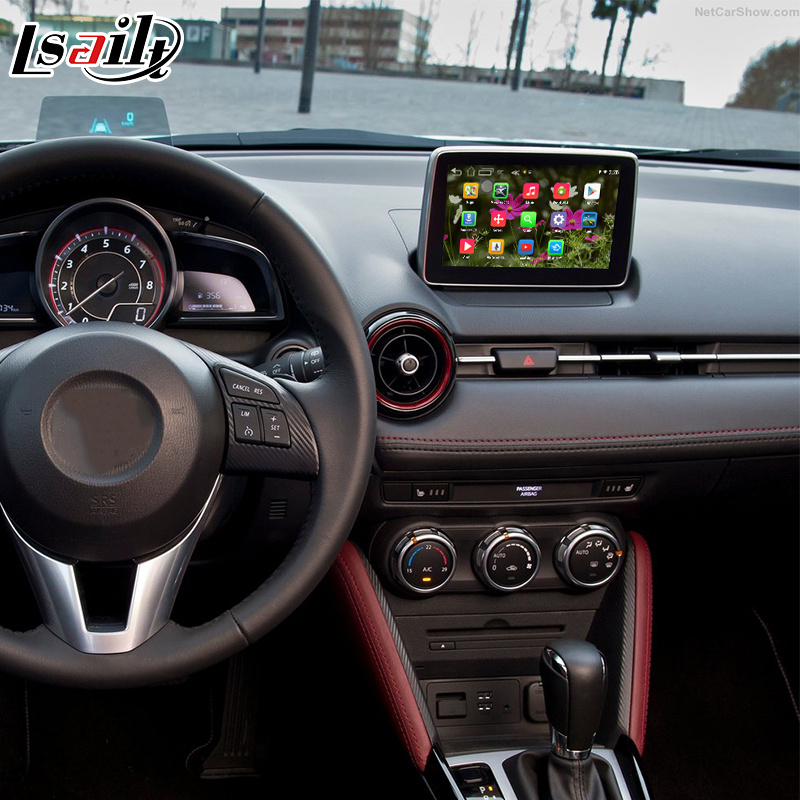

Car Android Navigation System Video Interface box For MazdaCX-3;Upgrade Touch Navigation,WIFI,BT, MirrorLink,HD 1080P,Google MAP, Play Store,Voice,
Android's features:
1. Android 5.1 & 4.4 system, Quad core 1.6GHz Cortex-A9 chip, quickest running speed in market.
2. Compatible all Android apps include YouTube, Waze, Google map, iGO, Real-time & offline navigation etc, free download from Play store.
3. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
4. Connect via Wi-Fi Bluetooth USB.
5. Could be switch to origin system with just one click on dashboard or steering wheel.
6. Simple plug & play installation.
7. Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean Hebrew etc
Professional festures & hardware
1. Multi screen interactive display is supported, LVDS out put.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T TV box, DVR, mirror link, video play via USB.
3. Support 2 RGB & LVDS video signal input.
4. HD 1080P video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
7. RK3188T/PX3 main processor, Quad core Cortex-A9 structure, much quicker than Allwinner T3 A7 model.
8. WiFi module: RTL8188 / RTL8723.
9. BT module: RTL8723BU, support BT4.0, firmware support Bluetooth functions.
10. Touchscreen interface: Support 4-wire resistive touch layer
Brand: Lsailt Model: LLT-MZD-VER6.5.1

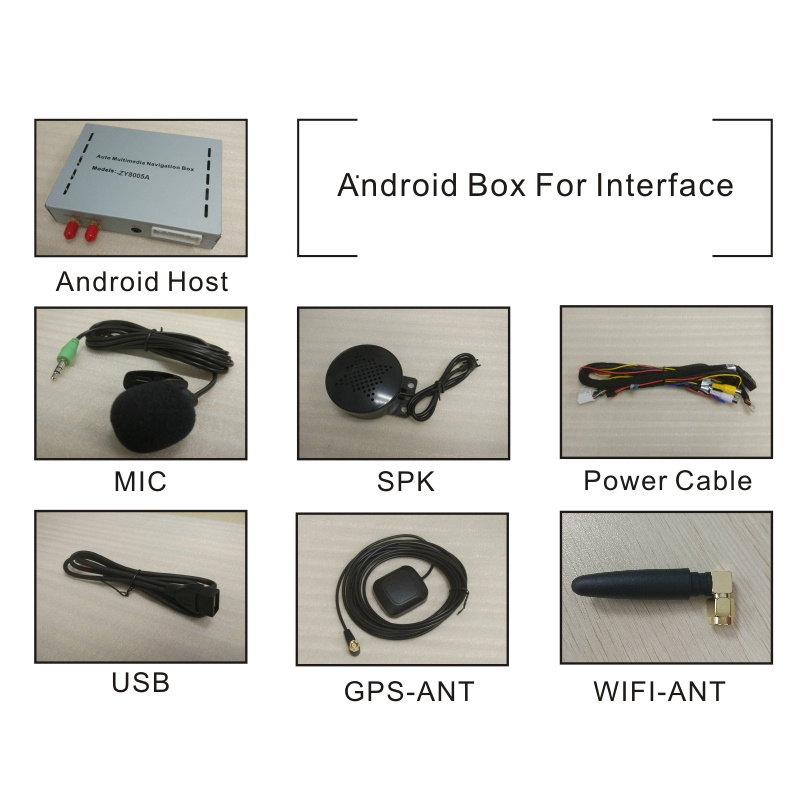

Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android Navigation Box;
Suitable car model:2014-2016 Mazda2,3,6,CX-3,CX-5,CX-9,MX-5(Car MZD Connect System)
Upgrading Function:Touch Android Navigation System,Trajectory Reversing,Front View,DVD,TV,360 Panoramic,DVR,TPMS etc.
What is the upgrading function of the original car screens?
It follows that the owner can realize navigation, visual trajectory reversing, DVD player, TV news, 360 panoramic, and automobile data recorder through interface box and use LCD (BYOD).Then we integrate these functions into a car which will realize touch handwriting navigation, remote control, mini system operation. After that, the original system is not changed and the system which is installed will not damage and interfere in the original car.
Suitable car model
Suitable for an original car with LCD true color display (BYOD). Due to the different model, the upgrading system is not also the same. Lsailt can perfectly and flexibly realize you car's upgrading function (navigation, BT, visual trajectory reversing HD playback, DVD player, mobile Internet app etc.)
Advantage for Upgrading
1.Nondestructive installation design, do not damage the original car lien, special interface wire, plug-up installation without wire cut;
2.Select installation function freely (handwritten navigation, BT, DVD, Reversing, 360 panoramic, automobile data recorder, TMPS, mobile Internet app etc).Make low-end surpass high-end, and make up the function defect of high-end car;
3.Technology is comparatively reliable; Do not involve in the original car agreement. Technology risks are fewer and safer comparatively;
4.Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function;
5.Convenient After-sale service; point-to-point reparation, do not involve in original car accessories, it is more simple, fewer risks, safer and more reliable than dedicated machine;
6.Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new "Three Parks of Policy" and 4S that do not support warranty;
7.Original car UI design, perfect match. Long presses touch screen or original car button to switch navigation pattern.
Features of Android system
Master processor:RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)basic frequency is 1.6G.
Memory capacity:1G DDRIII,2G DDRIII optional.
Flash memory:16G EMMC Flash, maximum 64G.
OS:Android 4.4
GPS receive:support AGPS function
GPS antenna:3V active antenna
GPS antenna protection:prevent the antenna short circuit
WiFi module:RTL8188/RTL8723.
BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Support USB camera which support DVR.
Synchronizing signal:composite synchronizing signal. Separate sync signal.
Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output:Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.
Audio output:Left and right channel stereo output with audio valid indication signal.
Sound Control output:IO output or UART output.
Single track MIC input:support voice navigation, support SPDIF output.
Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port :USB OTG 2.0 .
Supported map software:APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
Product Description
1.Apply to: 2014-2016 Mazda2,3,6,CX-3,CX-5,CX-9,MX-5(Car MZD Connect System)
2.Supports external video input,full touch DVD,Android system;
3.Multiple Switching ways:long press screen,double sliding,party control,etc;
4.Full-digital circuit, LVDS signal processing, achieve high-definition images;
5.Navigation voice optional (the original car/separate speakers).Input all voice into the original car audio system! Achieve perfect sound;
6.Support trajectory reverse, Support front video input. You can choose to install 360 bird's eye view panoramic, truly achieve parking without blind area;
7.It's convenient for drivers and passengers to enjoy different entertainment programs since the foreground-background work independently;
8.Optional external RGB (800 x480) input,Andrews system connection,HD display;
9.UI of the original car UI,matching the original car style,integrated the original car system;
10.Full pull-in installation,realize nondestructive installation; Quality warranty policy:
3 month free replacement and 1 year free maintenance.
Deliver 1 or 2 days after payment received.
Customer service will contact with you by whatsapp, email, skype to do all necessary works.
| Function Parameters Andrews |
| USB Function |
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. |
| Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) |
| Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 |
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don't support background) |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. |
| Internet |
| WIFI | After good Wi-Fi connection,select the current can be connected Wi-Fi hotspots,enter the password to connect to the Internet after the Internet
Via your 3G/4G mobile phone can also be used as hot provide navigation hosts (this set with reference to your mobile phone manual) |
| 3G | 3G/WCDMA/CDMA2000/TD-SCDMA standard |
| Support surf the Internet through 3G USB dongle or 3G mobile share next work |
| MAP (GPS Navigation) |
| Supportable navigation software | Beauty line,DaoDaoTong,LingTu, hypergraph,NaviOne,AutoNavi,baidu,Google,IGO,SYGIC |
| Map Upgrading | Through TF card |

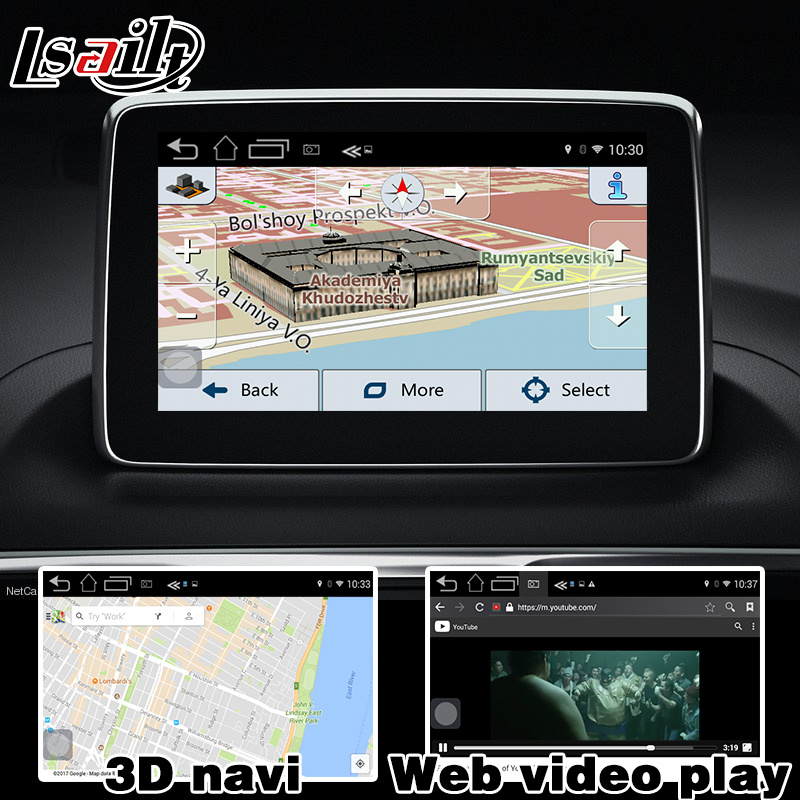

| Support 3D live navigation,(Need navigation software to support) |
| Support navigation sound mixing/sound sent back |
| Support real-time traffic(Need navigation software to support,internet) |
| Support multiple navigation software |
| File Manager |
| Functions | Support to copy, move files between different storage medium and different folders |
| Support to delete files |
| Task Manager |
| Functions | Support the task list of activities |
| Support to switch the activities task |
| Support to close the activities task |
| System with Google | The browser,calculator,calendar and send E-mail,Google store |
| Software Upgrading | TF or U flash disk |
| Voice Recognition | Support |
| System Language | Multi language |
| | | |
