Android 6.0 Video Interface Navigation Box for Audi Q5 3gmmi 2009-2015
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
LLT-Audi-VER4.5.1 |
| Definition: |
800*480 |
| Navigation: |
800(GHz), 256(Storage), 800*400(HD Dispaly). |
| Map: |
Careland/Daodaotong/Igo/Papago |
| Application: |
2009-2015year:A6l/S6/Q7/A8/A4l/A5/Q5/A1/Q3(4pin) |
| Reserved Accessories Upgraded: |
DVD, TV, 360 Panoramic, Automobile Data Recorder |
| Standard Configuration: |
Interface, Navigation, Track |
| Type: |
GPS Navigator |
Product Description

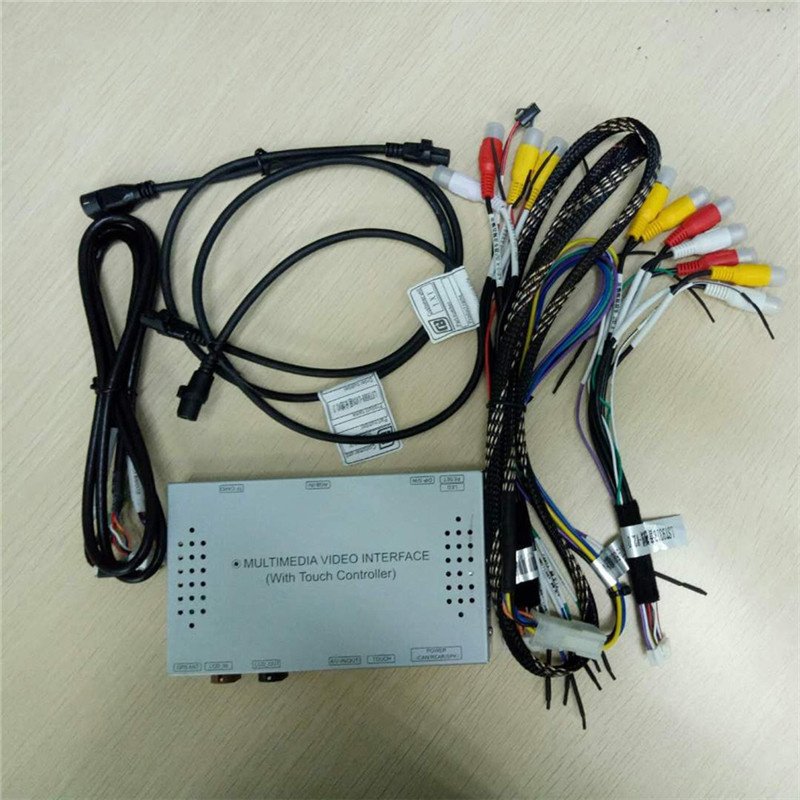

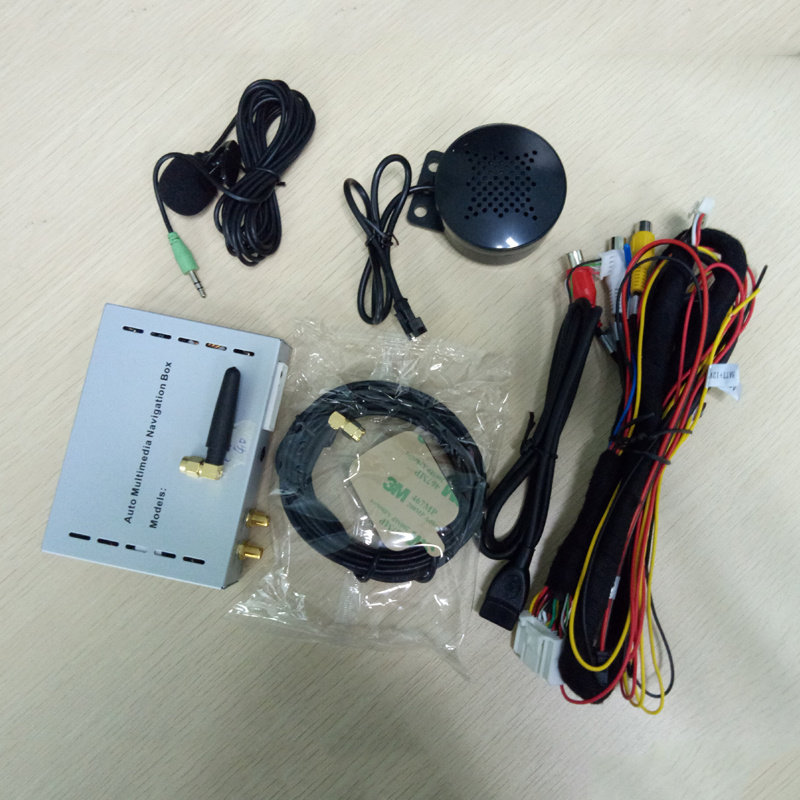

Android 6.0 Video Interface Navigation Box for Audi Q5 3gmmi 2009-2015Brand: Lsailt Model:LLT-Audi-VER4.5.1
Standard Configuration:Interface (navigation,track induction,front view, video expansion)
Suitable car model: 2009-2015year:A6L/S6/Q7/A8/A4L/A5/Q5/A1/Q3(4PIN)
Upgrading function:HD handwritten navigation, BT, track induction, front view, DVD, TV, 360 Panoramic, automobile data recorder, TMPS etc.
Universal Product Information| Origin | Shenzhen | Trademark | Lsailt |
| Product Model | LLT-BENZ-VER2.0.1 | Standard | RoHS,CE |
| Type | Android Video Interface | Use | Automotive |
Trade Terms| Min. Order | 1Set | Unit Price | Negotiation |
| Trade Terms | EXW | Payment Terms | T/T or Western Union, PayPal |
| Supply Ability | 2,000pcs/month | Delivery Time | 7 working days after received your payment |
| Packaging Details | Standard Export Carton | HTTP | www.lsailt.com,www.carnavigationbox.com |
| SIZE | 155*90*20 (MM)x2 | GR. WT | 2KG/SET |
Custom Properties| Way to Install | Original Car Screen Installation | Advantage | Retains All Features |
| RGB IN | Support | AV IN | AV1 or AV2 |
| DVR IN | Support | Rear View | Support |
| Front View | Support | 360 | Optional |
| CPU | 1.6GHZ | RAM | 2GB |
| Flash | 16GB | HD Video | 720P/1080P |
| Working voltage | 9-12V | OS | Android6.0 |
| HVGA | 800X480 | MAP | GOOGLE MAP/IGO |
| Play Store | Support | Voice | Support |
| WIFI | Support | Specific Features | One-Key Reset |
| BT | Support | MirrorLink | Support |
What is the upgrading function of the original car screens?
It follows that the owner can realize navigation, visual trajectory reversing, DVD player, TV news, 360 panoramic, and automobile data recorder through interface box and use LCD (BYOD).Then we integrate these functions into a car which will realize touch handwriting navigation, remote control, mini system operation. After that, the original system is not changed and the system which is installed will not damage and interfere in the original car.
Suitable car model
Suitable for an original car with LCD true color display (BYOD). Due to the different model, the upgrading system is not also the same. Lsailt can perfectly and flexibly realize you car's upgrading function (navigation, BT, visual trajectory reversing HD playback, DVD player, mobile Internet app etc.)
Features of Android system
Master processor:Quad-Core Processor basic frequency is 1.6G.
Memory capacity:2G DD RIII
Flash memory:16G E MMC Flash, maximum 64G.
OS:Android 6.0
GPS receive:support AGPS function
GPS antenna:3V active antenna
GPS antenna protection:prevent the antenna short circuit
WiFi module:RTL8188/RTL8723.
BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Support USB camera which support DVR.
Synchronizing signal:composite synchronizing signal. Separate sync signal.
Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output:Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.
Audio output:Left and right channel stereo output with audio valid indication signal.
Sound Control output:IO output or UART output.
Single track MIC input:support voice navigation, support SPDIF output.
Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port :USB OTG 2.0 .
Supported map software:APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.
Advantage for add :
1. Nondestructive installation design, do not damage the original car line, special interface wire, plug-up installation without wire cut,
2. Select installation function freely(handwritten navigation, BT, DVD, Reversing, 360 panoramic, automobile data recorder, TMPS, mobile Internet app etc). Make low-end surpass high-end, and make up the function defect of high-end car.
3. Technology is comparatively reliable; Do not involve in the original car agreement.,technology risks is fewer and safer comparatively.
4. Remain all functions of the original host after upgrading. If there are some wrong with navigation, it will not have influence on the original car function.
5. Convenient After-sale service;Point-to-point reparation,do not involve in original car accessories,it is more simple, fewer risks, safer and more reliable than dedicated machine
6. Real nondestructive installation of Original car type, remain all functions of the original host after upgrading and tackle the problem of the new "Three Parks of Policy" and 4S that do not support warranty.
7. Original car UI design,perfect match. Long presses touchscreen or original car button to switch navigation pattern.
Statement: All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.| Type | LLT-Audi-VER4.5.1 |
| Brand | Lsailt |
| CAR Model | 2009-2015year:A6L/S6/Q7/A8/A4L/A5/Q5/A1/Q3(4PIN) |
| Function | Interface navigation AIO |
| Navigation | 800MHZ(GHz), 256(Storage), 800X480(HD DISPALY) |
| Definition | Original car screen(800*480) |
| Map | Careland/DaodaoTong/IGO/PAPAGO |
| Application | 2010-2015year:A6L/S6/Q7/A8/A4L/A5/Q5/A1/Q3(4PIN) |
| Standard Configuration | Interface, navigation, track |
| Reserved accessories upgraded | DVD, TV, 360 Panoramic, automobile data recorder, TMPS etc. |
| Special Version | Only the original car with a LED True color screen, can it be installed. |
| Note | Contact costumer service |
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd established in 2009. The
Company is located in the advanced southern metropolis --- Bao'an District, Shenzhen city. It covers 60 staffs, including 10 R&D persons. It has 5 production lines and 1 production line for old product.
Company attaches great importance to research and develop new products. We have launched many new solutions for car models such as Mercedes-Benz, BMW, Audi, Honda, GM), etc. And with the ability of producing 50000 sets of original screen entertainment production per year.
We regard quality as life. The company equipped with many test equipment at the world's advanced level such as experiment box, vibration tester, high and low temperature boxes, ESD static tester, power supply fluctuation test instrument, Sound and video automatic detector. And we have made a strict quality inspect system and process. Operating comply with international quality system certification such as ISO9001: 2000, ISO/TS16949: 2009 etc. Strictly.
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd sticks to the Traditional spirits "Create Classic attentively" and Enterprise culture "Creative, Flexible, Team, and Mutual Benefits" which consistently Challenge Himself, The Best of the Best as Conducts to Create more wonderful products to satisfy Driver for Car audio system entertainment
Our products are not only providing Inland 4S Shop, but only the supplier of South America, Middle East, Europe, and America at abroad. Company owed Sales network through the country and Contact the strategy Cooperation relationships with more than 10 Car sales CO.
Develop and Grow is common goal of members. Bellwether of Supplier of OEM Car audio upgrading kit is our Grand mission to the world.
Company Culture
Mutual respect
Honest
Aggressive
Realization of Mutual Benefits
Custom First
Efficiency and Original
Improve competition of market
The Value of Industry
1. Brain value is higher than the material value
2. Mutual value is higher than the personnel value
3. User value is higher than the production value
Enterprise Tenet
Value for customer; Development for staff; Opportunity for society; Benefits for industry.
Enterprise Spirit
Honest
Aggressive
Dedicated
Original
Cooperation
Enterprise Relation
Love country
Love company
Love staff
Love family
Enterprise Brand
Lsailt: Involved in the original car upgrade decode navigation screen, change the screen machine, Internet communications, and Android navigator box, the original car screen upgrade scheme.
