Android GPS Navigation System Box for Toyota Land Cruiser LC200 Video Interface Quad Core etc
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
LLT-FT-VER7.0.1 |
| Device Type: |
Android Navigation Box |
| Suitable Model: |
Land Cruiser LC200 2005-2017 Lexus Series |
| Android Version: |
5.1 Compatible to 4.4 |
| Map: |
Google Map / Igo / Waze |
| Video Support: |
HD 1080P |
| WiFi / Bluetooth: |
Yes |
| Definition: |
480*800 |
| Bluetooth WiFi: |
Supported |
| Model: |
Llt-FT-Ver7.0.1 |
| Brand: |
Lsailt |
Product Description

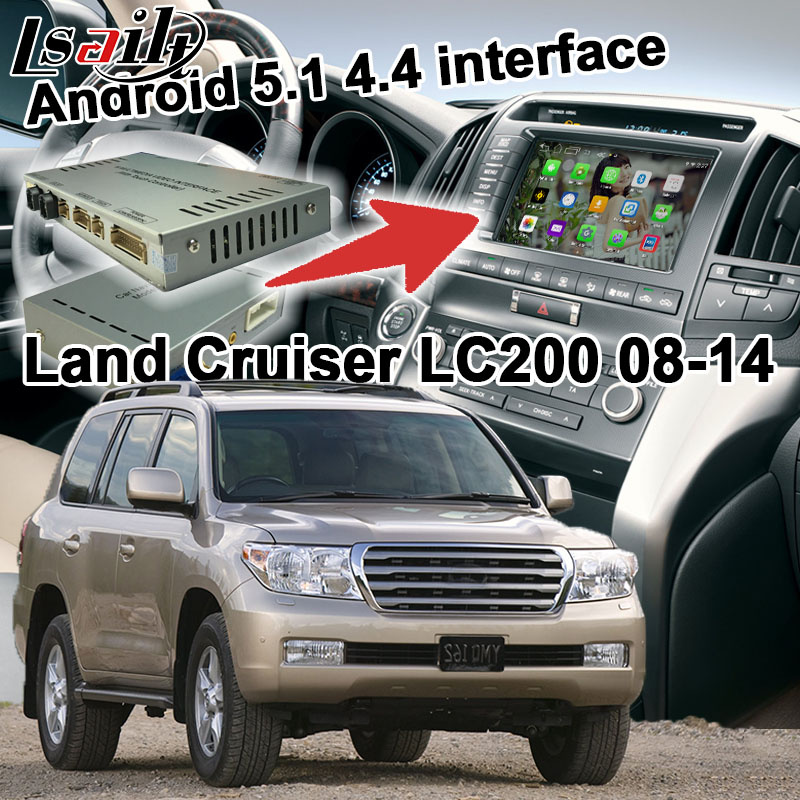

Car multimedia GPS Navigation Video Interface box Suitable Land Cruiser LC200 2008-2011 series with Android

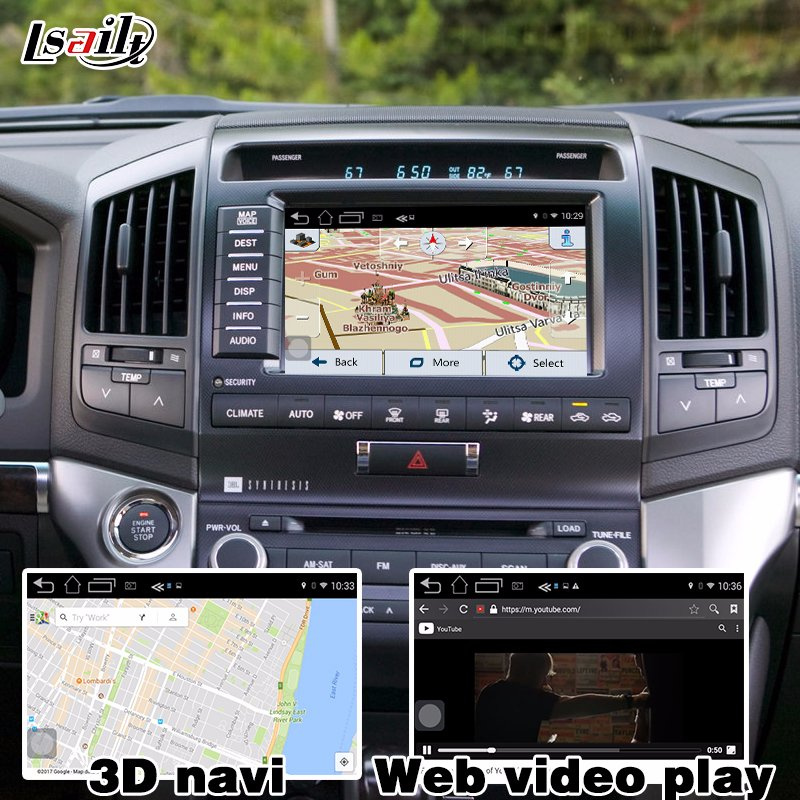

Touch Navigation, Audio and Video
Brand: Lsailt Model: LLT-FT-VER7.0.1
Standard Configuration:Interface(Navigation,Trajectory reversing,Front view,Video input);
Suitable car model: Land Cruiser LC200 2008-2011 (compatible to 2005-2017 Lexus series);
Upgrading function:Touch navigation, rear view with flexible parking guileline, Front view, DVD, Wireless TV, 360Panoramic, Video recorder,TPMS etc.
Android's features:- Android 4.4 system, Quad core 1.6GHz Cortex-A9 chip, quickest running speed in market.
- Compatible all Android apps include YouTube, Waze, Google map, iGO, Real-time & offline navigation etc, free download from Play store.
- Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
- Connect via Wi-Fi Bluetooth USB.
- Could be switch to origin system with just one click on dashboard or steering wheel.
- Simple plug & play installation.
- Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean Hebrew etc
Professional festures & hardware- Multi screen interactive display is supported, LVDS out put.
- Accessories like rear view, 360 bird eye camera box, DVD, DVB-T TV box, DVR, mirror link, video play via USB.
- Support 2 RGB & LVDS video signal input.
- HD 1080P video play supprted.
- Voice control navigation from both factory MIC or ours.
- Display definition 480*800.
- RK3188T/PX3 main processor, Quad core Cortex-A9 structure, much quicker than Allwinner T3 A7 model.
- WiFi module: RTL8188 / RTL8723.
- BT module: RTL8723BU, support BT4.0, firmware support Bluetooth functions.
- Touchscreen interface: Support 4-wire resistive touch layer
Features of Android system
Master processor:RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3) max frequency is 1.6G.
Memory capacity:1G DDRIII, 2G DDRIII optional.
Flash memory:16G EMMC Flash, maximum 64G.
OS:Android 4.4.
GPS receive:support AGPS function
GPS antenna:3V active antenna
GPS antenna protection:prevent the antenna short circuit
WiFi module:RTL8188/RTL8723.
BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Support USB camera which support DVR.
Synchronizing signal:composite synchronizing signal. Separate sync signal.
Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output:Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.
Audio output:Left and right channel stereo output with audio valid indication signal.
Sound Control output:IO output or UART output.
Single track MIC input:support voice navigation, support SPDIF output.
Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port :USB OTG 2.0 .
Supported map software:APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.Custom Properties| Way to Install | Original Car Screen Installation | Advantage | Retains All Features |
| RGB IN | Support | AV IN | AV1 or AV2 |
| DVR IN | Support | Rear View | Support |
| CPU | 1.2GHZ-1.6GHZ | RAM | 1GB |
| Flash | 16GB | HD Video | 720P/1080P |
| Working voltage | 9-12V | OS | Android 4.4 |
| HVGA | 800X480 | MAP | GOOGLE MAP/IGO |
| Play Store | Support | Voice | Support |
| WIFI | Support | Specific Features | One-Key Reset |

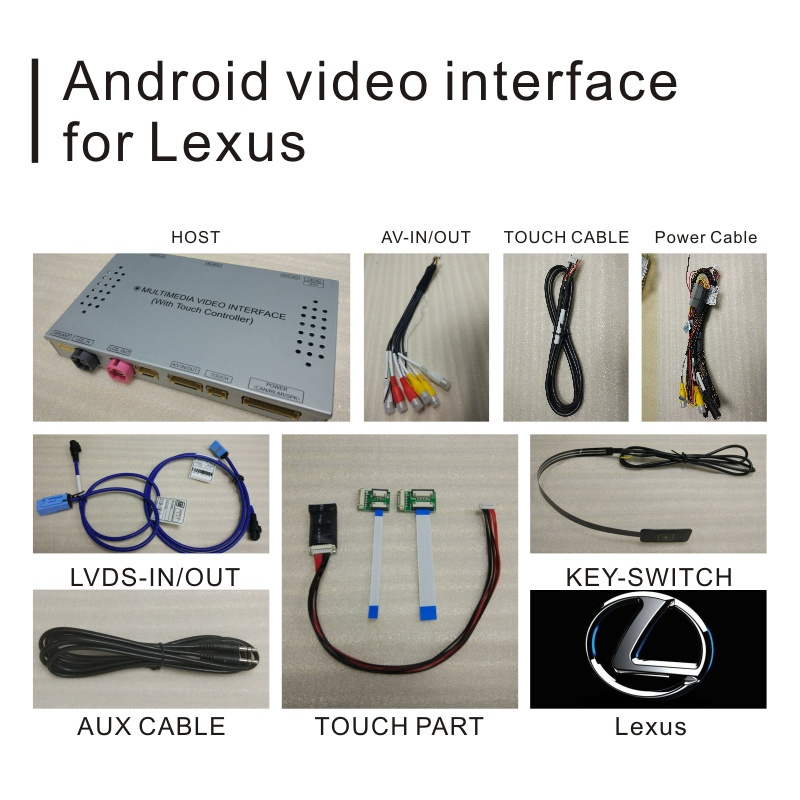

| Product Accessories |
| Host Interface | 1(standard configuration) |
| Host Android | 1(standard configuration) |
| LVDS IN | 1(standard configuration) |
| LVDS OUT | 1(standard configuration) |
| AV IN/OUT | 1(standard configuration) |
| POWER Line | 1(standard configuration) |
| ANT | 1(standard configuration) |
| Specification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |
| Microphone | 1(standard configuration) |
| SPK | 1(standard configuration) |
| Map card | 1(standard configuration) |
Quality warranty policy:3 month free replacement and 1 year free maintenance.Deliver 1 or 2 days after payment received.Customer service will contact with you by whatsapp, email, skype to do all necessary works.
