| Prod Model: |
LLT-BENZ-VER2.0.1 |
| Definition: |
Original Car Screen(800*480) |
| Navigation: |
800MHz(GHz), 256(Storage), 800X480(HD Display) |
| Car Model: |
2013-2014 Mbw |
| Map: |
Careland/Daodaotong/Igo/Papago |
| Type: |
GPS Navigator |
| Use: |
Automotive |
| Screen Size: |
7" |
| Brand: |
Lsailt |
Product Description

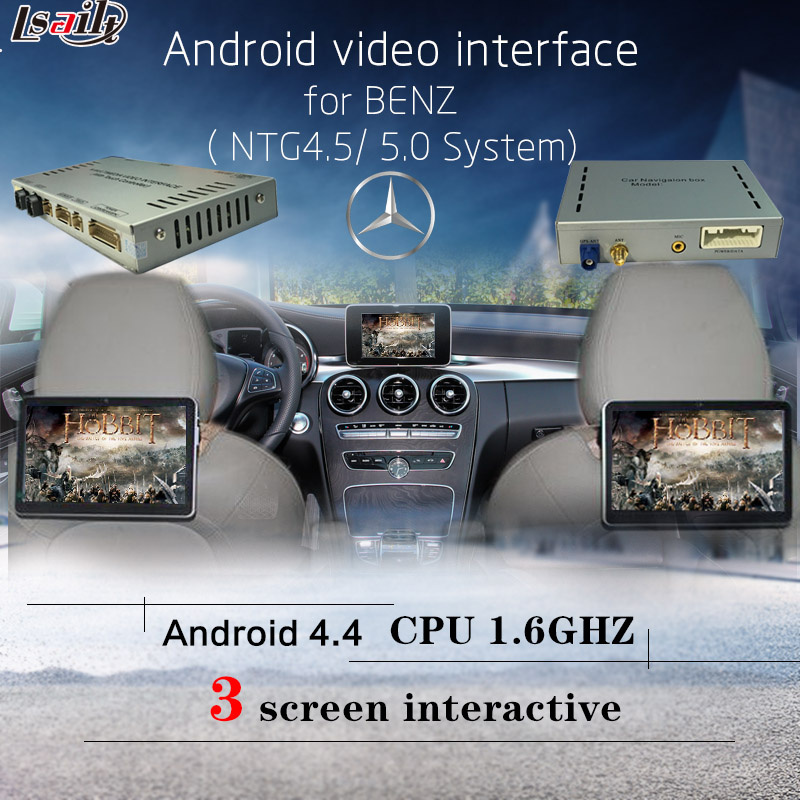

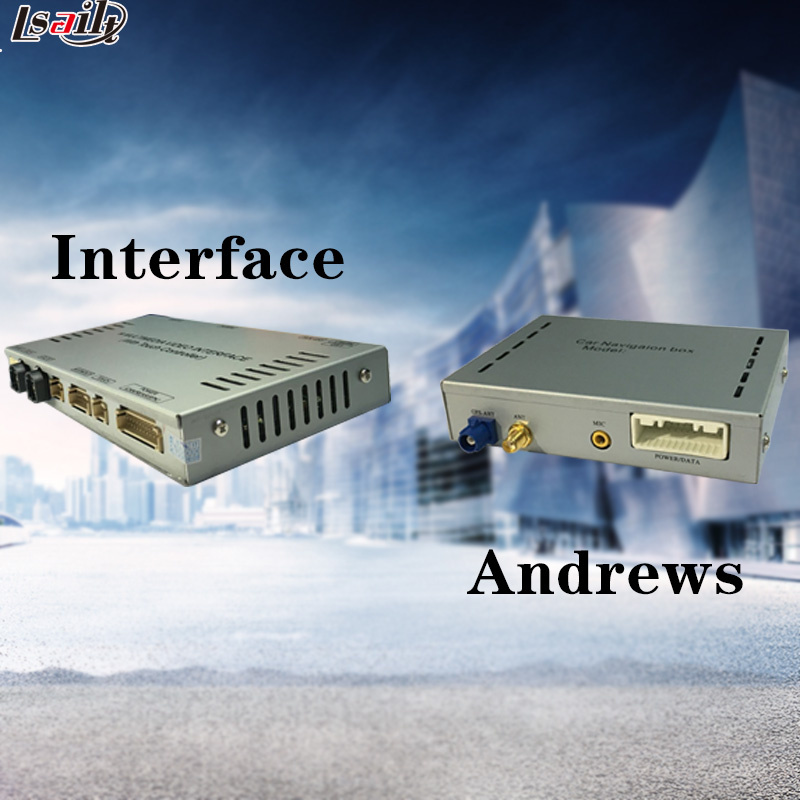

Android Interface Navigation System for 2012-2014 Benz NTG4.5 support Rear Camera
Product Information| Origin | Shenzhen | Trademark | Lsailt |
| Product Model | LLT-BENZ-VER2.0.1 | Standard | CCC,CE |
| Type | Android Navigator Interface | Use | Automotive |
This unit is designed for 2012-2014 Benz C/E/A/B/ML/GLK(NTG-4.5 )
Functions Description:
- Support apps download
- Support 3 synchronouslyScreens ( Center monitor and Headrest monitor) display
- Support worldwide IGO maps .
support touch screen control
Support Intelligent parking assist system (IPAS)
Reverse camera auto trigger
4 video in+1 AV in, including 4 video in for rear view camera, front view, TV and DVD, 1 AV in for DVD and digital TV
External speaker for navigation and original car speaker for multimedia
Support USB HD 1080P multimedia playback
Plug and play for easy installation
Technical Specifications
For Android navigation box:
Master processor : RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)
Basic Frequency : 1.6G
Memory capacity: 1G D D RIII , 2G DD RIII optional .
Flash memory: 16G E MMC Flash, maximum 64G .
OS: Android 5.1
GPS receive: support AGPS function
GPS antenna: 3V active antenna
GPS antenna protection : prevent the antenna short circuit
WiFi module : RTL8188/RTL8723.
WiFi module: RTL8723BU, support BT4.0, firmware support Bluetooth functions. A2DP,Bluetooth telephone.
2 Video IN : For Rear View Camera and front view camera
2AV IN : For Digital TV and DVD
| Product Accessories |
| Host Interface | 1(standard configuration) |
| Host Android | 1(standard configuration) |
| LVDS IN | 1(standard configuration) |
| LVDS OUT | 1(standard configuration) |
| AV IN/OUT | 1(standard configuration) |
| POWER Line | 1(standard configuration) |
| ANT | 1(standard configuration) |
| Specification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |
| Microphone | 1(standard configuration) |
| SPK | 1(standard configuration) |
| Map card | 1(standard configuration) |
| Interface Parameter |
| Model | LLT-BENZ-VER2.0.1 |
| Brand | (Lsailt) |
| Car Screen Size | 7 " or 8 " |
| Type | Silver interface box |
| Display | LVDS/GVIF Signal transmission(MiNi 4PIN) |
| RGB Input | One |
| AV Input | Two |
| DVR Input | One |
| Front View | One |
