Hot Searches: variable frequency inverter GPS Tracker

Angled Plug Power Plug Ms3108b22-22s

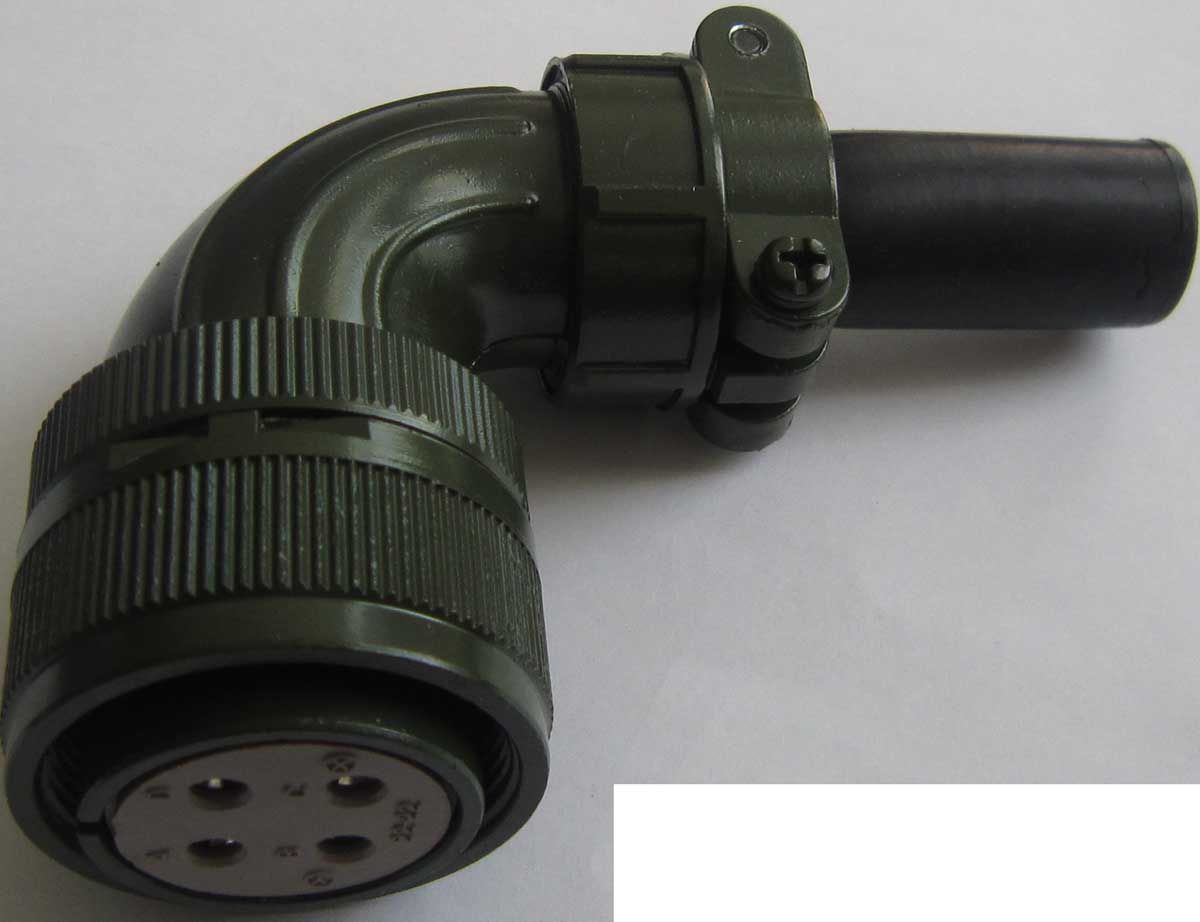

Name: Angled Plug Power Plug Ms3108b22-22s
Brand: all-electronics-online.com
SKU: 697777305
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	US $ 9-11/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS3108B22-22S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	22-22
Contacts:	4 Poles
Current:	50A
Connecting:	Thread Connect

Product Description

Angled Plug Ms3108b22-22S item power plug
MS series circular connectors are useed extensively in line connections between electrical equipment, various instruments and meters. These connectors meet the standard MIL-C-5015, have the features of light weight, aluminium alloy material, wide range, threaded coupling, good sealing performance, resistance against corrosion, high conductivity and high dielectric strength. It is the ideal product to replace the MIL-C-5015 series. They are interchangeable with the same category each other.

Product Ordering
MS 3106 A 22 -22 S W
1 2 3 4 5 6 7
1. Name of series: MS series connectors
2. Type: 3102: Square flange receptacle, 3106: Plug
3. Degree: A: Entire, B: Can be released
4. Shell type: 8S, 10SL, 12S, 14S, 16S, 18, 20, 22, 24, 28, 32, 36, 40
5. Contacts position type
6. Type of contacts: P: Pin, S: Socket
7. Key position: W, X, Y, Z, Without note: Normal position.
5015 series CE certificates:

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
