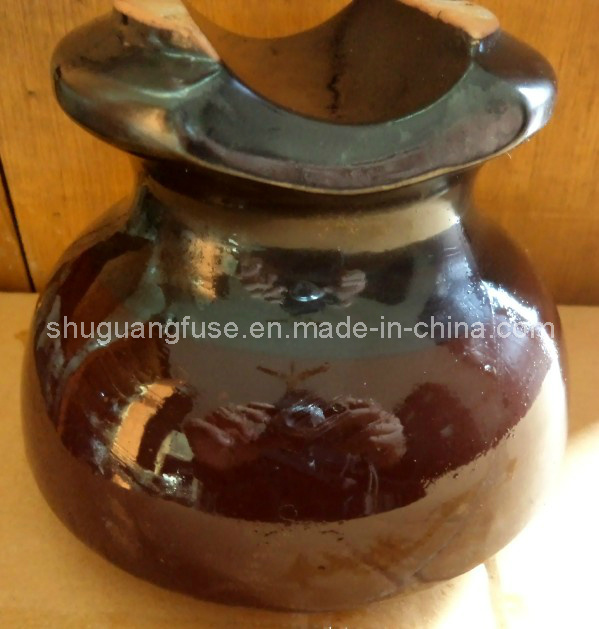

ANSI 55-4 Ceramic Pin Insulator

Name: ANSI 55-4 Ceramic Pin Insulator
Brand: all-electronics-online.com
SKU: 710245525
Availability: InStock
Rating: 4.4 (68 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI 55-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package:	16PCS a Wooden Box
Net Weight:	1.55kg/PCS
Creepage Distance:	229mm
Sample:	Available
Service:	OEM, ODM
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	A Type Insulator
Color:	Brown

Product Description

ANSI 55-4 ceramic pin insulator:

Creepage Distance: 229mm

Dry Arcing Distance: 127mm

Cantilever Failing Load: 13KN

Low Frequency Flashover Voltage(Dry): 65KV

Low Frequency Flashover Voltage(Wet): 35KV

Critical Impulse Flashover Voltage (Positive): 105KV

Critical Impulse Flashover Voltage (Negative): 130KV

Power-Frequency Puncture Voltage: 95KV

Test Voltage To Earth: 10KV

B. Max RIV At 1000kHz: 50KV

Power-Frequency Puncture Voltage (Minimum): 165KV
