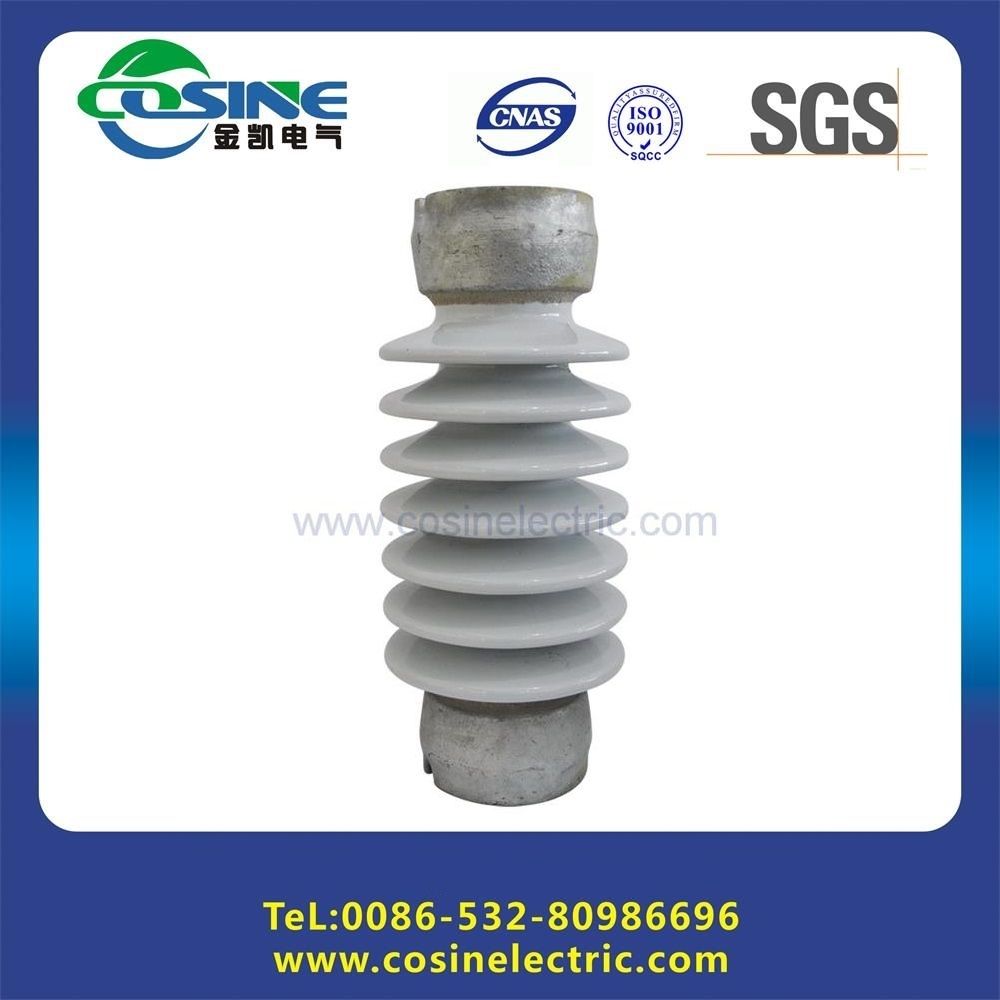

ANSI Approved Porcelain Insulator Tr210

Name: ANSI Approved Porcelain Insulator Tr210
Brand: all-electronics-online.com
SKU: 683458082
Availability: InStock
Rating: 4.6 (28 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TR210
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
330kv Insulator:	Post Insulator
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	ANSI Tr210 Post Insulator
Color:	Grey
Brand:	OEM

Product Description

Name: Porcelain insulator

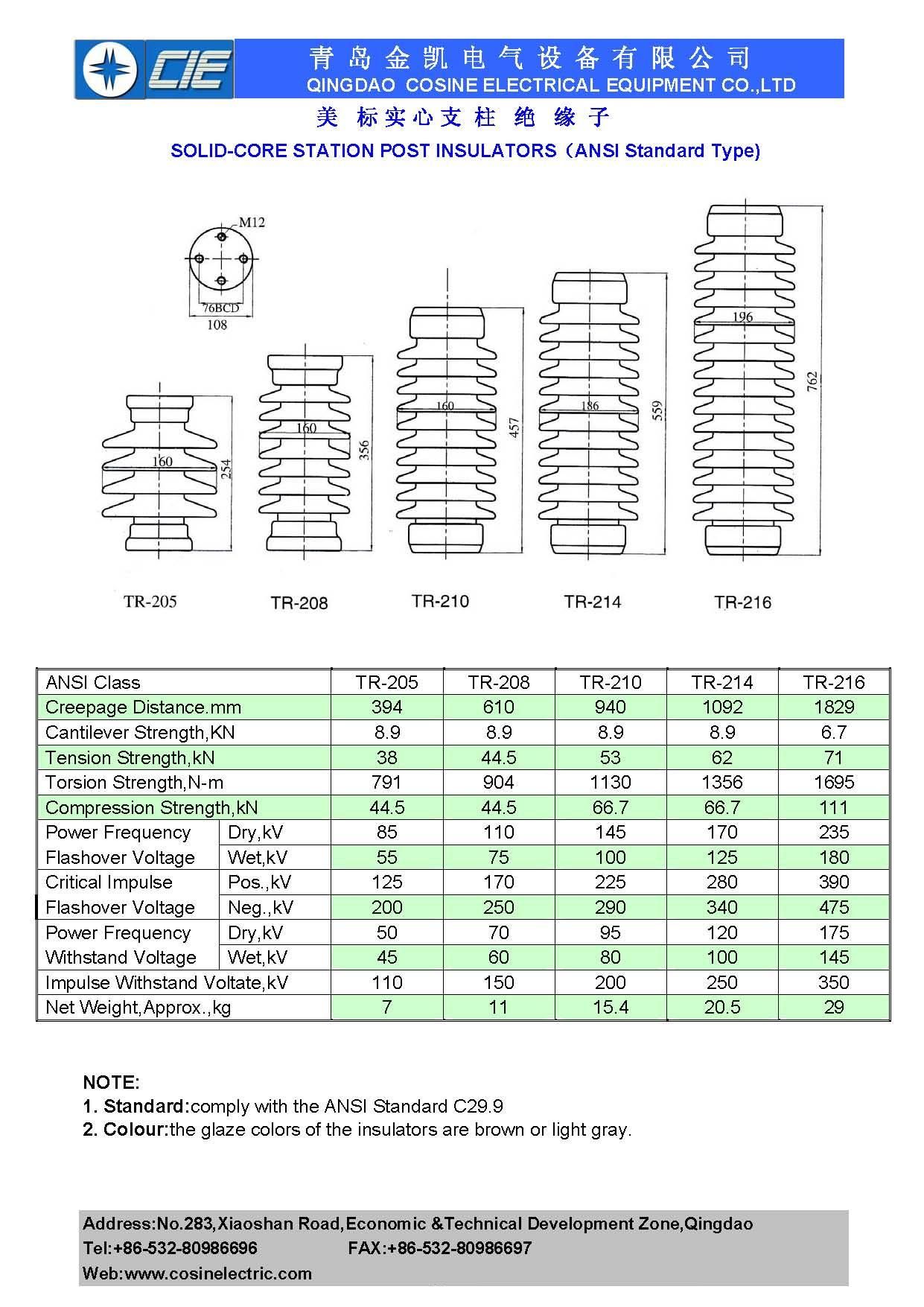

Type: Solid-core station porcelain Insulators TR210
Specification: TR205 TR208 TR210 TR214 TR216
Standard: The ANSI standard C29.9
The graze colors of the insulators: Brown or light gray

ANSI Class		TR-210
Creepage Distance, mm		940
Cantilever Strength, kn		8.9
Tension Strength, kn		53
Torsion Strength, n-m		1130
Compression Strength, kn		66.7
Low Frequency Flashover Voltage	Dry, kv	145
	Wet, kv	100
Critical Impulse Flashover Voltage	Pos., kv	225
	Neg., kv	290
Low Frequency Withstand Voltage	Dry, kv	95
	Wet, kv	80
Impulse Withstand Voltage, kv		200
Net Weight, Each Approx., kg		15.4

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
