Product Description
Specification:
HDPE Insulator:
1. A new kind of modified polyethylene,nonpolar thermoplastic resin material.
2. Has good heat resistance and cold resistance, good chemical stability; superior to porcelain insulator.
3. Has high rigidity and toughness, good mechanical strength.
4. Has the very good electrical performance,Especially high insulation dielectric strength; superior to porcelain insulator.
5. It's very suitable for transmission line.
6. Can Substitute porcelain insulator & Can be recycled.

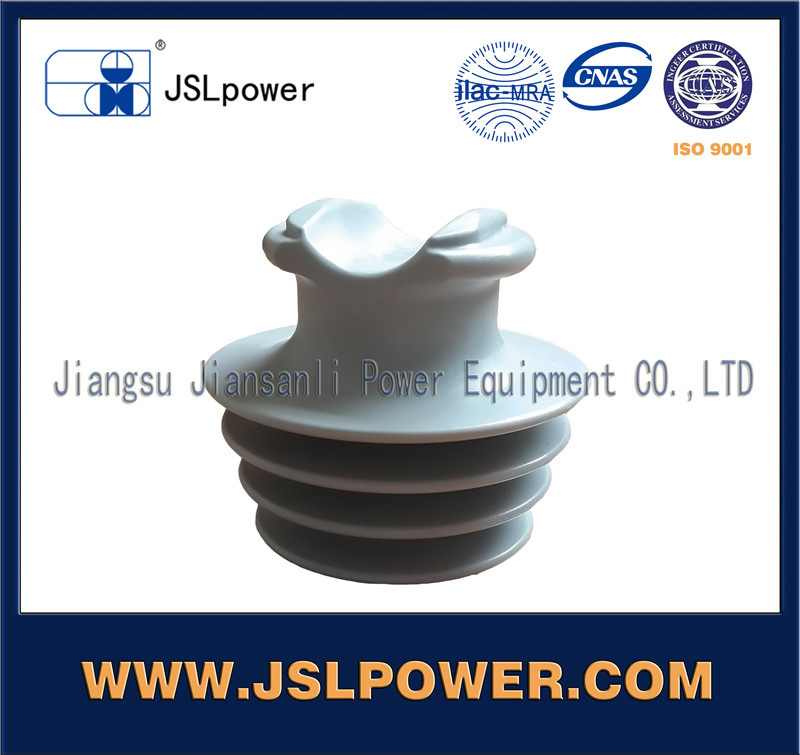

ANSI C29 15kv HDPE Insulator
Benefits:
·Electrically compatible with covered conductors -no stripping
·Resistant to impact damage, breakage and vandalism
·Excellent weather washing characteristics
·Interchangeable with porcelain insulators
·Excellent weatherability proven by test
·Designed for use with hand wrapped ties or preshaped ties
·Light weight for easy handling
·Excellent for contaminated environments
ANSI C29 15kv HDPE Insulator

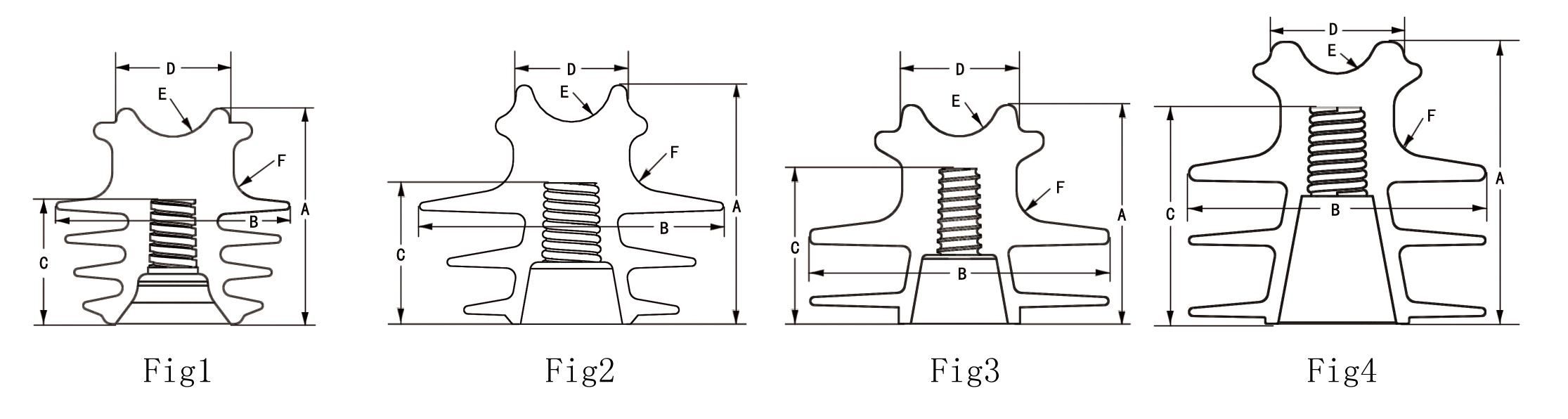

ANSI C29 15kv HDPE Insulator| Main Dimensions and Standard Particulars |
| Fig | 1 | 2 | 3 | 4 |
| Catalog | JHG-IP-15F | JHG-IP-25F1 | JHG-IP-25-F2 | JHG-IP-35F |
| Class ANSI | ANSI 55-4 | ANSI 55-5 | ANSI 55-5 | ANSI 55-6 |
| Main Dimensions(mm) | A | 129.5 | 150 | 140 | 181 |
| B | 140 | 190 | 190 | 191 |
| C | 88 | 99 | 100 | 140 |
| D | 68 | 68 | 74 | 85 |
| E | 25.4 | 25.4 | 25.4 | 25.4 |
| F | 16 | 20 | 20 | 19 |
| Nominal Voltage(kv) | 15 | 25 | 25 | 35 |
| Creepage Distance(mm) | 370 | 390 | 370 | 508 |
| Minimun Flashover Voltage | Dry/kv | 75 | 89 | 85 | 110 |
| Pos/kv | 110 | 141 | 130 | 160 |
| Low-Ferequency Puncture Voltage Average Oil immersion/KV | 160 | 185 | 180 | 200 |
| Dry Arcing Distance(mm) | 160 | 183 | 200 | 254 |
| Cantilever Failing Load(KN) | 13 | 13 | 13 | 13 |
| Weight(kg) | 0.6 | 0.85 | 0.91 | 1.1 |
| Qty(pcs)/Ctn | 18 | 9 | 9 | 9 |
| Qty(pcs)/20FT | 7560 | 3780 | 3780 | 3150 |
