ANSI C29 25kV Pin HDPE Insulator

Name: ANSI C29 25kV Pin HDPE Insulator
Brand: all-electronics-online.com
SKU: 760869705
Availability: InStock
Rating: 4.7 (67 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JHG-IP-25F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attribute:	Durable Quality
Application:	High-temperature
Structure:	Pin Insulator
Type:	B Type Insulator
Material:	HDPE
Size Of Bearing Capacity:	13kn
Color:	Grey
Brand:	Jslpower

Product Description

HDPE Insulator

1)ANSI C29 standard, ISO9001, test report

2)12Years' exporting & manufacture experience

3)Distributors in many countries

4)China manufacturer own factory

5)Low price

ANSI C29 25kv pin HDPE Insulator

Product Description

Benefits:

·Electrically compatible with covered conductors -no stripping

·Resistant to impact damage, breakage and vandalism

·Excellent weather washing characteristics

·Interchangeable with porcelain insulators

·Excellent weatherability proven by test

·Designed for use with hand wrapped ties or preshaped ties

·Light weight for easy handling
·Excellent for contaminated environments

ANSI C29 25kv pin HDPE Insulator

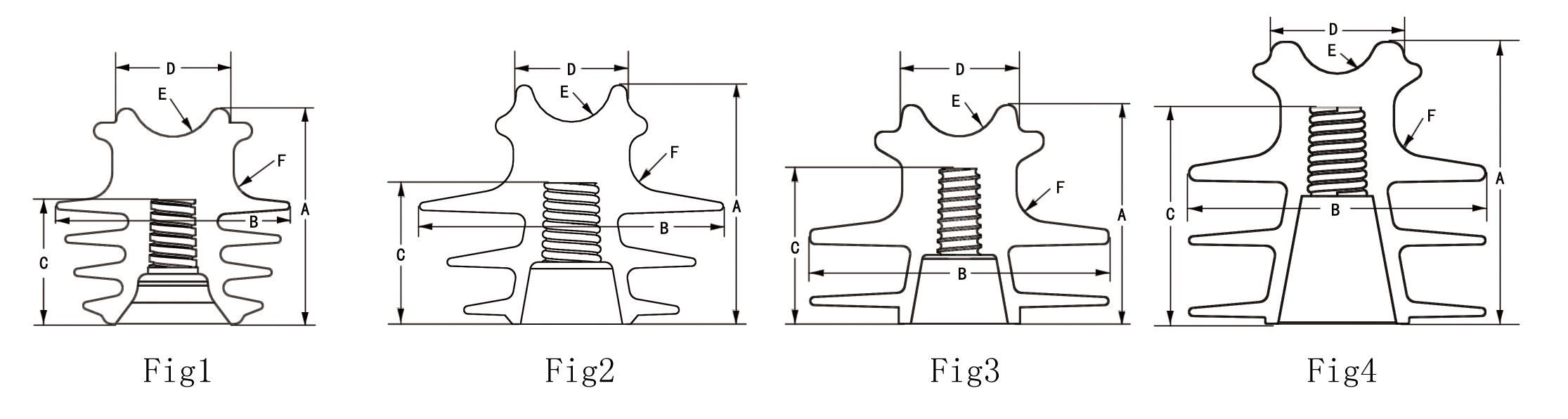

Main Dimensions and Standard Particulars
Fig		1	2	3	4
Catalog		JHG-IP-15F	JHG-IP-25F1	JHG-IP-25-F2	JHG-IP-35F
Class ANSI		ANSI 55-4	ANSI 55-5	ANSI 55-5	ANSI 55-6
Main Dimensions(mm)	A	129.5	150	140	181
	B	140	190	190	191
	C	88	99	100	140
	D	68	68	74	85
	E	25.4	25.4	25.4	25.4
	F	16	20	20	19
Nominal Voltage(kv)		15	25	25	35
Creepage Distance(mm)		370	390	370	508
Minimun Flashover Voltage	Dry/kv	75	89	85	110
Minimun Flashover Voltage	Pos/kv	110	141	130	160
Low-Ferequency Puncture Voltage Average Oil immersion/KV		160	185	180	200
Dry Arcing Distance(mm)		160	183	200	254
Cantilever Failing Load(KN)		13	13	13	13
Weight(kg)		0.6	0.85	0.91	1.1
Qty(pcs)/Ctn		18	9	9	9
Qty(pcs)/20FT		7560	3780	3780	3150

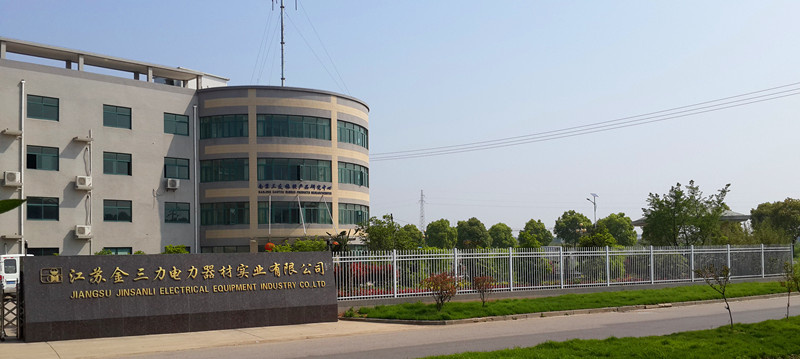

Jiangsu Jinsanli Power Equipment Industrial Co., Ltd.

(Nanjing Sanyou Rubber Products Research Center)

Company Profile
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd. is a scientific and technological enterprise of Jiangsu Province engaging in research, development, manufacture, processing and sale of electric power fittings,rubber insulator,hdpe insulator and so on.
Since its establishment, it has developed various rubber and plastic auxiliary products applicable to military, electrical engineering, smart power grids and hydraulic engineering fields. With excellent quality, products of the company are well received by various large and medium-sized enterprises. Technical personnel of the company has experience in taking refresher courses and learning manufacture and processing of rubber products in Japanese NOK company and has obtained technical grade certificates on rubber products manufacture and processing issued by Japan. The company mainly manufactures over 500KV super damping rubber spacer. Besides, through matching up with products of hardware fittings manufacturers of power industry, products of the company are widely applied to key electric power construction projects of China. Based on its existing production scale, the company expands rapidly through introducing lots of advanced equipment, which makes its production capacity can satisfy demand of various large-sized power enterprises on rubber dampers used for 500KV to 1000KV extra-high voltage transmission lines. With continuous improvement of technology, the company has manufactured insulator products used for 10KV to 220KV transmission lines and power transformation engineering and meeting ANSI standard by using advanced polymer technology. What's more, the company constantly improves product quality through technology innovation to standardize, refine, process and scientize the company, so that to further research, develop and manufacture more high-quality and rational-price products to meet demand of domestic and foreign enterprises.

Jiangsu Jinsanli Power Equipment Industrial Co., Ltd., specialized in Insulators, our company located in Nanjing, Jiangsu province, welcome to contact us for details!

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
