ANSI Outdoor Voltage Transformer Metering/Protection 36kv

Name: ANSI Outdoor Voltage Transformer Metering/Protection 36kv
Brand: all-electronics-online.com
SKU: 684969411
Availability: InStock
Rating: 4.4 (98 reviews)

Price:	US $ 590-600/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI Outdoor Voltage Transformer Metering/Protecti
Outdoor:	Double Pole
Grey:	Epoxy Resin
36kv:	Phase to Phase
Vt:	PT
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

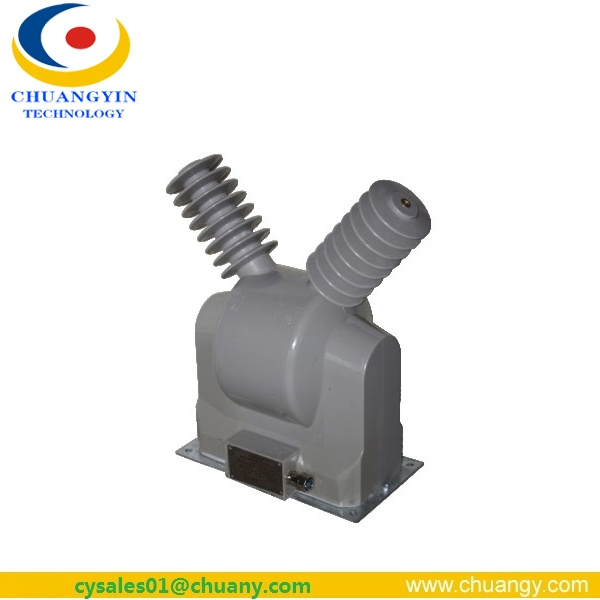

ANSI outdoor metering/protection voltage transformer medium voltage

36 kV, outdoor, 200 kV BIL, 60 Hz

JDZW2-36 voltage transformers (PT),

Epoxy resin casting and double pole insulated VT, is widely used for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50Hz or 60Hz and insulation voltage 36kV (up to 40.5kV)
The iron core adopts advanced cold-rolled silicone steel sheet, high voltage outgoing line of primary winding was fetched out from top of the product, outgoing line of secondary winding was fetched out from transverse side of the product, IEC61869-1&3

Main technical parameter
1. Rated primary voltage:30 kV or 33 kV or 35 kV etc.
2. Rated secondary voltage:100 V or 110 V
3. Rated power-frequency withstand voltage: 70kV
4. Rated lightning impulse withstand voltage: 170kV
5. Technical standard accords with IEC 60044-2.2003.
6. Other parameters pls see as follow:

Type	Rated Primary Voltage(kV)	Rated Secondary Voltage(kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZW2-36	35 33	0.1 0.11	0.2	60	1000	36/70/170 (40.5/95/200)
			0.5	120
			1	200
		0.1/0.1 0.11/0.11	0.2/0.2	25/25	500
			0.2/0.5	25/50
			0.5/0.5	50/50

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

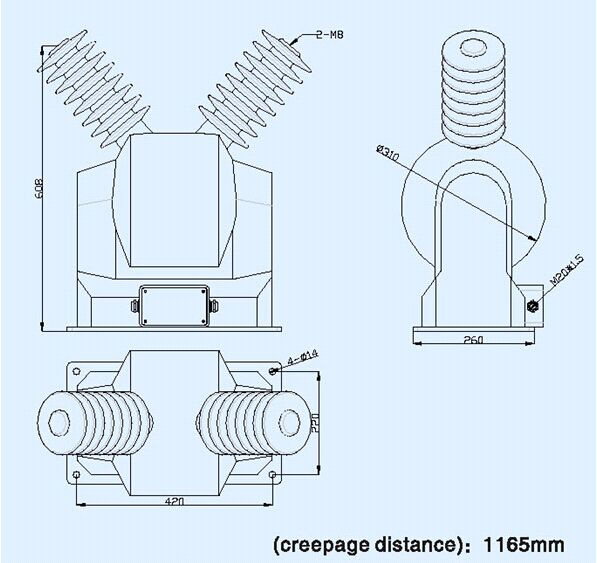

Outline drawing
