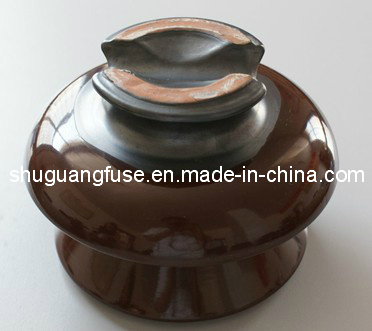

ANSI Pin Type Ceramic Electrical Insulators 56-3

Name: ANSI Pin Type Ceramic Electrical Insulators 56-3
Brand: all-electronics-online.com
SKU: 712044395
Availability: InStock
Rating: 4.7 (62 reviews)

Price:	US $ 6.1-10.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	56-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	35kv
Service:	OEM, ODM
Sample:	Available
Delivery:	as Required
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	A Type Insulator
Color:	Brown, White as Required

Product Description

High voltage porcelain pin type insulator56-3

Item No: 56-3

ANSI CLASS

1. Material: Porcelain

2. Pin type insulators are used for line transmission

3. Main Dimensions: Height 191mm; Diameter 267mm

4. Nominal voltage: 35kV

5. Creepage distance: 533mm

6. Power-frequency: Dry 125kV; Wet 80kV

7. Radio-influence voltage data:
Test voltage to ground: 30kV
Maximum RIV at 1000kHz: 200kV

8. Low-frequency puncture voltage average: 165kV

9. Dry arcing distance: 241.3mm

10. Cantilever failing load: 1360kN

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
