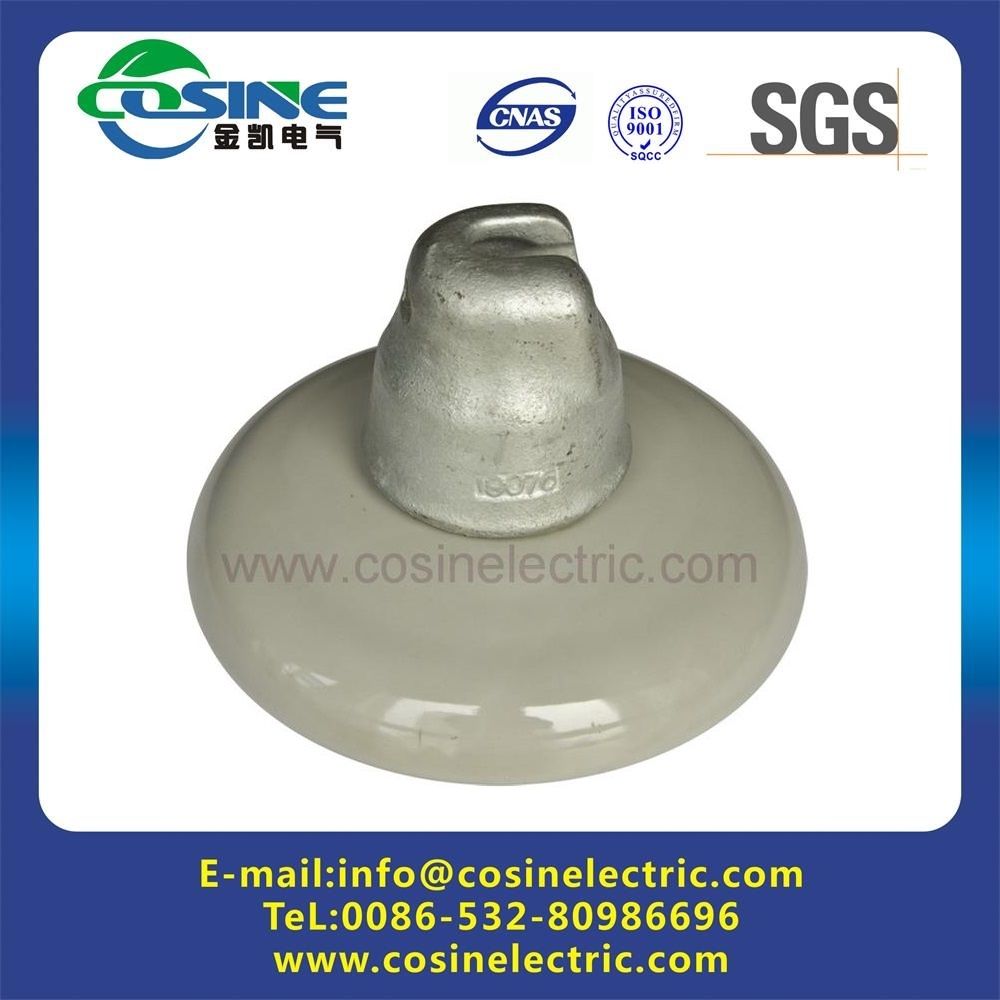

ANSI Socket and Ball Type Suspension Insulators

Name: ANSI Socket and Ball Type Suspension Insulators
Brand: all-electronics-online.com
SKU: 694283082
Availability: InStock
Rating: 4.3 (41 reviews)

Price:	US $ 4.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	52-3&52-5&52-8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Specification:	ANSI C29.2
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Certification:	ANSI
Color:	Brown or Light Gray

Product Description

52-3&52-5&52-8 are types of ANSI Socket&Ball type suspension insulators. QINGDAO COSINE is specialized in this field for over 10 years.
If you have any interest on suspension insulators, please contact me freely and we will make best price for you.

ANSI Class			52-3	52-5	52-8
Porcelain Disc Diameter,D,mm			254	254	280
Unit Spacing,H,mm			146	146	146
Creepage Distance, mm			292	292	305
Combined M & E Strength, KN			67	111	160
Impact Strength, Nm			6	7	10
Routine Proof Test Load, KN			33.5	55.5	80
Time Load Test Value, KN			44	67	107
Power Frequency Flashover Voltage		Dry, kv	80	80	80
Power Frequency Flashover Voltage		Wet, kv	50	50	50
Critical Impulse Flashover Voltage		Pos., kv	125	125	125
Critical Impulse Flashover Voltage		Neg., kv	130	130	130
Power Frequency Puncture Voltage,KV			110	110	110
Radio Influence Voltage Data	Test Voltage to Ground, kv		10	10	10
Radio Influence Voltage Data	Maximum RIV at 1000KHZ, μv		50	50	50
Net Weight, Each Approx., kg			4.6	5.5.	7.5

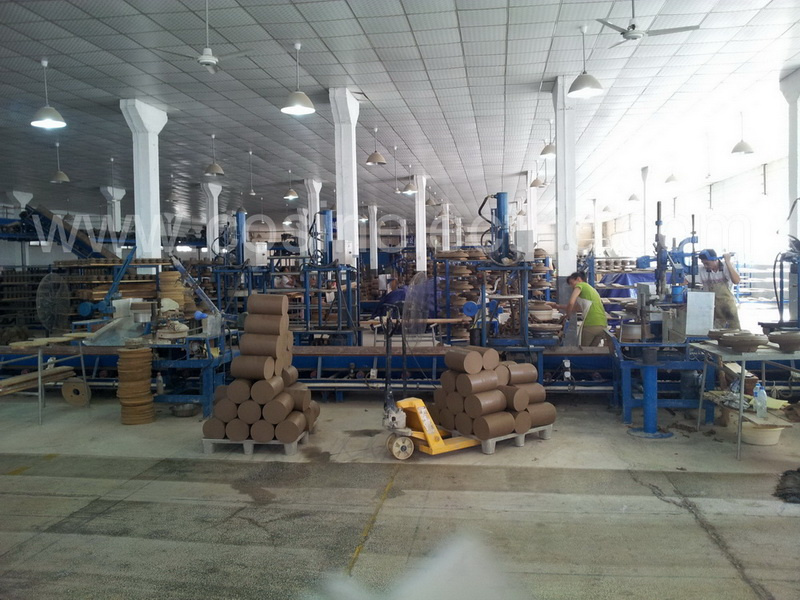

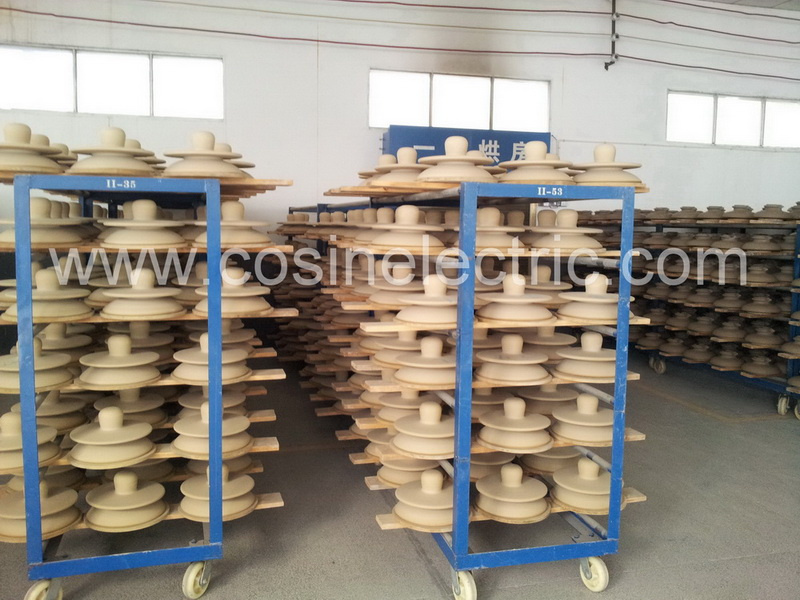

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

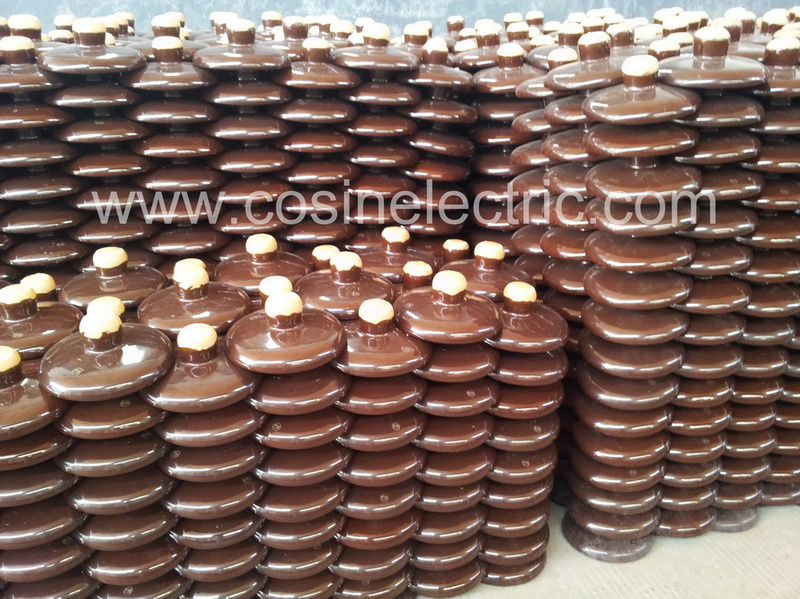

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
