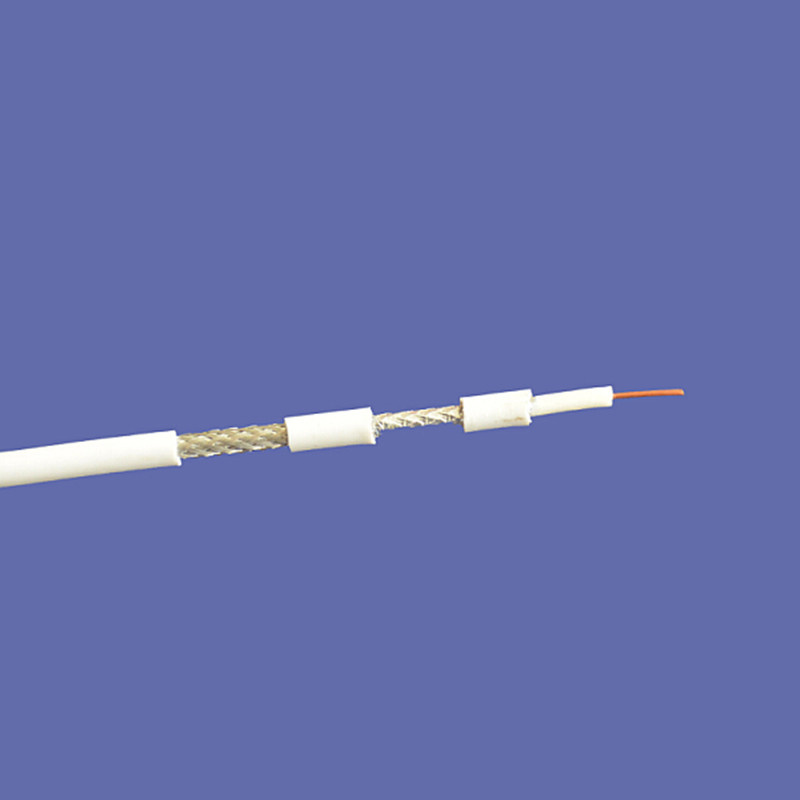

Antenna Cable / RF Coaxial Cable 3D-Fb

Name: Antenna Cable / RF Coaxial Cable 3D-Fb
Brand: all-electronics-online.com
SKU: 764795395
Availability: InStock
Rating: 4.7 (36 reviews)

Price:	US $ 0.01-1.5/Meter
Trade Terms:	FOB,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/CCS
Insulation:	Foam PE
Shield:	Al Foil+Tc Braid
Jacket:	PVC/PE/Lszh
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Bc/CCS
Cover Material:	PVC/PE/Lszh
Type:	Coaxial
Wire Core Material:	Bc/CCS

Product Description

Antenna Cable RF Coaxial cable 3D-FB
50 Ohm antenna cable RF coaxial cable desgined for cellphone signal booster, repeater.
Connectors: SMA, N, TNC....
Application
Mainly be used in 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system.

Features:
1).50 Ohm data signal transmission;
2).The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
3).Excellent performance in high frequency,VSWR stability;
4).Customized cable color , winding and connector, meet your different requirements;
5).RoHS compliant;

Coaxial Cable 3D-FB
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper or Copper Clad Steel		1.00
Dielectric	Foam PE		3.00
First Shield	Boned Aluminum Foil		3.20
Second Shield	Tinned Copper Braid		---
Jacket	PVC/PE/LSZH		5.40

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@100MHz	10.4
Velocity of Propagation(%)	81.0	@350MHz	19.5
Return Loss(dB)	≥20	@900MHz	31.8
VSWR(dB)	≤1.3	@1200MHz	37.2
Shielding Effectiveness(dB)	≥85	@1500MHz	41.5
Operating Temperature(ºC)	-25 to +70	@1800MHz	45.6
		@2500MHz	54.0

All our products are RoHS compliant.

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
