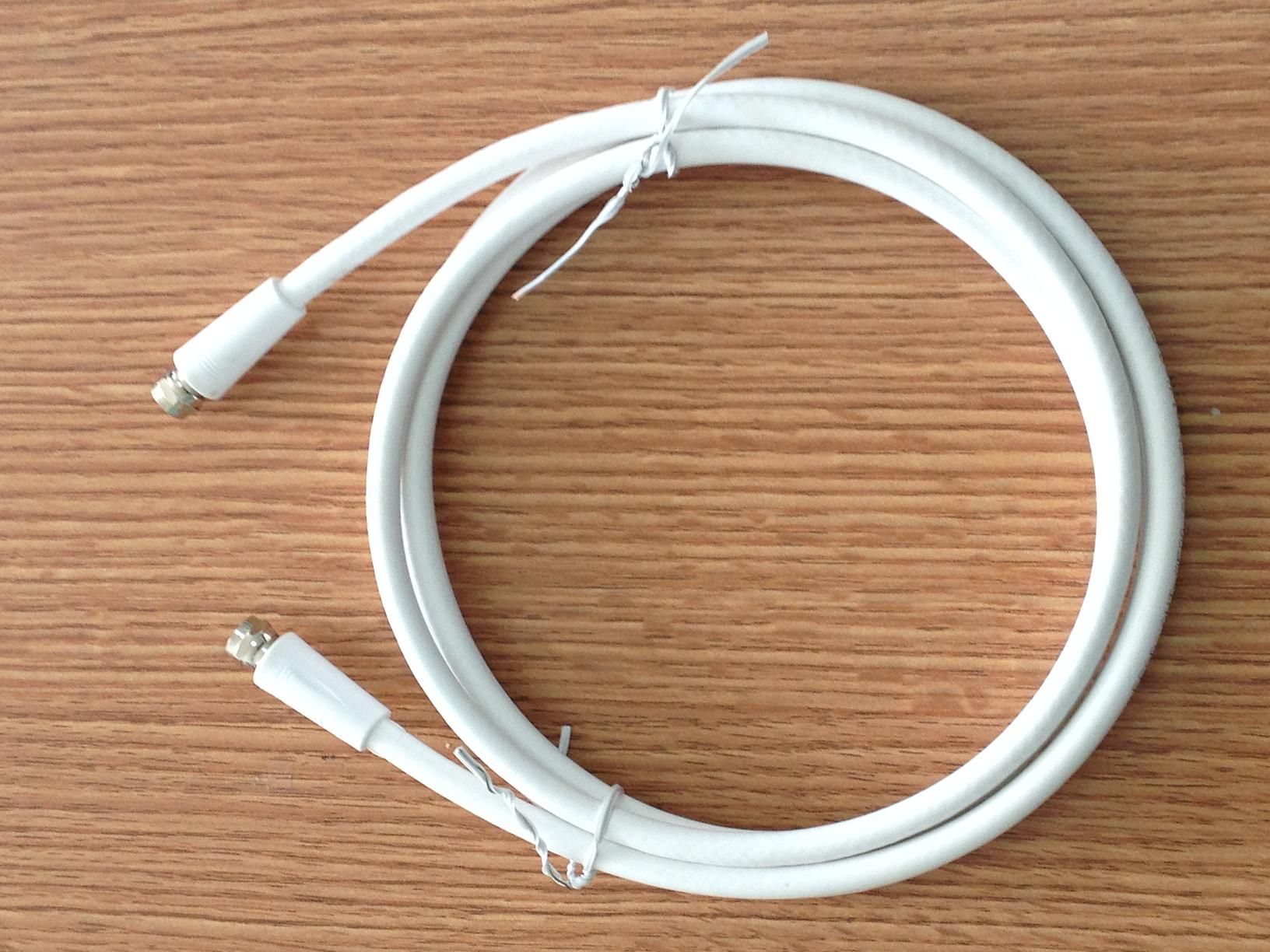

Antenna Cable with F Plug

Antenna Cable with F Plug
Price: US $ 10/Meter
Trade Terms: FOB
Min Order: 50000/Meter
Pay Type: L/C,T/T
Prod Model: Antenna cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Western Europe
Connector: F Type
Screening Attenuation: Class a+
Usage: Broadcasting Antenna
Operating Wavelength: Microwave
Material: Cu
Directionality: Directional Antenna
VSWR: 1.5~2

Product Description


      ANTENNA CABLE  Class  A+







Cable specification:
Materials
1.ConductorNominal O.D.:                0.813±0.01mm
 Material:                    Bare Copper
2.DielectricMaterial:                    PE
 Nominal O.D.:4.95±0.05mm
3. 1st shieldMaterial:Bonded Al/PET/AL Tape
4. 2nd shieldNominal O.D.:                  8*16*0.12±0.01mm
 Material:                    Bare Copper
5 .JacketNominal O.D.: 7.2±0.1mm
 Material:                    PVC
 Color:                    White
6. PrintingPer customer requirement
7. ConnectorF Plug, nickel plated


Electrical Characteristics

Screening Attenuation (dB)
   30-1000MHz: ≥95dB
  1000-2000MHz:≥85dB
  2000-3000MHz:≥75dB
  Transfer Impedance (mΩ/m)  <2.5 mΩ/m


Antenna Cable with F plug, conform to the screening attenuation of Class A+
Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
