Antenna Extension Cable 4D-Fb for Wilson Cell Phone Signal Booster

Name: Antenna Extension Cable 4D-Fb for Wilson Cell Phone Signal Booster
Brand: all-electronics-online.com
SKU: 781240785
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	US $ 0.01-1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	4D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
50 Ohm RF Coaxial Cable:	4D-Fb
Inner Conductor:	Bc/CCS
Insulation:	Foam PE
Shield:	Al Foil+Tc/Al-Mg Wire Braid
Jacket:	PVC/PE/LSZH
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial
Model:	4D-Fb
Brand:	Otto Cable

Product Description

Antenna Extension Cable 4D-FB for Wilson Cell Phone Signal Booster

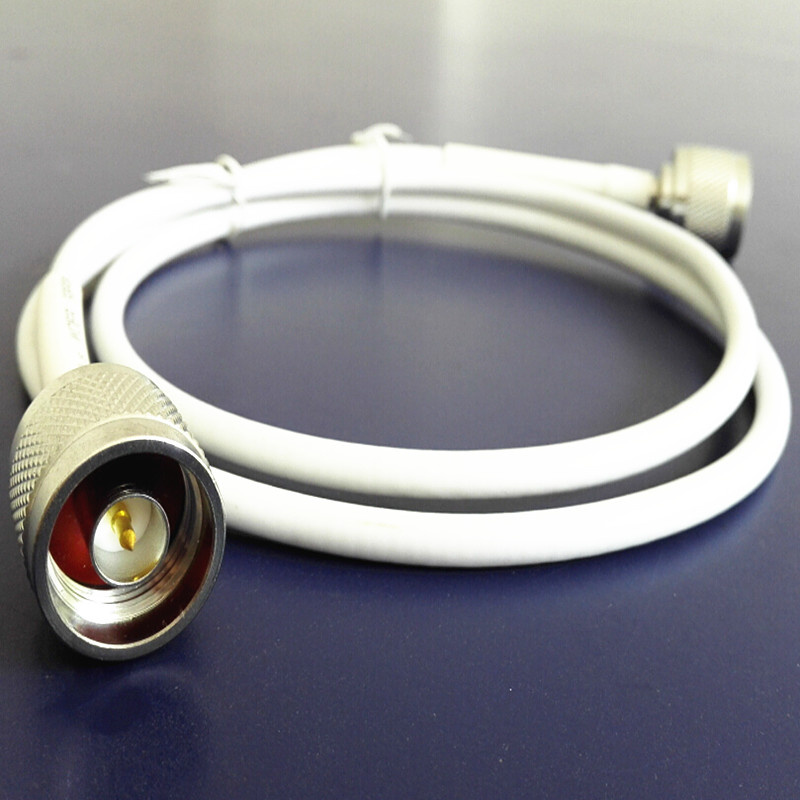

Coaxial Cable 4D-FB with N type connector, designed for cellphone signal booster / repeater, antennas.

4D-FB coaxial cable can also be fixed with SMA, N, BNC,TNC connectors, 4D-FB cable and its assemblies works very wellwith cellphone signal boosters, repeaters, antennas, also have already been widely applied to DAS,CDMA,GSM radio transmission,base radio antenna station and other communication systems.

Spec:

Connector Type: N male straight, nickle plated brass

Cable Length: 1M, 2M, 5M..... can be made as per customers requirements.
Features
1).50 Ohm data signal transmission;
2).The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
3).Excellent performance in high frequency,VSWR stability;
4).Similar to the LMR240 coaxial cable;
5).Customized cable color , winding and connector, meet your different requirements;
6).REACH & RoHS compliant;

Coaxial Cable 4D-FB
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper or Copper Clad Aluminum		1.42
Dielectric	Foam PE		3.81
First Shield	Bonded Aluminum Foil		3.94
Second Shield	Tinned Copper Braid/ Al-Mg Braid		4.40
Jacket	PVC/PE/LSZH		6.10

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@1500MHz	33.5
Velocity of Propagation(%)	82	@1800MHz	37.2
Return Loss(dB)	≥20	@1900MHz	37.9
VSWR(dB)	≤1.3	@2000MHz	38.7
Shielding Effectiveness(dB)	≥85	@2200MHz	40.5
Operating Temperature(ºC)	-25 to +70	@2500MHz	43.1
		@3000MHz	48.6

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
