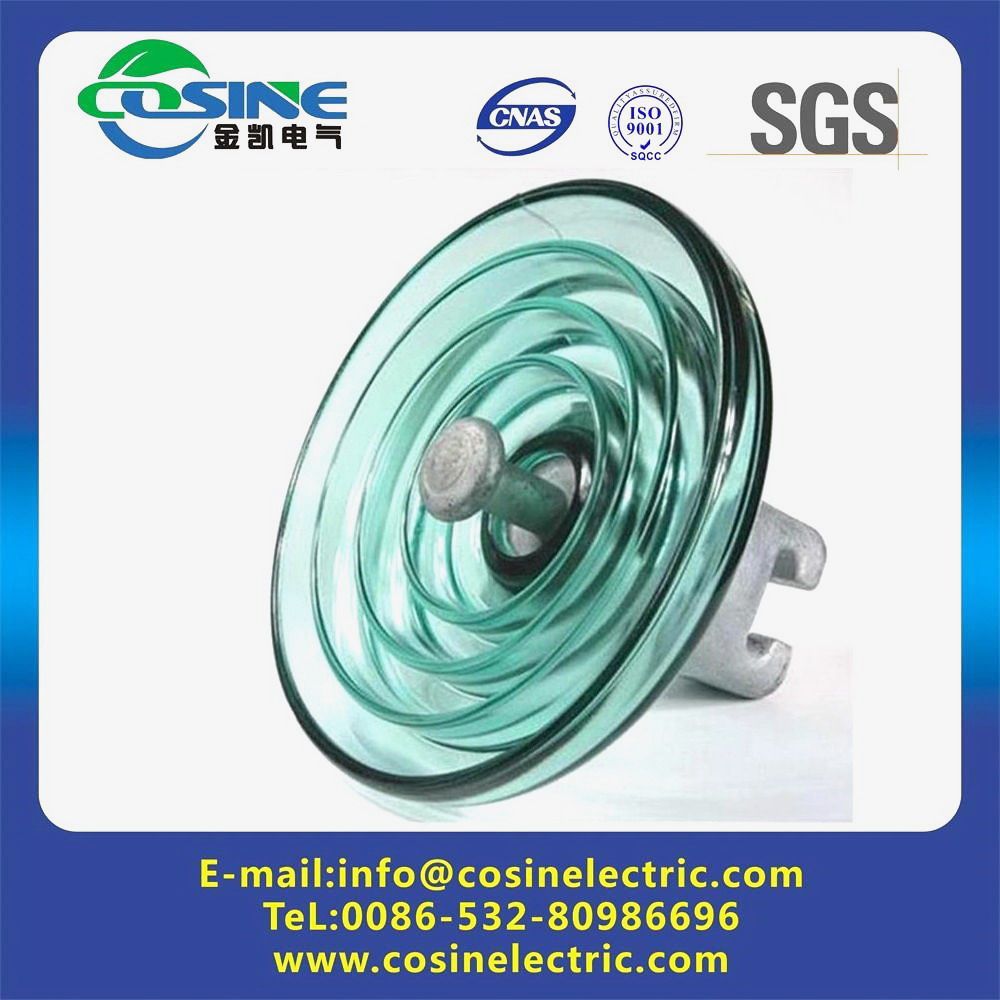

Anti-Fog Glass Insulator IEC 383 Standard Approved

Name: Anti-Fog Glass Insulator IEC 383 Standard Approved
Brand: all-electronics-online.com
SKU: 684599392
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 3-3.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	U70BP, U120BP, U160BP, U210BP, U240BP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Anti-Fog Toughened Glass Insulator:	Approved Standard: IEC383 Standard
Application:	High-voltage
Structure:	Suspension Insulator
Type:	A Type Insulator
Material:	Anti-Fog Toughened Glass Insulaotr
Color:	Light Green
Brand:	Cie or OEM

Product Description

1. Name: Anti-fog Toughened Glass Insulator From U70BP to U300BP

2. Standard of the Glass Insulator: IEC & ANSI &BS standard

3. Mechanical strength range of the anti-fog Glass Insulator: From 70KN to 550KN

4. Package of the Glass Insulator: 6Pcs in one ply-wood case or by customer's requirements.

5. Technical Data of glass insulator are as below:

6. Press moulding machine

7. Assembling Process

IEC Standard insulators	U70BLP	U120BP	U160BP	U160BLP	U210BLP	U240BLP	U300BP
Designation	LXWP5-70	LXWP4-120	LXWP7-160	LXWP5-160	LXWP3-210	LXWP3-240	LXWP-300
( mm ) Diameter D	280	280	550	550	550	550	550
( mm ) Spacing H	146	146	146	170	170	170	195
( mm ) Creepage L	450	450	320	320	320	320	340
( mm ) Ball and Socket soupling	16	16	20	20	20	24	24
( kN ) Mechanical failing load	70	120	160	160	210	240	300
( kN ) Mechanical routine test	35	60	80	80	105	120	150
( kV ) Wet power frequency withstand voltage	50	50	55	55	55	55	55
( kV ) Dry lightning impulse withstand voltage	125	125	140	140	140	140	140
( P.U ) Impulse puncture voltage	2.8	2.8	2.8	2.8	2.8	2.8	2.8
( kV ) Power frequency puncture voltage	130	130	130	130	130	130	130
( µV ) Rodio influence voltage	50	50	50	50	50	50	50
( kV ) Corona visual test	18/22	18/22	18/22	18/22	18/22	18/22	18/22
Power frequency electric arc voltage	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA
( kg ) Net weight per unit	5.5	5.5	8.8	9.2	9.2	9.6	12.5

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
