| Prod Model: |
VT1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| RFID: |
Active & Passive RFID |
| CPU: |
Arm 7 High Speed Processor |
| Two Way Location: |
GSM + GPS Mode |
| Two Way Communication: |
Microphone & Speaker |
| GSM Frequency: |
850/900/1800/1900MHz |
| Check Car Door Status: |
Yes |
| Speeding Alarm: |
Yes |
| Detect Air Condition: |
Support |
| Harsh Breaking Alarm: |
Support |
Product Description
Anti GSM jamming Active RFID arm disarm GPS tracker with Two Way Communication(2 years warranty, Free Tracking Platfrom (web base & Android),CE & RoHS & SGS certification)

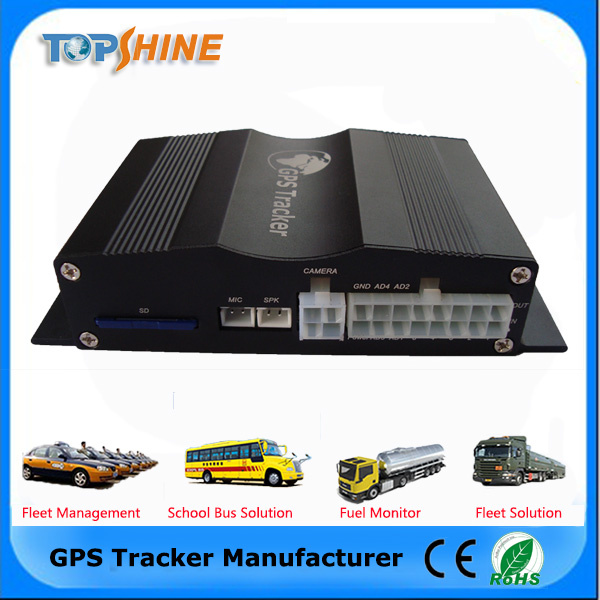

Products Overview Anti jamming RFID tracker VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM7 high speedy microprocessor; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.
Features
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Get position location via call/SMS
* Engine on/off detection
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Door open/close status detecting/ control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
Alert & Optional Functions
* Over speed alert
* Geo-fence alert
* Door open alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Harsh braking and harsh acceleration alert
* Suddenly acceleration/brake alert
* Accident Alarm (optional)
* Two way communication (Listen & Speak, need speaker support) (optional)
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* Support max 64G SD card store (optional)
* Photo with location & driving information log function (need camera support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions
(movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor
manage (optional)
Application
* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
* Anti jamming
* 2G 3G 4G tracker
Specification
| Technical Parameters: |
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |

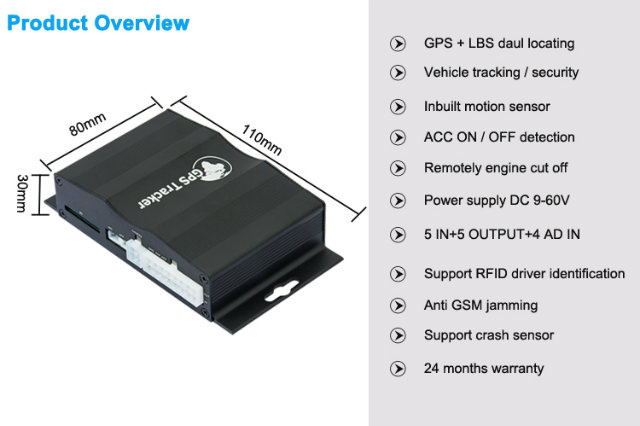

| Dimension | 104mm x 62mm x 24mm |
| Installation Dimension | 104mm x 83mm x 24mm |
| Weight | 150g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| 2G GSM Frequency | 850/900/1800/1900Mhz |
| 3G GSM Frequency | Version A: UMTS/HSDPA 850/1900MHz
Version E: UMTS/HSDPA 900/2100MHz
Version T: UMTS/HSDPA 850/2100MHz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering;
2 analog inputs; 5 outputs. |
Package & Accessories

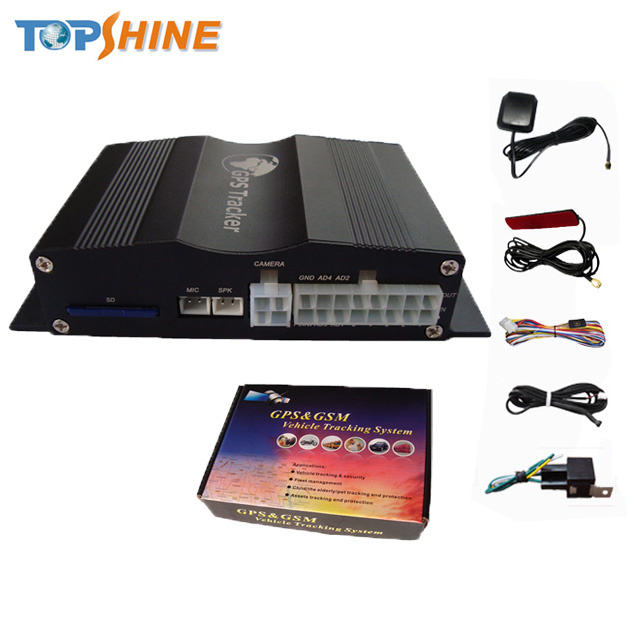

Standard accessories
* Main unit VT1000
* GSM antenna
* GPS antenna
* 16PIN Wiring
* SOS button
* 12V /24V Relay

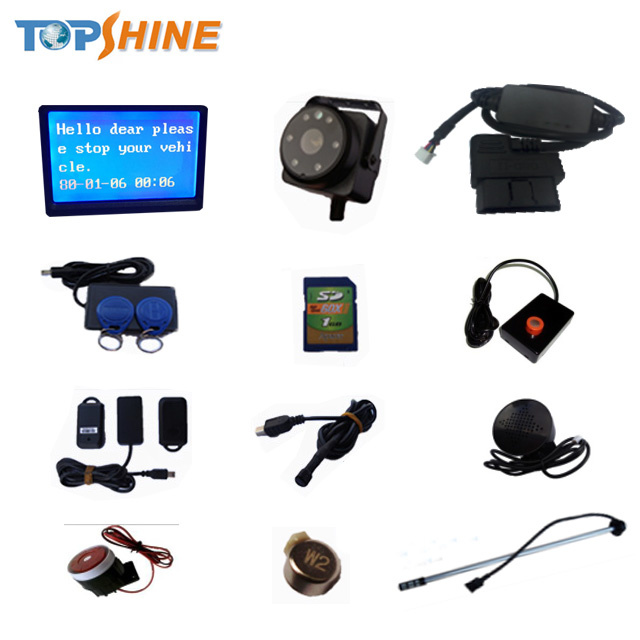

Optional accessories
* Camera
* Ultrasonic fuel sensor
* Cuttable fuel sensor
* Temperature sensor
* Passive RFID kit
* SD card
* Crash sensor
* Smart phone reader
* OBDII connector
* Door sensor
* Alcohol Sensor | Packing Measures: |
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.65 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |

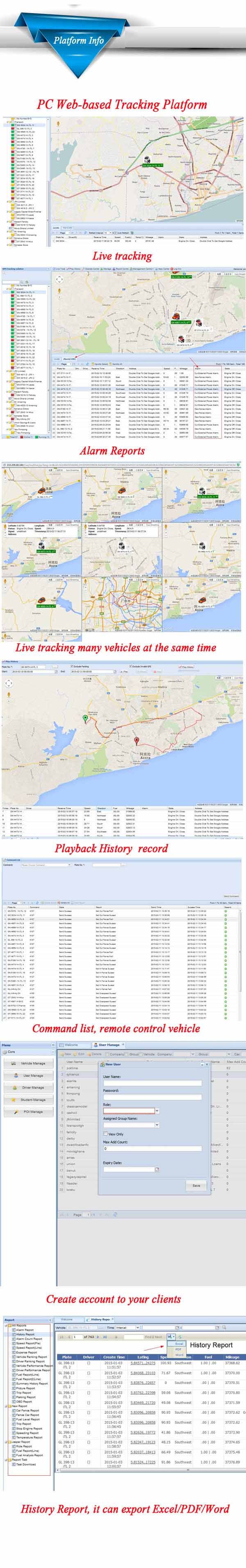

GPRS01 SMS tracking system platformTopshine company provide free tracking software, no any monthly or yearly charge.
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our services:
- Any inquiries will be replied within 12 hours on workday
- Professional manuafacurer and wholesaler for 8 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idear
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- You can pay for the order via: T/T , Western Union and Paypal
Topshine Advanced Solutions
It is welcome to help you customize a pecial product with your company advantage and unique.
Just keep us posted with your new ideas, our high experienced engineers will try their best to help you achieve.
Fuel tracking solution: Monitor the fuel tank / capacity with SMS / GPRS alert.
Driver behavior management solution: harsh accelerate or braking, drive for private purposes, fuel stealing, idle alarm, task scheduling, etc.
FAQ
Q: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
2. Charge the tracker.
Q: No response to SMS command
A: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.
Q: Why there is a "Last" appearing in a positon report SMS?
A: There is no GPS signal. Please take the tracker to somewhere open area.
Q: How to use tracking platform?
A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W,010,ID
(2) Set APN: W,011,APN name
(3) Set IP and Port: W,012,210.209.68,9600
(4) Enable GPRS: W,013,1
(5) Set report time interval: W,014,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle Manage
Q: How to connect Relay to cut off engine?
A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
