Anti High Temperature Resistant Pressure Transmitter (PCM300T)

Name: Anti High Temperature Resistant Pressure Transmitter (PCM300T)
Brand: all-electronics-online.com
SKU: 732882722
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM300T
Pressure Reference:	Gauge Absolute Sealed Gauge
Overpressure:	200%F.S.
Output:	4-20mA 0.5-4.5V 1-5V 0-5V 0-10V
Supply:	24VDC 12VDC
Operating Temp.:	-40ºC - 125ºC
Medium Temp.:	-20ºC - 150ºC -20ºC - 300ºC
Temp. Drift:	±1.5%F.S.Max.(@-20ºC - 85ºC)
Ex-Proof:	Exia II CT6
Housing Material:	304
Diaphragm Material:	316L
Accuracy Grade:	±0.5%F.S.
Pressure Range:	-100kpa...0~10kpa...100MPa

Product Description

316L stainless steel isolation diaphragm structure
Imported high temperature resistant chip
Wide range of applicable medium temperature
Strong anti-interference ability and long-term stability
Direct contact for measurement of high temperature medium, improving pressure response frequency
Rich pressure ranges provided, including low, medium and high pressure ranges
Anti-vibration, shock resistant and corrosion resistant

PCM300T High Temperature Pressure Transmitter uses high temperature resistant pressure sensor as the signal measuring element. The pressure of measured medium is transmitted to the sensor through heat dissipation structure. The high precision signal processing circuit is located inside the stainless steel shell, converting the output signal of the sensor to standard output signal. The product has passed rigorous tests and aging screening of the components, semi-finished products and finished products. The performance is stable and reliable, enabling long-term stability when used in the pressure measurement of high temperature medium.

Pressure range
Pressure range	-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	200%F.S.
Output signal
Output	4 to 20mA \| 0.5 to 4.5V \| 1 to 5V \| 0 to 5V \| 0 to 10V
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S.
Supply	24VDC \| 12VDC
Operating temp.	-40ºC - 125ºC
Medium temp.	-20ºC - 150ºC \| -20ºC - 300ºC
Storage temp.	-40ºC - 125ºC
Zero temp. coefficient	±1.5%F.S.max.(@-20ºC - 85ºC)
Span temp. coefficient	±1.5%F.S.max.(@-20ºC - 85ºC)
Pressure connection	See "how to order"
Mechanical vibration	20g(20 to 5000Hz)
Shock	100g(11ms)
Insulation	100MΩ/250VDC
Response time	≤1ms(up to 90%FS)
Long term stability	≤0.2%F.S.S/year
Protection	IP65
Ex-proof	EXIA II CT6
Material	Stainless steel for shell, 316L for isolation diaphragm
Medium compatibility	Various liquids or gases compatible with the isolation diaphragm

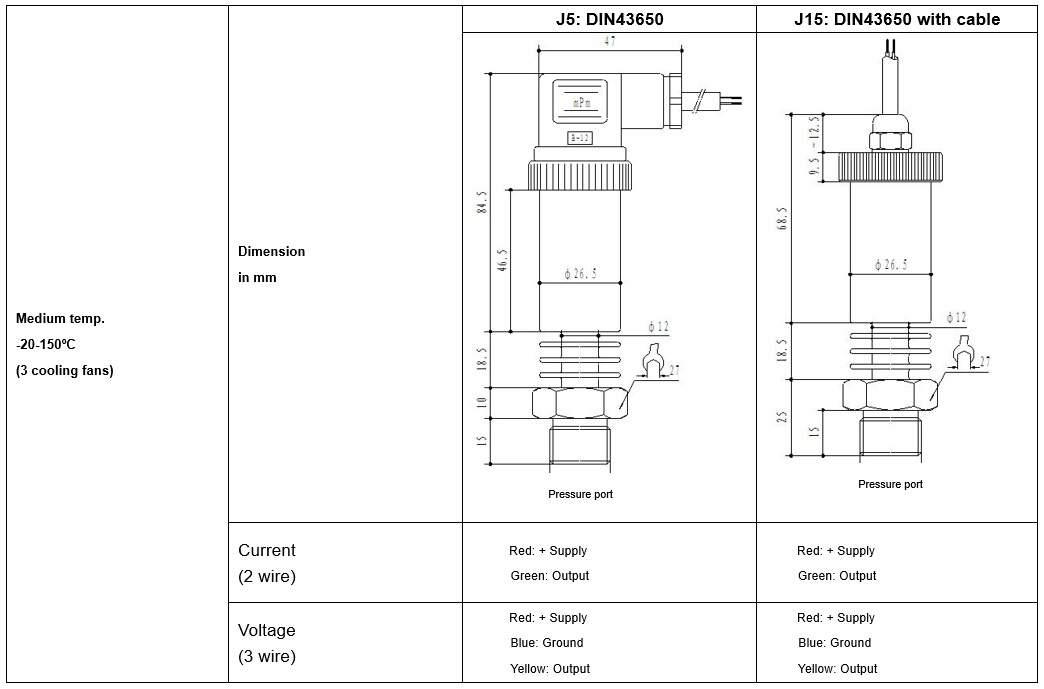

Electrical connection

How to order
